86" Industrial Grade uUltra High Brightness Strip Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

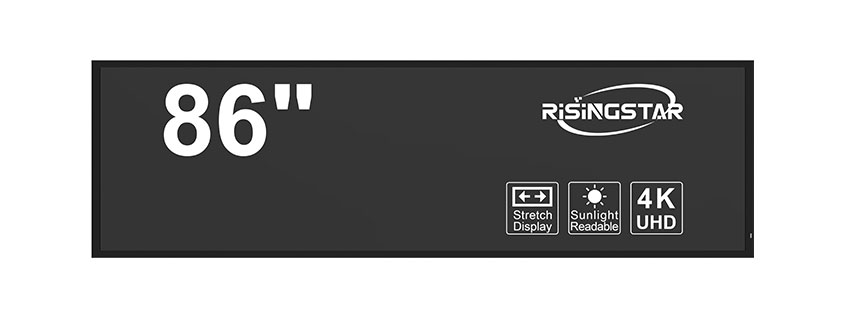

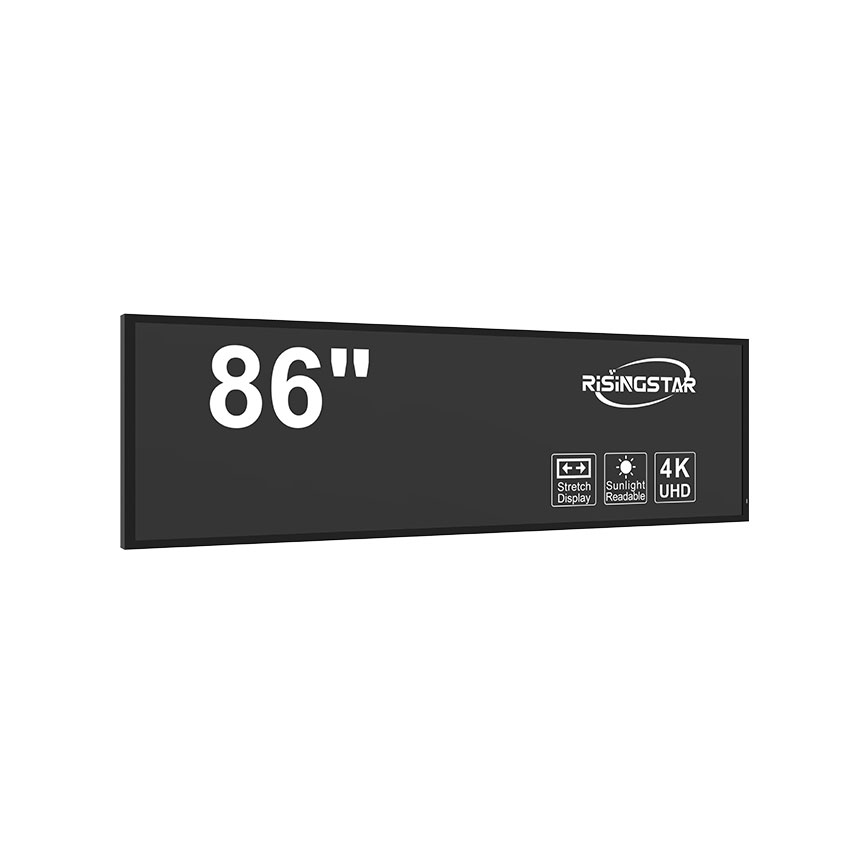

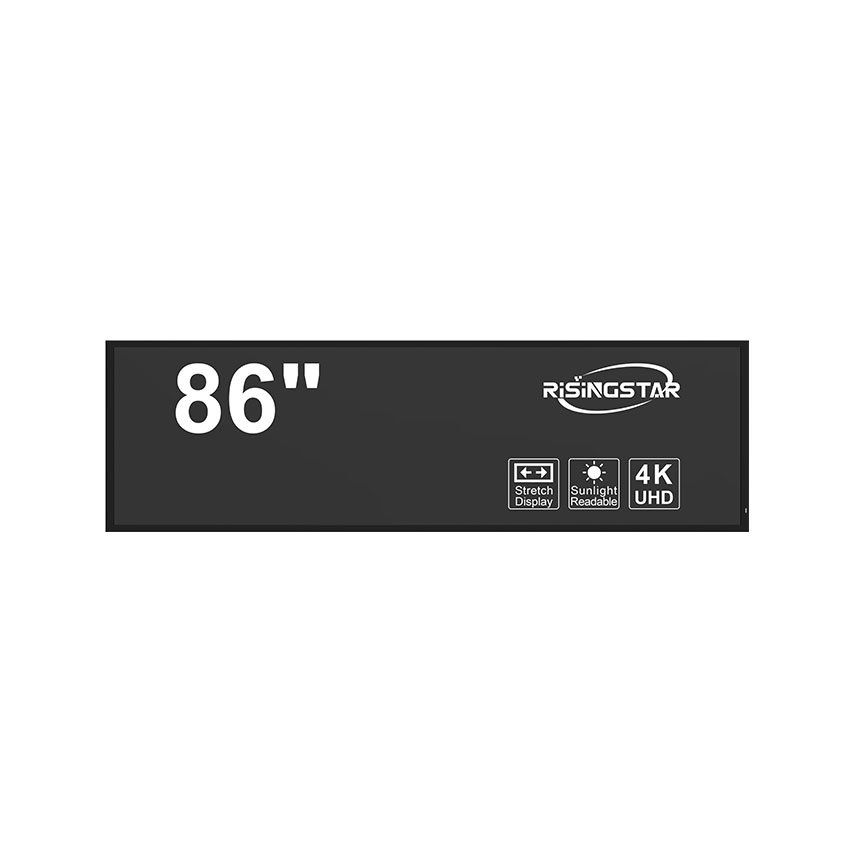

RisingStar 86-inch Ultra High Brightness Bar LCD Panel
| Item | Specification |
|---|---|
| Panel Size | 86 inch (Native Bar Display) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB) × 600, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 2148.48(W) × 335.7(H) mm |
| Open Area | 2149.5(W) × 336.7(H) mm |
| Surface Treatment | Anti-glare (Haze 10%), Hard Coating (3H) |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 1100:1 (Typ., Transmissive) |
| Recommended Viewing Angle | All-view |
| Response Time | 8 ms (Typ., G to G) |
| Viewing Angle (CR ≥10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | IPS, Normally Black, Transmissive |
| Supported Color | 1.07B, 98% sRGB |
| Backlight Type | WLED, 50,000 hours, Integrated LED Driver |
| Weight | 15.04 kg (Typ.) |
| Frame Rate | 60Hz |
| Enhanced Modes | 120Hz (with MEMC), 120Hz+120Hz (Panel+Backlight), 240Hz (with MEMC) |
| Touch Technology | No Touch |
| Interface | 51-pin V-by-One, 8-lane, Terminal |
| Power Supply | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Applications | Digital Signage, Outdoor High-Brightness Display, Bar-type Cutting Display |
Product Description
The RisingStar 86-inch ultra-wide bar-type LCD panel is engineered for industrial-grade outdoor and commercial digital signage. Featuring a native bar format with 3840×600 resolution, high-brightness performance up to 5000 nits, and a robust a-Si TFT-LCD structure, this display ensures excellent visibility under direct sunlight. The IPS “normally-black” mode delivers wide viewing angles of 89/89/89/89, while the anti-glare surface treatment enhances readability in bright environments.
Designed for long-term operation, the integrated WLED backlight offers 50,000 hours of lifetime with low power consumption. The panel also supports advanced motion enhancement modes, including 120Hz and 240Hz MEMC, ideal for smooth playback in dynamic signage applications.
With its wide operating temperature range (-20 ~ 70 °C), lightweight structure, and V-by-One high-speed interface, this 86-inch bar LCD panel is suitable for outdoor kiosks, transportation hubs, retail storefronts, EV charging stations, and premium digital signage systems.
Application Scenarios (English)
Outdoor High-Brightness Digital Signage
Perfect for storefront ads, street billboards, and sunlight-readable outdoor totems.Transportation Passenger Information Display
Suitable for railways, subways, buses, and airport wayfinding systems.EV Charging Station Displays
Delivers clear content under strong sunlight with industrial reliability.Retail / Shopping Mall Digital Signage
Ultra-wide aspect ratio fits panoramic banner-style commercial advertising.Industrial Control & Public Information Systems
Durable and stable under harsh environments with wide temperature tolerance.
RisingStar 86-inch Ultra High Brightness Bar LCD Panel
Reformatted Specification Table (Excel Style)
| Item | Specification |
|---|---|
| Panel Size | 86 inch (Native Bar Display) |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB) × 600, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 2148.48(W) × 335.7(H) mm |
| Open Area | 2149.5(W) × 336.7(H) mm |
| Surface Treatment | Anti-glare (Haze 10%), Hard Coating (3H) |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 1100:1 (Typ., Transmissive) |
| Recommended Viewing Angle | All-view |
| Response Time | 8 ms (Typ., G to G) |
| Viewing Angle (CR ≥10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | IPS, Normally Black, Transmissive |
| Supported Color | 1.07B, 98% sRGB |
| Backlight Type | WLED, 50,000 hours, Integrated LED Driver |
| Weight | 15.04 kg (Typ.) |
| Frame Rate | 60Hz |
| Enhanced Modes | 120Hz (with MEMC), 120Hz+120Hz (Panel+Backlight), 240Hz (with MEMC) |
| Touch Technology | No Touch |
| Interface | 51-pin V-by-One, 8-lane, Terminal |
| Power Supply | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Applications | Digital Signage, Outdoor High-Brightness Display, Bar-type Cutting Display |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
