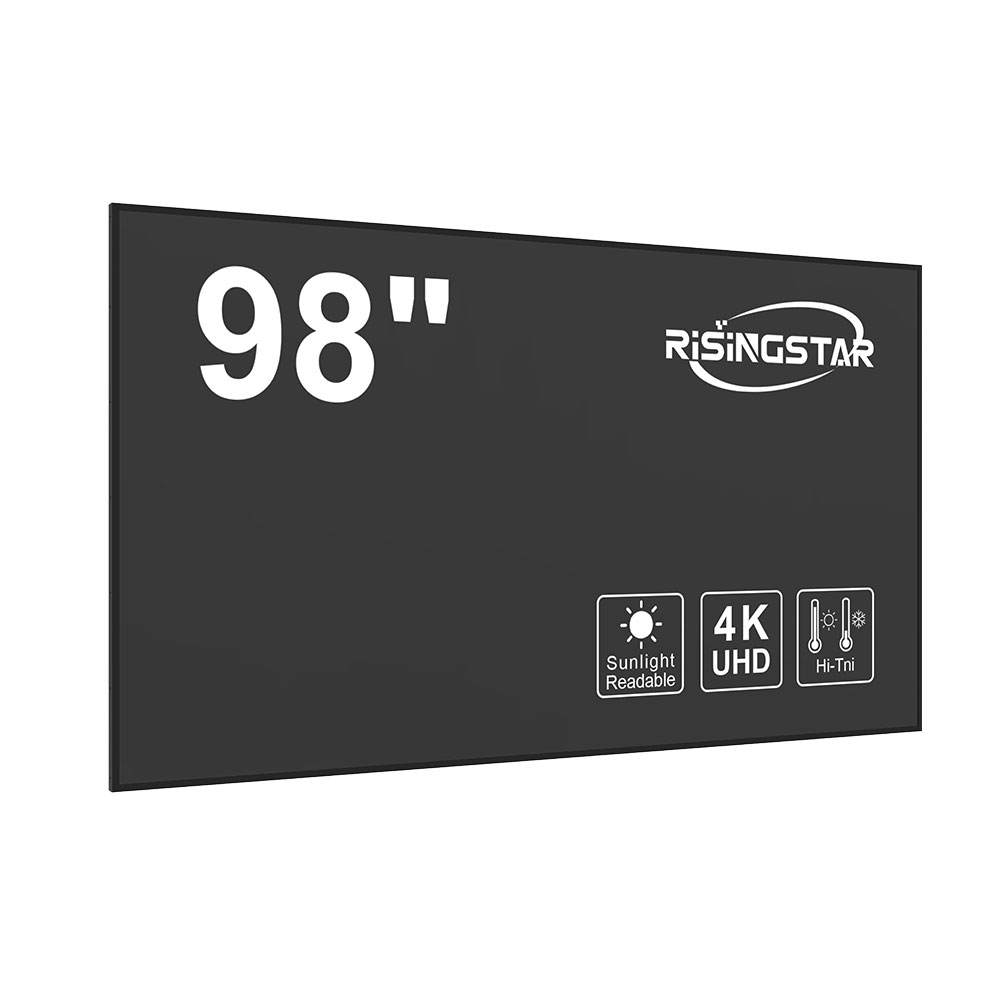

RisingStar’s 98-inch outdoor sunlight readable LCD display is engineered for ultra-large digital signage applications where size, clarity, and reliability matter. Featuring a UHD resolution of 3840×2160 with 45PPI pixel density, this a-Si TFT-LCD panel delivers stunning visuals with true color accuracy, supported by a 72% NTSC color gamut and 1.06 billion displayable colors.
Built with advanced S-IPS technology and a wide 89° viewing angle in all directions, the display ensures consistent image quality from any perspective. Its surface is treated with a 1% haze anti-glare finish and a durable 3H hard coating, making it suitable for bright, semi-outdoor to sheltered outdoor environments.
With a typical brightness of 500 cd/m², contrast ratio of 1300:1, and high refresh rate of 120Hz (with built-in MEMC for enhanced motion), the display offers smooth, vivid playback even in challenging lighting conditions. The integrated WLED backlight provides up to 50,000 hours of lifespan, while the robust structure supports stable operation in temperatures from 0 to 50°C.
This industrial-grade panel features a 97-pin V-by-One 16-lane interface and 12V power supply, and is ideally suited for large-scale public display, commercial digital signage, transportation terminals, and high-end outdoor advertising scenarios. With a slim profile and reliable performance, RisingStar delivers display solutions built for impact.
98-inch sunlight readable display use case
| Specification | Details |
|---|---|
| Panel Size | 98 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160 (UHD), 45 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 2158.85(W) × 1214.35(H) mm |
| Outline Dimensions | 2187.8(W) × 1242.8(H) × 68.6(D) mm |
| Bezel Open Area | 2162.0(W) × 1217.0(H) mm |
| Surface Treatment | Anti-glare (Haze 1%), Hard Coating (3H) |
| Brightness | 1000 to 5000nits |
| Contrast Ratio | 1300:1 (Typical, Transmissive) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (Left / Right / Up / Down) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Response Time | 8 ms (Typical, G to G) |
| Display Colors | 1.06 Billion (10-bit), 72% NTSC |
| Backlight Type | WLED with LED Driver, 50,000 hours lifespan |
| Refresh Rate | 120Hz (MEMC supported), 240Hz available |
| Touch Function | No Touch |
| Panel Weight | 56.0 / 59.0 kg (Typical / Max) |
| Signal Interface | V-by-One, 16 lanes, 97 pins |
| Power Supply | 12.0V (Typical) |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 55°C |
| Application | Outdoor Digital Signage, Public Displays |
| Specification | Details |
|---|---|
| Panel Size | 98 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160 (UHD), 45 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 2158.85(W) × 1214.35(H) mm |
| Outline Dimensions | 2187.8(W) × 1242.8(H) × 68.6(D) mm |
| Bezel Open Area | 2162.0(W) × 1217.0(H) mm |
| Surface Treatment | Anti-glare (Haze 1%), Hard Coating (3H) |
| Brightness | 1000 to 5000nits |
| Contrast Ratio | 1300:1 (Typical, Transmissive) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (Left / Right / Up / Down) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Response Time | 8 ms (Typical, G to G) |
| Display Colors | 1.06 Billion (10-bit), 72% NTSC |
| Backlight Type | WLED with LED Driver, 50,000 hours lifespan |
| Refresh Rate | 120Hz (MEMC supported), 240Hz available |
| Touch Function | No Touch |
| Panel Weight | 56.0 / 59.0 kg (Typical / Max) |
| Signal Interface | V-by-One, 16 lanes, 97 pins |
| Power Supply | 12.0V (Typical) |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 55°C |
| Application | Outdoor Digital Signage, Public Displays |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
