    27"Scooter/Trike Digital Ad Screen Solution
    • 27"Scooter/Trike Digital Ad Screen Solution
    • 27"Scooter/Trike Digital Ad Screen Solution

    27"Scooter/Trike Digital Ad Screen Solution

    Brand:

    AUO

    Model name:

    G270HAN01.0

    Screen size:

    27"

    Screen type:

    LCD Monitor

    Resolution:

    1920(RGB)×1920

    Brightness (cd/m²):

    700-2500

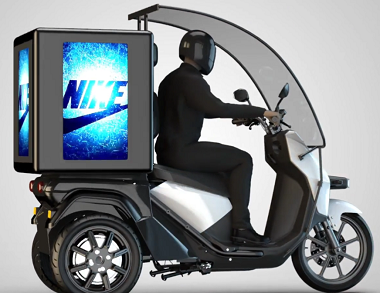

    27-inch outdoor mobile digital advertising, Scooter/Trike Digital Ad Screen Solution, adopts AUO LCD panel, high-brightness LED backlight, LCD module adopts all-aluminum structure, lighter weight, more efficient heat dissipation, screen resolution: 1920*1080 , Brightness: 2500 cd/㎡, clear and readable in sunlight, suitable for Android system/Raspberry Pi/window. Support: 5G/4G/wifi/RF communication.


    Hot Tags: 27"Scooter/Trike Digital Ad Screen Solution, manufacturers, suppliers, factory, Customized

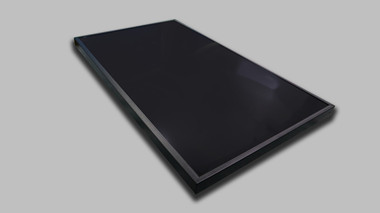

    Manufacturer:       AUO                                            Model Name:  G270HAN01.0

    Screen Size:          27.0 inch                                    Screen Type:      LCM,   a-Si TFT-LCD

    Pixel Number:      1920(RGB)×1080   (FHD)81PPI  Arrangement:    RGB Vertical Stripe

    Active Area(mm):  597.888 × 336.312 (H×V)          Outline(mm):      630 × 368.2 × 23.4 (H×V×D)

    Bezel Area(mm):   602 × 340.4 (H×V)                     Treatment:         Antiglare

    Luminance:          1000 cd/m² (Typ.)                       Contrast Ratio:  1000 : 1 (Typ.) (TM)

    Viewing Angle:     89/89/89/89 (Typ.)(CR≥10)        Response:          14 (Typ.)(Tr+Td) ms

    Good View at:         Symmetry                                  Work Mode:       AHVA, Normally Black, Transmissive

    Color Depth:           1.07B   87% NTSC                     Backlight:           WLED , 50K hours , With LED Driver

    Mass:                      3.40Kgs (Typ.)                            Used for:            Industrial Outdoor High Brightness

    Refresh Rate:           60Hz                                         Touchscreen:      Without

    Signal Type:             LVDS , Connector 51 pins

    Voltage Supply:      12.0V (Typ.)

    Max. RatingsStorage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
