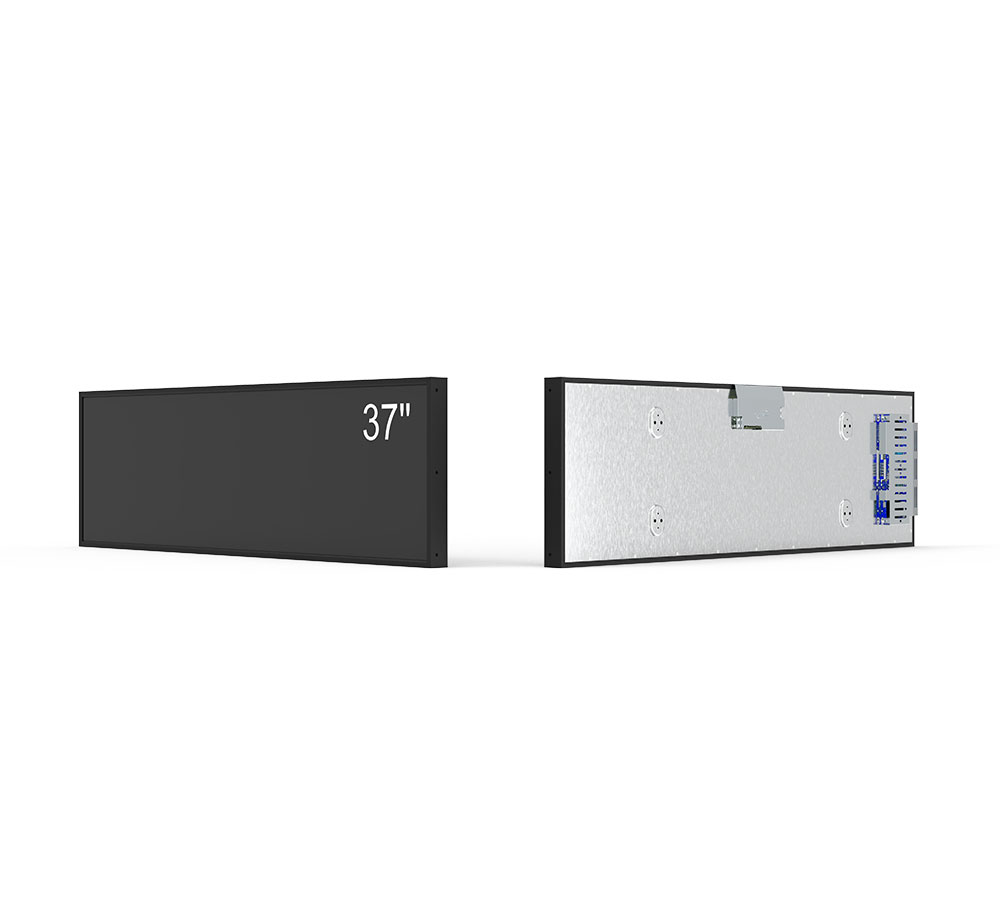

37 inch stretched LCD digital signage for public transport station
| Brand | Risingstar |
| Model name | P370IVN02 |
| Screen size | 37" |
| Screen type | Stretched LCD Monitor |
| Resolution | 1920 (RGB) × 540 (54 PPI) |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
Optimize space and visibility with the RisingStar 37-inch stretched LCD display, designed specifically for digital signage applications in public transport stations. Featuring a native bar-type a-Si TFT-LCD panel with a resolution of 1920×540 and a wide viewing angle of 89°/89°/89°/89°, this display delivers crystal-clear content from any direction. The ADS technology ensures consistent color and brightness with a typical contrast ratio of 1000:1 and 700 cd/m² brightness, making it ideal for well-lit environments like train platforms, metro stations, and bus terminals.
With a rugged design and 50,000-hour WLED backlight, the display operates reliably in ambient temperatures from -20 ~ 70 °C. The hard-coated, anti-glare (25% haze) surface enhances readability, even under overhead lighting or indirect sunlight. Supporting 16.7M colors at 72% NTSC, this 37" screen brings vibrant visuals to your transit communications. Its slim profile (914.9 × 280.9 mm) and lightweight design (max. 5.10 kg) allow for easy integration into narrow or customized enclosures.
Equipped with LVDS 51-pin interface and 12V power supply, this signage solution ensures compatibility and ease of installation. Optional MEMC technology provides up to 120Hz or 240Hz frame interpolation for smoother content playback. Ideal for dynamic passenger information systems, schedule boards, or directional signage in high-traffic areas.
Technical Specifications – 37" Stretched LCD Display
| Item | Specification |
|---|---|
| Panel Size | 37.0 inch (Native Bar Type) |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1920 (RGB) × 540 (54 PPI) |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 899.712 (W) × 253.044 (H) mm |
| Outline Dimensions | 914.9 (W) × 280.9 (H) mm |
| Bezel Opening Area | 903.71 (W) × 257.04 (H) mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 14 ms (Typ., G to G) |
| Color Support | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 50,000 Hours Lifetime, Driverless |
| Frame Rate | 60Hz (Standard); 120Hz / 240Hz Optional with MEMC |
| Touch | None |
| Interface Type | 51 pins LVDS (2ch, 8-bit), Terminal |
| Power Supply | 12.0V (Typ.) |
| Weight | Max. 5.10 kg |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Digital Signage, Outdoor High Brightness Bar Display |
Technical Specifications – 37" Stretched LCD Display
| Item | Specification |
|---|---|
| Panel Size | 37.0 inch (Native Bar Type) |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1920 (RGB) × 540 (54 PPI) |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 899.712 (W) × 253.044 (H) mm |
| Outline Dimensions | 914.9 (W) × 280.9 (H) mm |
| Bezel Opening Area | 903.71 (W) × 257.04 (H) mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | ADS, Normally Black, Transmissive |
| Response Time | 14 ms (Typ., G to G) |
| Color Support | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 50,000 Hours Lifetime, Driverless |
| Frame Rate | 60Hz (Standard); 120Hz / 240Hz Optional with MEMC |
| Touch | None |
| Interface Type | 51 pins LVDS (2ch, 8-bit), Terminal |
| Power Supply | 12.0V (Typ.) |
| Weight | Max. 5.10 kg |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Digital Signage, Outdoor High Brightness Bar Display |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
