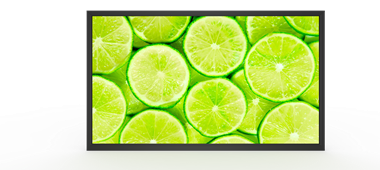

75 inch 3000 nits high brightness TFT LCD panel

75 inch 3000 nits high brightness TFT LCD panel

BrandRisingstar
Model nameRS750EGY-ND30
Screen size75"
Screen typeOutdoor LCD Panel
Resolution3840(RGB)×2160
Brightness (cd/m²)3000
Overview Specifications Customized Services Support & Shipping

Risingstar RS750EGY-ND30 high brightness TFT LCD panel, Diagonal size 75 inch, sunlight readable brightness 3000 nits, 4k UHD resolution, 1100:1 contrast ratio, are ideal to applied to outdoor device that usually is used in the directly sun light, such as window facing display, Digital Signage, Interactive Whiteboard etc.

75 inch high brightness TFT LCD panel Main Features:

  1. IPS TFT LG open cellUHD High resolution: 3840*2160

  2. Brightness up to 3000 nits

  3. More brightness adjustment available: Auto brightness sensor, Manual brightness adjustment( PWM brightness adjustment, OSD brightness adjustment)

  4. High contrast ratio: 1100: 1

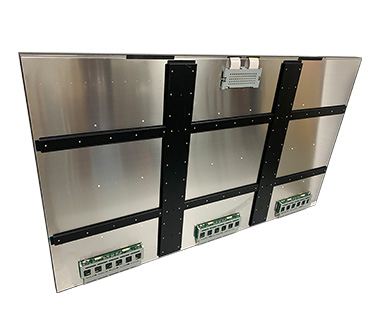

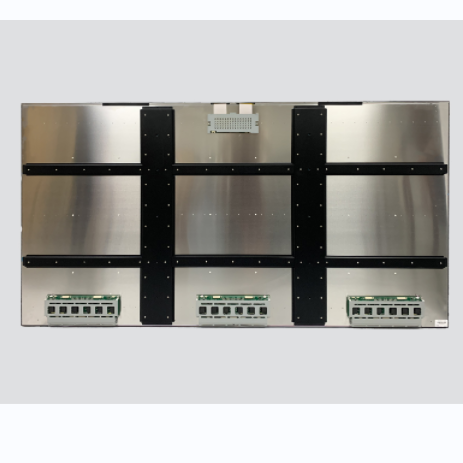

  5. Almuinum alloy structure easy heat dissipation

  6. 24/7 working time

IPS TFT panel technology

Superior image quality and color depth at 178 ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.

4K (UHD) High resolution

The 4K Ultra HD pictures quality ensures perfect colour and rich details in all possible broadcasting surroundings, ranging from shops to restaurants and office buildings, that bring your clear and color full visual enjoyment

Outstanding visibility 3000 nits high brightness

With RisingLCD customized great brightness of 3000nits, the 75 inch high brightness TFL LCD panel well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility.

LED back light

RisingLCD customized LED back light improves brightness and contrast as well as improving their lifespan and reducing their power consumption.

Applications:

Large Shop Windows, Car Dealerships, Wedding Shops, Hotels, Tourism, entire retail and hospitality industry

RS750EGY-ND30 75 inch high brightness display 75 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal75 inch
Brand Risingstar
Model NoRS750EGY-ND30
Active Area1649.66(W)×927.936(H) mm
Resolution3840(RGB)×2160, UHD, 59PPI
Physical Size1684.7（H）*970.4(V)*64.8(D) mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
Contrast Ratio :1100:1
White Luminance ( Center )3000 cd/m2 (Typ.)  [cd/m2 ]
Optical Response Time6 (Typ.)(G to G) ms
Nominal Input Voltage12.0V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [kg]31(Typ.)
Interface TypeV-by-One 8 lane , 56 pins
Support Color1.07B , 70% NTSC
Surface TreatmentAntiglare (Haze 28%),Hard coating (2H)
RoHS ComplianceRoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
