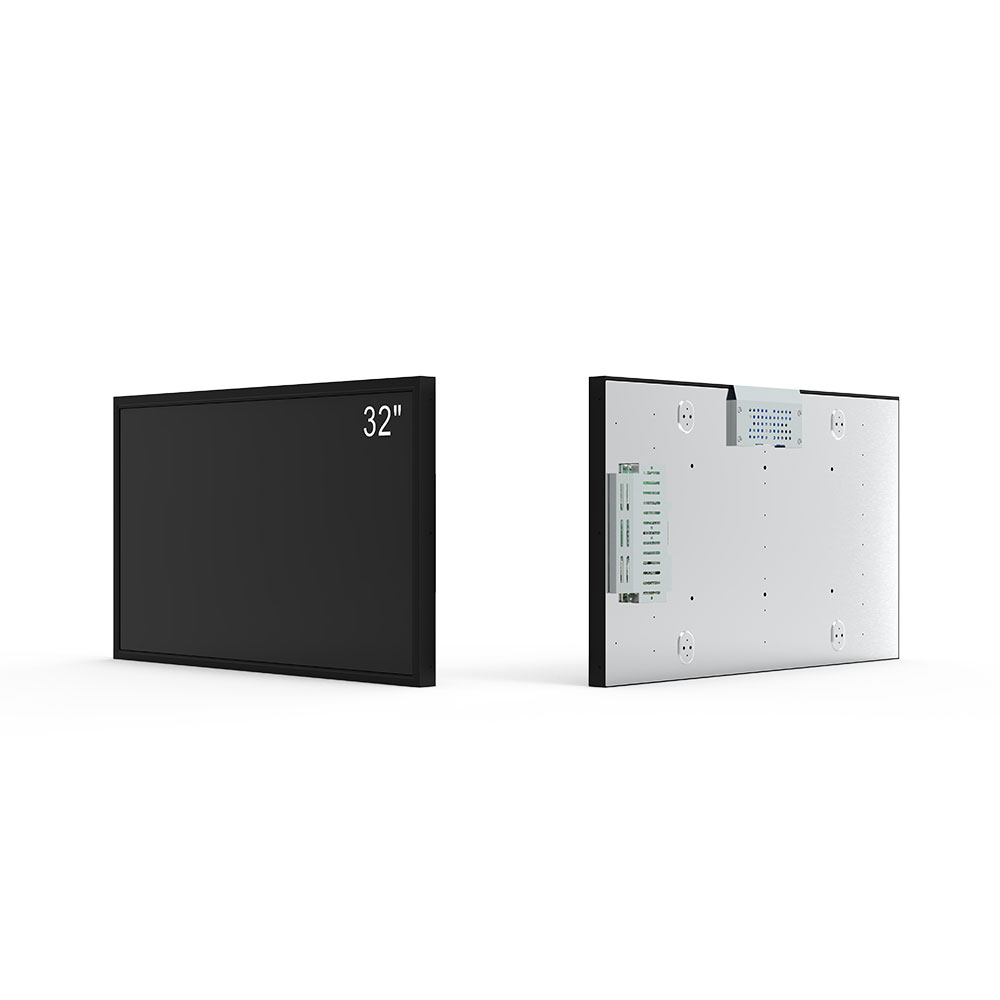

RisingStar presents a high-performance 32 inch sunlight readable window facing display engineered for commercial and industrial digital signage applications where maximum visibility in direct sunlight is essential. Featuring a robust a-Si TFT-LCD panel with Full HD resolution (1920x1080) and a pixel density of 69 PPI, this display delivers crisp visuals and vibrant colors for both indoor and outward-facing environments.
Unlike standard LCD panels, this upgraded version is equipped with a high brightness backlight system rated at 1500 nits, making it ideal for sunlight readable scenarios such as storefront windows, kiosks, and transportation hubs. Its ADSDS (IPS-like) technology provides ultra-wide viewing angles of 89° from all directions, ensuring content remains clear and consistent from any perspective.
The matte surface treatment (Haze 1%) minimizes glare, while the 1200:1 contrast ratio enhances readability even under challenging lighting conditions. With a response time of 8ms (G to G) and support for 16.7M colors (72% NTSC), this panel offers fluid video playback and accurate color reproduction.
Key features include:
32.0" active display area: 698.4 (W) × 392.85 (H) mm
Enhanced LED backlight: 1500 nits brightness, 30,000 hours lifespan
Integrated MEMC technology for smooth motion at 60Hz or optional 120Hz input
Robust temperature support: Operation from 0°C to 50°C
LVDS interface (2 ch, 8-bit), 51-pin terminal
Lightweight aluminum structure: only 4.00 kg

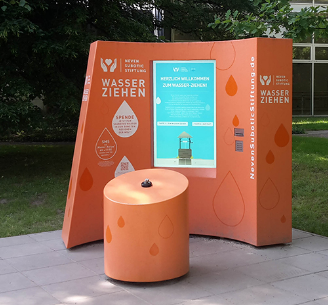

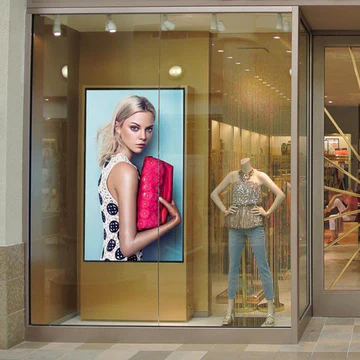

This model is purpose-built for window-facing digital signage, providing superior performance in environments with high ambient light. Whether installed in retail storefronts, EV charging stations, or outdoor enclosures, this high brightness display ensures maximum visibility and durability.
| Item | Specification |
|---|---|
| Display Size | 32.0 inch (Diagonal) |
| Panel Type | a-Si TFT-LCD, Transmissive |
| Resolution | 1920 (RGB) × 1080 (FHD) |
| Pixel Pitch | ~69 PPI |
| Active Area | 698.4 (W) × 392.85 (H) mm |
| Outline Dimensions | 716.2 (W) × 415.05 (H) mm |
| Viewing Area | Full View |
| Brightness | 1500 cd/m² (Customized High Brightness 5000Nits) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR ≥ 10) |
| Display Mode | ADSDS, Normally Black |
| Surface Treatment | Anti-Glare, Haze 1% |
| Color Depth | 16.7M colors (72% NTSC) |
| Response Time | 8 ms (Typ.) (G to G) |
| Refresh Rate | 60Hz (Standard), MEMC Support up to 120Hz Input |
| Backlight Type | WLED with Driver Board |
| Backlight Lifetime | 30,000 hours (Typ.) |
| Touch Panel | None |
| Signal Interface | LVDS (2 channel, 8-bit), 51-pin Terminal |
| Input Voltage | 12.0V (Typ.) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Panel Weight | 4.00 kg (Typ.) |
| Application | Window Facing Display, Outdoor Signage, Retail, Kiosks |
| Item | Specification |
|---|---|
| Display Size | 32.0 inch (Diagonal) |
| Panel Type | a-Si TFT-LCD, Transmissive |
| Resolution | 1920 (RGB) × 1080 (FHD) |
| Pixel Pitch | ~69 PPI |
| Active Area | 698.4 (W) × 392.85 (H) mm |
| Outline Dimensions | 716.2 (W) × 415.05 (H) mm |
| Viewing Area | Full View |
| Brightness | 1500 cd/m² (Customized High Brightness) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR ≥ 10) |
| Display Mode | ADSDS, Normally Black |
| Surface Treatment | Anti-Glare, Haze 1% |
| Color Depth | 16.7M colors (72% NTSC) |
| Response Time | 8 ms (Typ.) (G to G) |
| Refresh Rate | 60Hz (Standard), MEMC Support up to 120Hz Input |
| Backlight Type | WLED with Driver Board |
| Backlight Lifetime | 30,000 hours (Typ.) |
| Touch Panel | None |
| Signal Interface | LVDS (2 channel, 8-bit), 51-pin Terminal |
| Input Voltage | 12.0V (Typ.) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Panel Weight | 4.00 kg (Typ.) |
| Application | Window Facing Display, Outdoor Signage, Retail, Kiosks |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
