43inch sunlight readable window facing display for USA

43inch sunlight readable window facing display for USA

BrandLG/AUO/BOE
Model nameRS430ENT-ND20
Screen size43 "
Screen typeWindow Facing display
Resolution1920(RGB)×1080
Brightness (cd/m²)2000
Overview Specifications Customized Services Support & Shipping

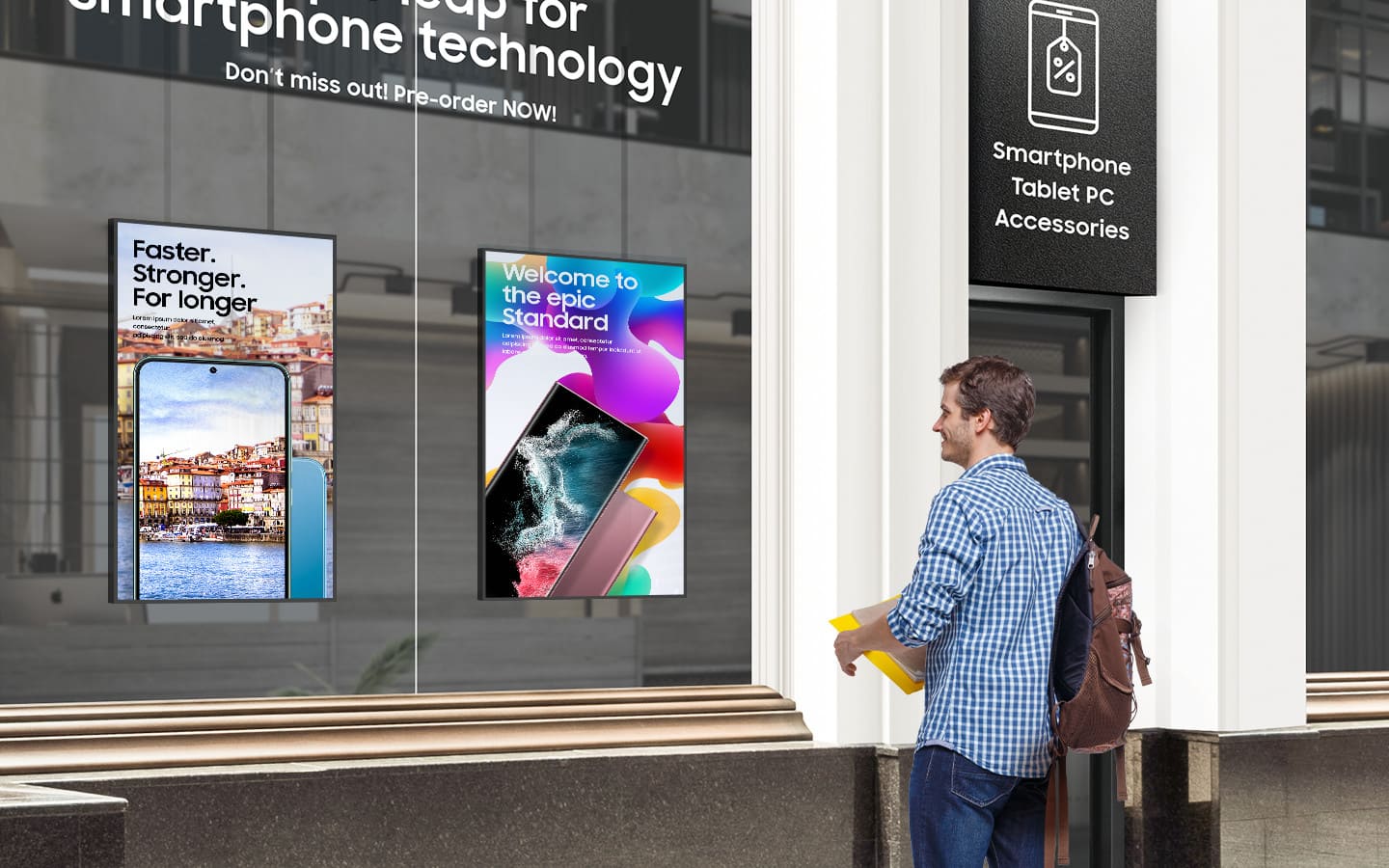

RisingLCD high brightness window facing display are available size from 43 inch to 75inch, and it is designed for shopfront window. They are equipped with a commercial grade LCD panel and RisingLCD customized LED backlight, the high brightness can achieve 1000nits to 5500nits they particularly suit installation for venues where directly sunlight / high ambient light presents an issue.



RS430ENT-ND20 Main features

1.Full viewing angles,

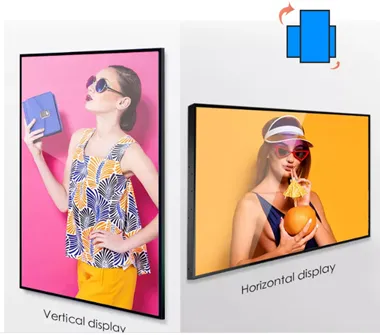

Thanks to using a matrix with IPS/MVA technology,  all our sunlgith readable window facing displays feature wide 178° viewing angles. This makes them suitable for both portrait and landscape orientation

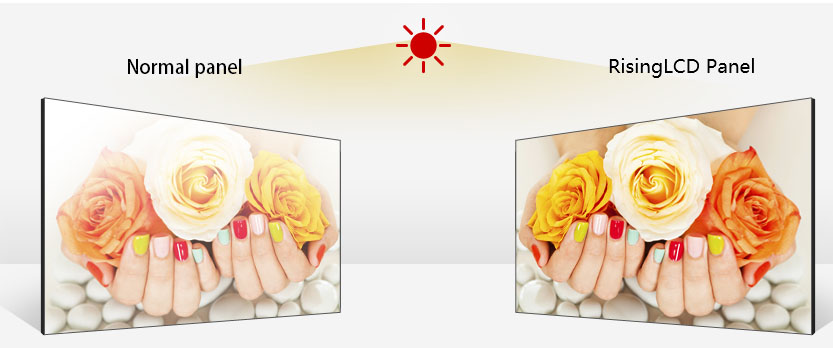

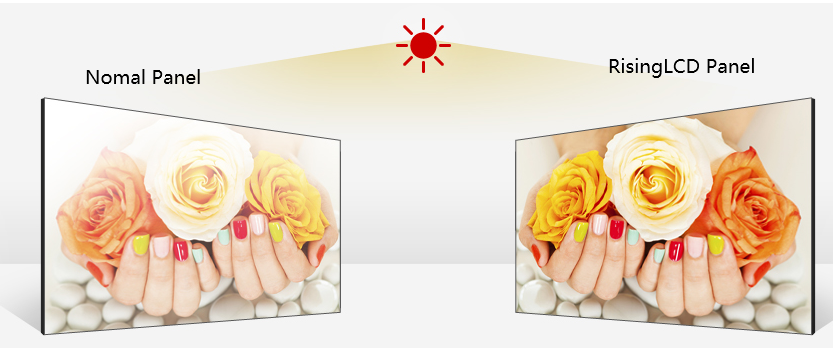

2.Make Your Content Stand Out beyond Window with the Outstanding Visibility

All our sunlight readable window facing display are incorporated with a quarter wave plate(QWP) polariser, that prevents the backout effect when viewers are wearing polarised glasses, the backout effect is commounly seen with polarised glasses on standard  type LCD outdoor video monitors mounted in portrait orientation.

3. Smart brightness control

The built-in auto-brightness sensor adjusts backlight brightness according to the surrounding brightness to save power energy and protect your eyes.

4.Blackening Defect Free

Most residential and commercial LCD panel exposed to directly sunlight will blacken or result in isotropic failure. RisingLCD high brightness window facing displays are equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.

5. Low noise

Low noise design, applicable for window environment

Sound below 25dB is as quiet as the recording studio

RS430ENT-ND20 43 inch high brightness display 43 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Display Panel Size 43
Panel BrandLG/AUO/BOE
Display Area941*529.4MM
Brightness 2000nits
Resolution: 1920*1080
Aspect Ratio: 16:9
Constrast Ratio.1300/1
Response Time6/9   (Typ.)(Tr/Td) ms
View Angle89/89/89/89   (Min.)(CR≥10)
Backlight（DLED)
Lift Hourup to 50,000 hours
Control SystemSmart   DimmingSupport
Intelligent temperature controlSupport
Remote control functionSupport
Electrical parametersInput   voltageAC110V/220V,50/60HZ
Maximum power200W
shellshell   materialsheet metal
Product Size986.5*574.5*89.5mm
Weight 20kg
Use environmentUse   environmentsemi-outdoor
Use temperature and humidity0-70°C/5%-95%RH
multimediaMotherboard   TypeAndroid/PC/HD   driver board (optional)
IO interfaceHDMI/VGA/DVI/USB/RJ45
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
