21.5 inch industrial touch LCD monitor with 1000 nits high brightness
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
RS2150ENT-N10T is a industrial touch LCD monitor, this provide high brightness and sunlight readability, powerful, compact, rugged and energy saving.
This industrial touch LCD monitor is completely and easily configurable, boast advanced thermal management and with an all aluminum frame, and are combat-proven and field tested to withstand shock and vibration, extended temperature range and extreme environments.

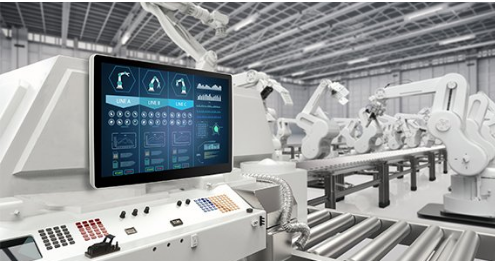

It is ideal for digital factory, transport, marine, retail and medical device.
RS2150ENT-N10T industrial touch LCD monitor Main features
• 1920x1080 high resolution, 16 : 9 aspect ratio
• Projective capacitive multi-touch or single-point resistive touch
• High brightness 1000cd/m2 with long-life LED backlight
• Front IP65 compliant flat panel monitor
• Automatic backlight adjustment through a built-in ambient light sensor
• VGA, HDMI, and DVI with multi-signal inputs
•Excellent price-performance ratio
•100% tested and high quality
• Easy to maintain
• Fast shipment
Panel Mount Monitor, Embedded Mount Monitor
The most polular installation ways for most application is mounted montors, embedded monitor, our RS2150ENT-N10T industrial touched LCD monitors with ultra-thin front bezels, suitable for embedding into other equipment surface, such as electronical panels, dashboards, doors,machine, etc. Realizing a true-flat seamless design style.
The RS2150ENT-N10T industrial touch LCD monitor supports multiple software
This industiral monitor offers a true multi touch capabilities – up to 20 simultaneous point of touch, touch gesture recognition – write with the pen and erase with your palm, fast touch response time, as well as easy to use and intuitive Android-based built-in software.
| Item No | RS2150ENT-N10T Touched |
| Panel Brand | AUO display |
| Panel No | G215HVN01.3 |
| Size | 21.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)×1080 [FHD] 102PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 476.64 × 268.11 mm (H×V) |
| Outline Size | 479.84 × 271.31 mm (H×V) |
| Surface Treatment | Antiglare, hard coating (3H) |
| Brightness | 1000cd/m² |
| Constrast Ratio. | 5000:1 |
| Aspect Ratio: | 16:9 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | VA, Normally Black, Transmissive |
| Response Time | 20/5 (Typ.)(Tr/Td) ms |
| Display Color | 16.7B 72% NTSC |
| Backlight | WLED , 50K hours , W/ LED Driver |
| Touch type | resistive/capacitive/mouse control |
| Frame Rate | 60Hz |
| Operation system: | Android 5.1 |
| Memory adn storage: | 2GB+8G |
| Power performance | 100-240v |
| Power: | 33W |
| Network ports | LAN*1, WIFI *1 |
| Storage extension: | Micro SD card |
| other ports: | USB2.0*2, SIM Card*1, AC switch, DVI, VGA, HDMI |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
