55 inch ultra high brightness window facing display for advertising

55 inch ultra high brightness window facing display for advertising

/: 55" 1500 nits big-screen panel. 1920x1080. Designed for window-facing displays and information walls.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

RisingLCD high brightness window facing display series are manufactured specifically to perform in brightly lit environments, even in a direct sunlight. They are ideally suited to a number of applications that including bus shelf, train station, airports,retail store window and public space.

The industrial grade high brightness display is designed for 24/7 usage, offering high contrast, excellent colour reproduction with a backlight producing a high brightness display of 350nits - 5000 nits.

ultra high brighness LCD display

55 inch ultra high brightness window facing display

Functional characteristics
1.HD display: LCD panel of industrial grade, brand-new A-gauge panel.
2.Bright color: Full view display, up and down about 178 degrees without distortion.
3.Simple design: ultra-thin LCD advertising machine shell with temp

ered glass protection, so that the LCD screen is not damaged,

4. Smart brightness control

5. Blackening Defect Free

6.Customization: The production line is fully managed by ISO 9001 advanced scheme, and can customize shell shape, fuselage color, and silk LOGO according to customer requirements.

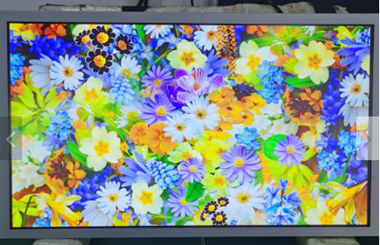

Outstanding visibility ultra high brightness

With a great brightness of 5000nits, this outdoor LCD display are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility.

微信图片_20230606103503_副本

Smart brightness control

The built-in auto-brightness sensor adjusts backlight brightness according to the surrounding brightness to save power energy and protect your eyes.

微信图片_20230606103523

Blackening Defect Free

Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. Our outdoor sunlight readable digital signage LCD display is equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.

LCD PanelSize43 inch49 inch55 inch65 inch75 inch
BrandLG/AUO/BOE
Display Area (mm)941*529.41074*6041209*6801428*8031649.6*928
Brightness (nits)1000-5500
Resolution1920*10801920*1080/
3840*2160
1920*1080/
3840*2160
1920*1080/
3840*2160
1920*1080/
3840*2160
Aspect Ratio16:9
Contrast Ratio1300/1
Respond Time6/9 (Typ.)(Tr/Td) ms
View Angle89/89/89/89 (Min.)(CR≥10)
BacklightDLED Backlight
LifeTime50000H
Control SystemIntelligent DimmingSupport
Intelligent Temperature ControlSupport
Remote Control FunctionSupport
Electric ParameterInput VoltageAC110V/220V, 50/60HZ
Maximum Power200W230W265W300W400W
ShellShell MaterialMetal Sheet / Aluminum Alloy
Products Size(mm)986.5*574.5*89.51119*649*901255.5*726.5*901465*840*911701.5*980*90
Weight20kg26kg34kg44kg59kg
Service EnvironmentOperating EnvironmentSemi - Outdoor
Operating Temperature and Humidity-20 ~ 70 °C
MultimediaMotherboardAndroid /PC/ HDMI Driver Board (optional)
IO InterfaceHDMI/VGA/DVI/USB/RJ45
RS55-OEM 55 inch high brightness display 55 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
