UHD outdoor high brightness touch screen monitor 27 inch
Brand:
27 Inch UHD Outdoor High Brightness Touch Screen Monitor – 1500 nits Industrial Grade Display
Overview:
The RisingStar 27-inch UHD Outdoor High-Brightness Touch Screen Monitor is designed for industrial and commercial applications where high visibility under direct sunlight is critical. With a 3840×2160 UHD resolution and 1500 nits peak brightness, this monitor delivers crystal-clear visuals, wide viewing angles, and precise touch responsiveness. Built for outdoor digital signage, transportation information systems, interactive kiosks, and other demanding environments, it ensures reliable performance in extreme conditions.
Product examples
Application cases
Key Features:
High Brightness & Sunlight Readability: 1500 nits peak brightness and anti-glare surface treatment allow content to remain sharp and readable even under direct sunlight.
UHD Panel Technology: Premium AUO IPS panel ensures accurate color reproduction, wide viewing angles (178° horizontal and vertical), and high contrast ratio for vibrant visuals.
Multi-Touch Capability: Supports 20-point capacitive touch for seamless interactive experiences in kiosks, ticketing machines, and self-service terminals.
Durable & Reliable Design: Rugged aluminum frame, IP65-rated front panel, and extended temperature range (-20°C to 60°C) ensure long-term outdoor usability.
Long Lifespan & Low Maintenance: LED backlight provides over 50,000 hours of operation, optimized for energy efficiency and low heat generation.
Versatile Connectivity: HDMI, DisplayPort, and VGA inputs allow easy integration into existing systems.
Technical Specifications:
| Specification | Details |
|---|---|
| Panel Size | 27.0 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 × 1080 FHD, 81 PPI, RGB Vertical Stripe |
| Active Area | 597.6 mm (W) × 336.15 mm (H) |
| Outline / Opening Area | 601.6 mm (W) × 340.15 mm (H) |
| Surface Treatment | Anti-glare (Haze), Hard Coating 3H |
| Brightness | 500 to 5000 nits |
| Contrast Ratio | 3000:1 (Typ.) Transmissive |
| Recommended Viewing Angle | Full viewing angle |
| Response Time | 7/5 ms (Typ.) (Tr/Td) |
| Viewing Angles (CR≥10) | 89° / 89° / 89° / 89° (Left/Right/Up/Down) |
| Display Mode | VA, Normally Black, Transmissive |
| Panel Series | IPS Hard Panels: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Panels: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Colors Supported | 16.7M, 72% NTSC |
| Backlight Type | WLED [15S4P], 40,000 hours, No Driver |
| Weight | 2.18 kg (Typ.) |
| Application | Digital Signage |
| Frame Rate | 60Hz (Input), 120Hz (60Hz Input with built-in MEMC), 120Hz+120Hz (Panel + Backlight), 240Hz (60Hz Input with built-in MEMC) |
| Touch Technology | None |
| Interface Type | 30 pins LVDS (2 ch, 8-bit), Terminal |
| Power Supply | 5.0V (Typ.) |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -20°C to 70°C |
Applications:

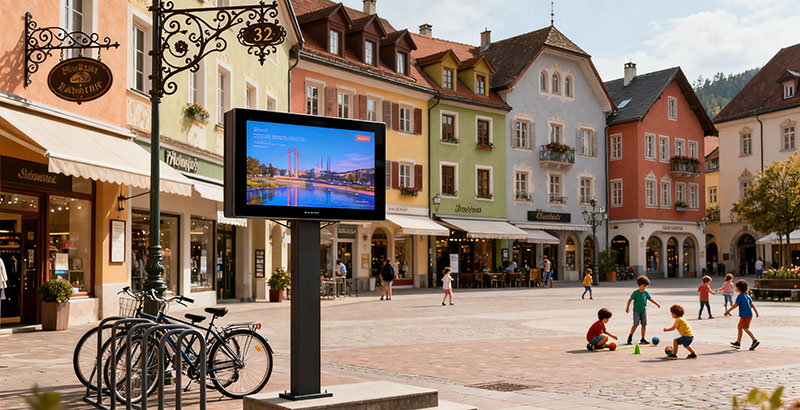

Outdoor Digital Signage: High-visibility retail, real estate, and commercial advertising displays.
Transportation Systems: Passenger information displays for bus, metro, and railway stations.
Interactive Kiosks & Self-Service Terminals: EV charging stations, ticketing machines, wayfinding systems, and smart city installations.
Why Choose RisingStar:
Trusted Expertise: Over a decade of experience in industrial-grade and high-brightness LCD solutions.
Certified Quality: ISO9001, CE, and RoHS certified products, ensuring reliability and compliance with global standards.
Comprehensive Support: Detailed technical documentation, installation guides, and responsive customer support tailored for system integrators and distributors.
Partner & Integration Benefits:
Customization Options: Tailor display size, interface options, and enclosure design to meet project-specific requirements.
Bulk Purchasing & Distributor Incentives: Competitive pricing and volume discounts for integrators and resellers.
Integration Support: Access to comprehensive technical resources, including wiring diagrams, touch calibration guides, and troubleshooting FAQs.
Proven Track Record: Highlighted success stories and case studies from other commercial and outdoor installations, demonstrating reliability and effectiveness.
Conclusion:
The RisingStar 27-inch UHD Outdoor High-Brightness Touch Screen Monitor combines cutting-edge display technology, exceptional durability, and professional-grade touch capability. Ideal for integrators, distributors, and project developers, this monitor ensures superior readability, seamless interactivity, and long-term operational reliability in the most demanding outdoor environments.
RS270ENT-N20 is a outdoor touch screen monitor that is equipped with AUO ultra HD original panel with a great resolution 3840x2160 (landscape view), edge LED backlight. Wide view angel 178 degree, and after RisingLCD re-designs that achieves the great brightness 1500nits (800nits to 1500nits brightness is option), it adopts 20 points multi-touch technology, lets you take advantage of touch features and navigate web pages, flick through photos, paint and play games - all with your finger tips!
Full sizes from 21.5 to 86 inch have been designed to facilitate market leading knowledge sharing in both business and educational enfironments.
With USB, VGA, DVI & HDMI (MHL) inputs, so you can easily power and extend the enjoyment from your smartphone or tablet on our outdoor touch screen monitor, Connect your cell device like a smartphone or MP3, media player to this monitor and play content from the mobile device without redo any setup procedures.
The users can wireless present their computer contents to interactive whiteboard, all in one solution for meeting room and classrooms.
Tempered glass have heat treated tempered glass, that preventing any damage to the touch screen monitor, and optical Anti-Glare technology help keep what's on your monitor clear and visible even in the outdoor directly sun light..
The IFPD supports multiple software
RisingLCD outdoor touch screen monitor offers a true multi touch capabilities – up to 20 simultaneous point of touch, touch gesture recognition – write with the pen and erase with your palm, fast touch response time, as well as easy to use and intuitive Android-based built-in software.
High brightness 1500nits, this monitor can offer vivid, clear, crisp image and easy to see in outside sunlight. And with the built in light sensor, it adjusts the displays brightness during cloudy days and at night time to optimized power consumption and ensure an ideal viewing experience.
RS270ENT-N20 outdoor touch screen monitor is designed based on the IP65 rated, and it can protect the mointor from water, moisture, sand, dust and insects, and allowing for hard use in nearly every outdoor weather condition.
| Panel Model | Brand | Size | Composition | Resolution |  Brightness | C/R | View Angle | Colors | Backlight |
| G270HAN01.0 | AUO | 27" | LCM | 1920×1080 | 1000 | 1000:01:00 | 89/89/89/89 | 1.07B | WLED |
| G270QAN01.1 | AUO | 27" | LCM | 2560×1440 | 900 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED |
| G270ZAN01.0 | AUO | 27" | LCM | 3840×2160 | 800 | 1000:01:00 | 89/89/89/89 | 1.07B | WLED |
| G270ZAN01.2 | AUO | 27" | LCM | 3840×2160 | 800 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED |
| G270ZAN01.1 | AUO | 27" | LCM | 3840×2160 | 800 | 1000:01:00 | 89/89/89/89 | 1.07B | WLED |
| M270QAN02.5 | AUO | 27" | LCM | 3840×2160 | 600 | 1000:01:00 | 89/89/89/89 | 1.07B | Mini LED |
| G270QAN01.2 | AUO | 27" | LCM | 2560×1440 | 550 | 1000:01:00 | 89/89/89/89 | 16.7M | WLED |
| G270ZAN01.5 | AUO | 27" | LCM | 3840×2160 | 400 | 1000:01:00 | 89/89/89/89 | 1.07B | WLED |
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
