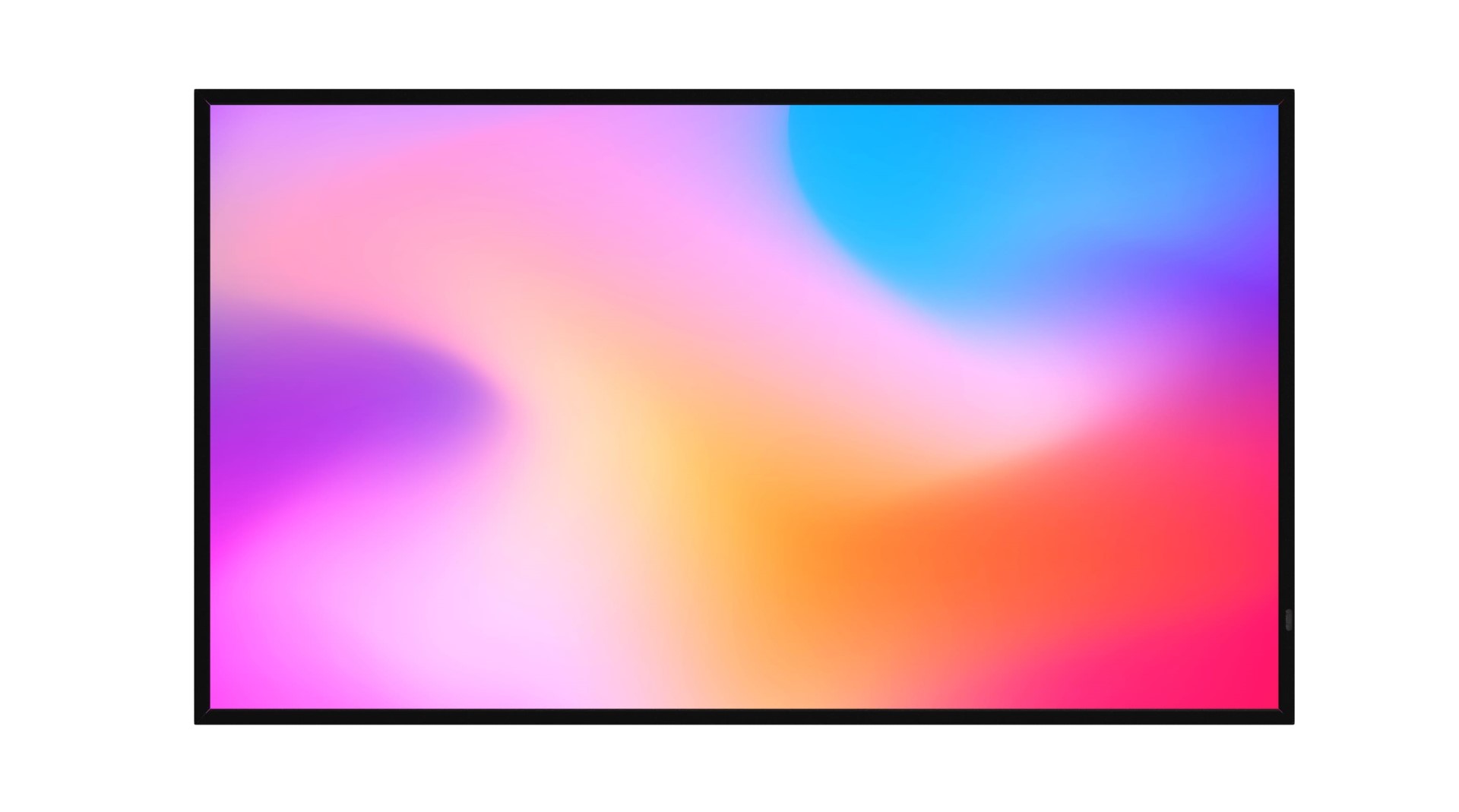

32 inch High Brightness window facing LCD display
| Brand | Risingstar |
| Model name | RS320MNX01D01 |
| Screen size | 31.5" |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 2500 |

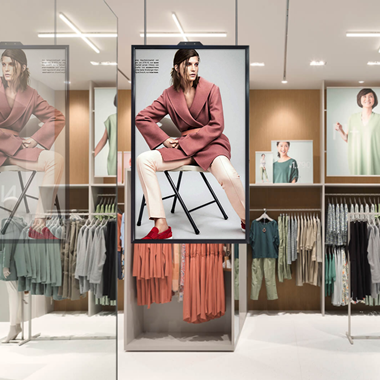

RS320MNX01D01 is a 32 inch LCD display from Risingstar, which is the first and primary type of the 32-inch window facing display series, with the typical Risingstar style: High brightness and minimalism outer design, support multiple mounting way including floor standing or hanging, whatever landscape or portrait, also the AG and AR glass help the screen is visible under direct sunlight.
Risingstar monitors always has far higher brightness than most of our competitors, for the specific 32-inches we can reached 4000 nits even much higher, more information please searching on our website: www.risinglcd.com
Model number | RS215MNX01D01 | RS320MNX01D01 | RS430MNX01D01 | RS550MNX01D01 | RS650MNX01D01 |
Brightness (cd/m2) | 1000 | 1500 | 2000 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 230 | 265 | 300 | ||
Operating temperature | -20℃ ~ 70℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

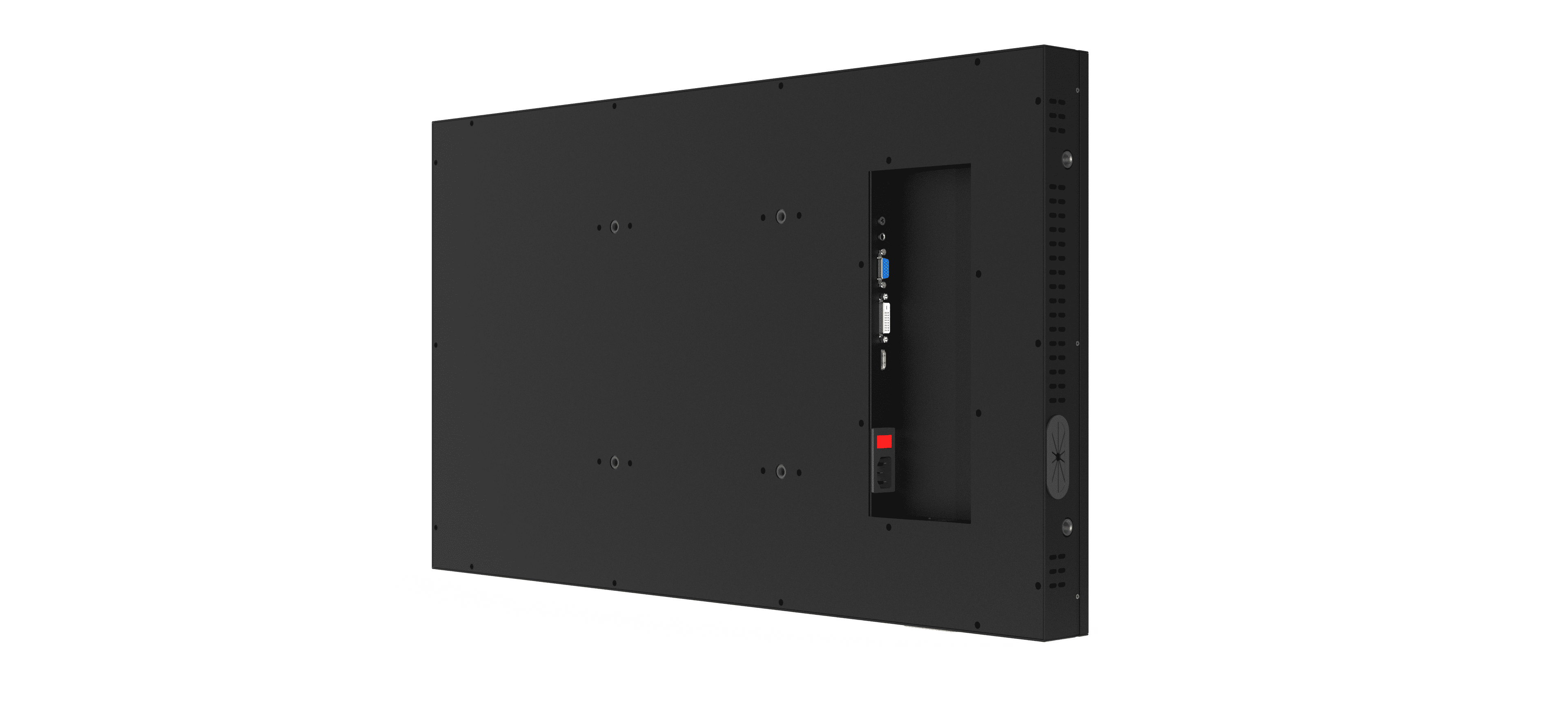

Rugged and unique housing: This display has unique outershell, you can see the crave on the display is as sort of thermal dissipition design by our own design, this allowed the display dissiption heat without fan or A/C, to save the power consumption; it can be fully muted if you need mount it in some quiet place such like library, this also the reason why this outdoor display sometimes will mounted indoor by our customers.

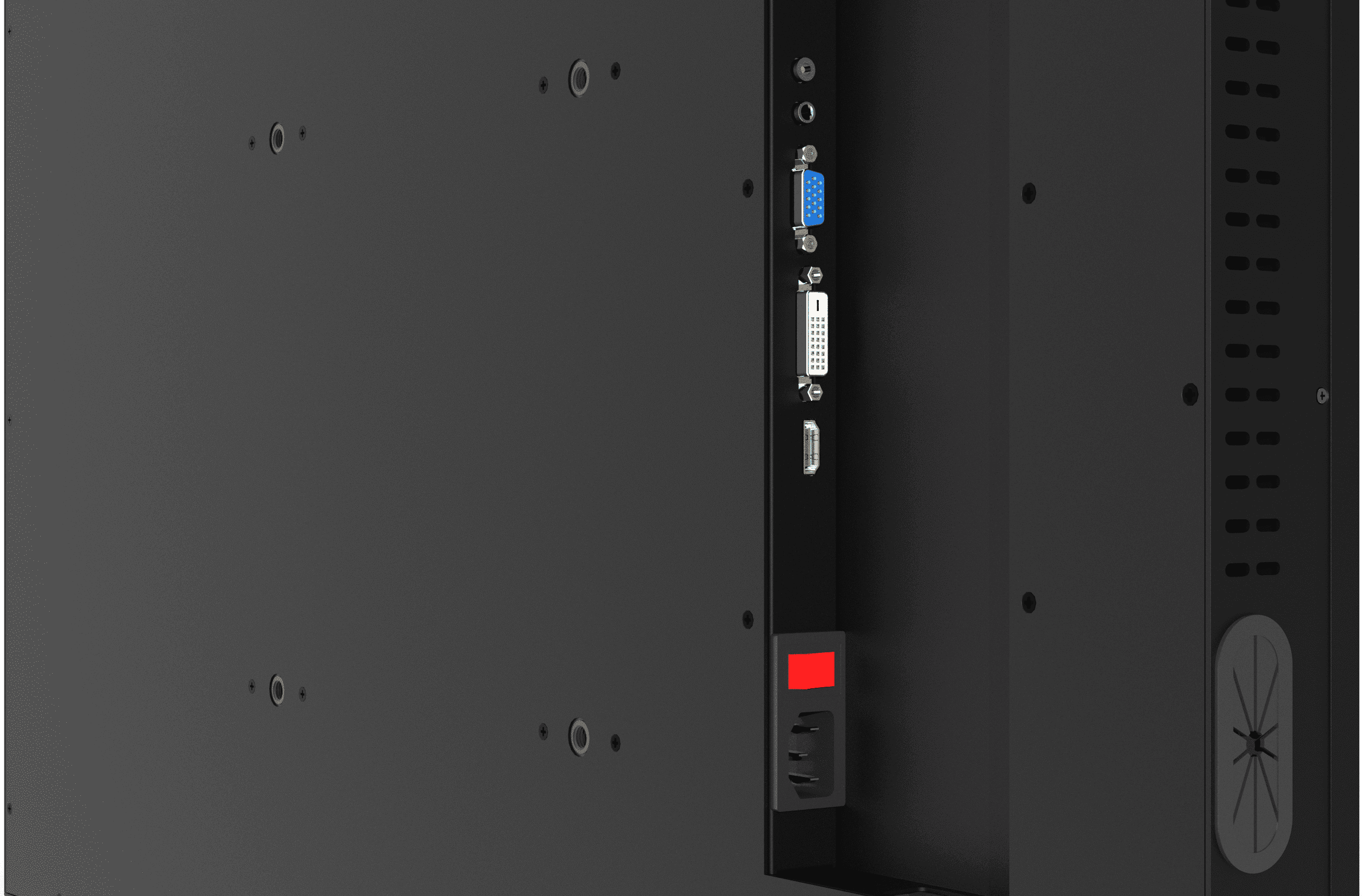

High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.

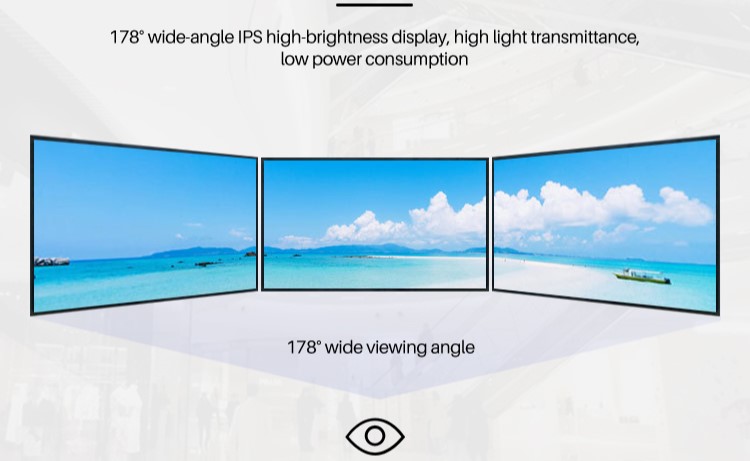

Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.

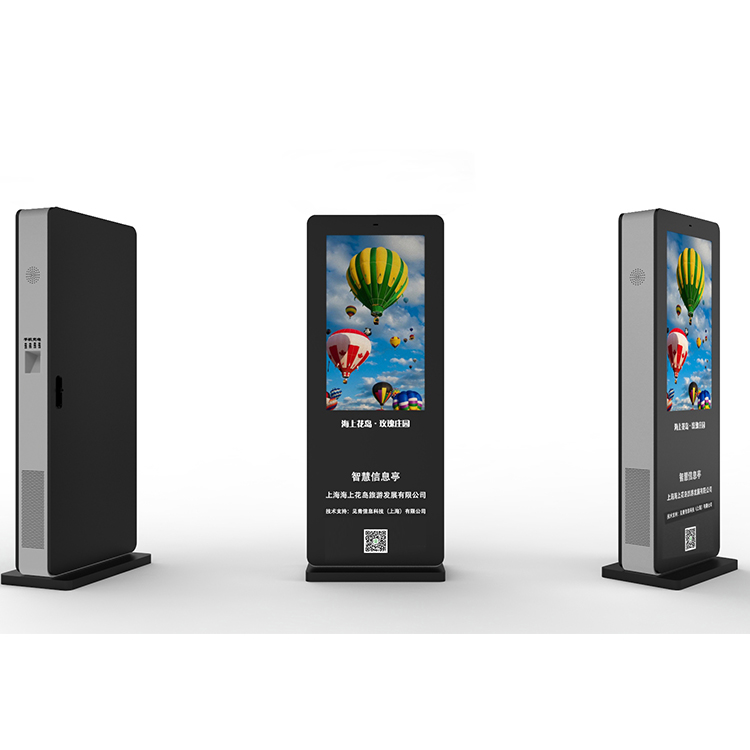

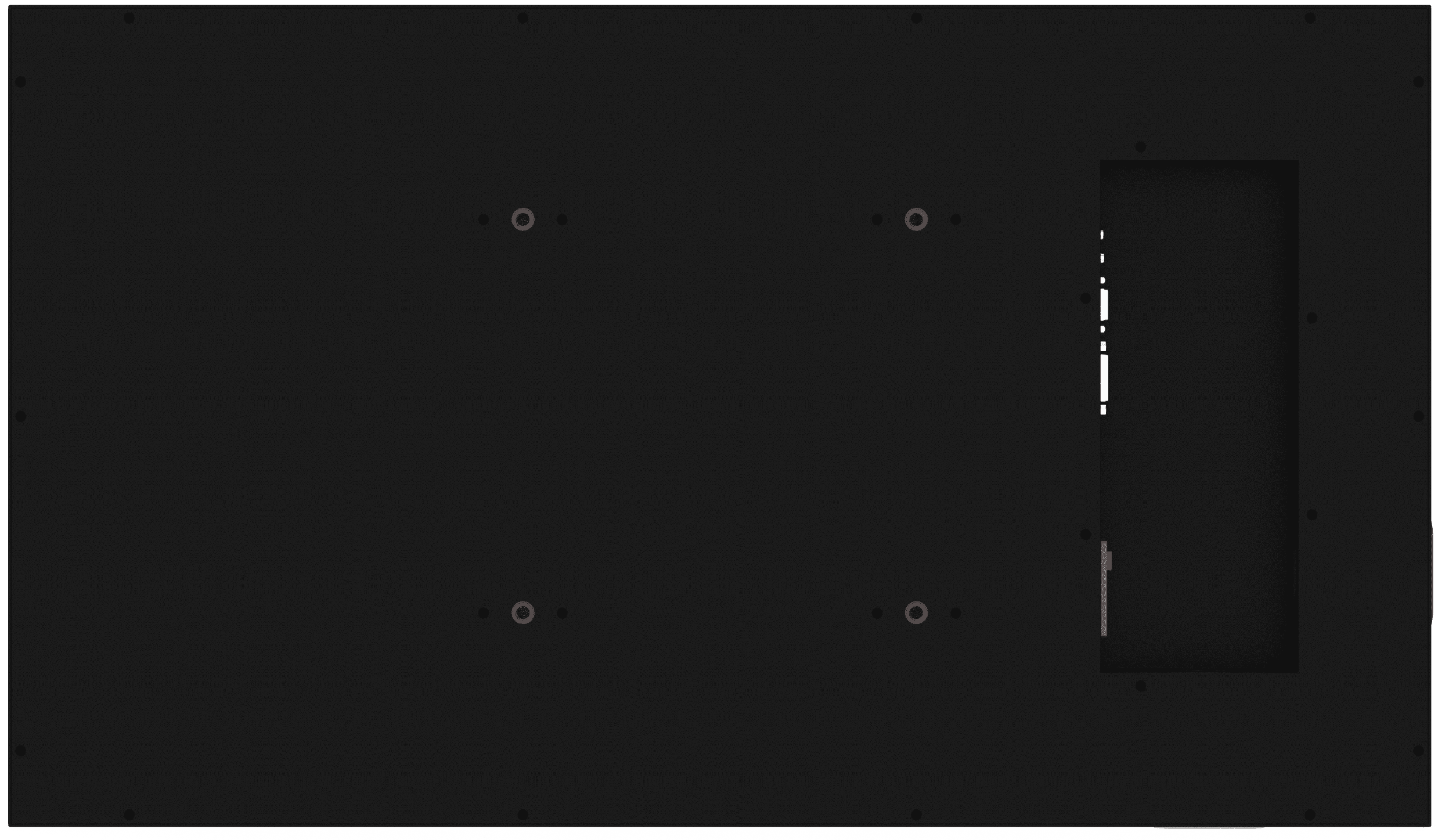

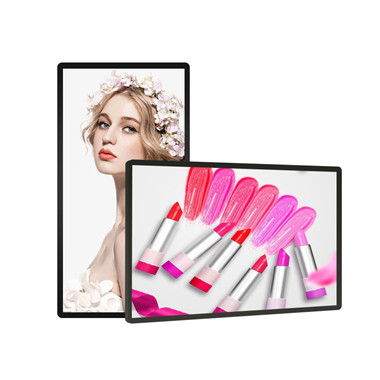

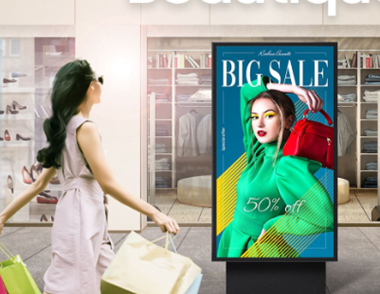

Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
window facing display series:
RS320HNX02D05, outdoor no fans and A/C self dissipition monitor, save the consumption also muted design...
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
| Model | RS320MNX01D01 | |
| Panel | Size(Diagonal) | 32″ |
| Resolution | 3840*2160(16:9)/1920*1080 | |
| Active Area(mm) | 697.31(W)×392.23(H) mm | |
| Brightness(Typ.) | 2500nit | |
| Contrast Ratio | 1300:1 | |
| Back light type | Direct back light | |
| Viewing Angle (HxV) | 178×178 | |
| Orientation | Landscape & Portrait | |
| Connectivity | Input | RJ45/HDMI/VGA/USB/DVI |
| OutPut | Audio out | |

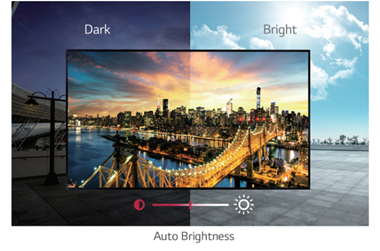

| External Control | IR Receiver, Auto-Dimming Sensor IR Receiver, Auto Dimming Sensor. | |
| Physical SPEC | Bezel Color | Black |
| Bezel Width | 40mm | |
| Display Dimension | 731.9*432.4*40mm | |
| Net Weight | 32kg | |
| Operation Condition | Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C | |
| Power | Input Supply | AC 110~240V 50/60Hz |
| Consumption | 150W | |
| Internal Player | Processor Coretex | Rockchip, RK3288, CoretexA17, 1.8GHz |
| Memory Interace | HYNI, DDR3, 2GB | |
| Storage | 8GB | |
| Operation System | Android 5.1 | |
| Multimedia Video Decoder | MPEG 1/2/4, H264, WMV, WV, TS, FLV,JPEG, PNG, BMP, GIF,MP3 | |
| Special Features | Temperature sensor, Auto Brightness sensor, Silent fans cooling Source selection. | |
| Accessories | Included Accessories | Remote control (W/O battery), AC powe plug |
| Optional Acessories | Mounting brachet (Wall mount, roof hanging, floor stand) |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
