43 inch RisingLCD double side high brightness window-facing Display

43 inch RisingLCD double side high brightness window-facing Display

AUO® 43 inch P430QVR01.0 sunlight readable display. 4000 nits high brightness, 3840(RGB)*2160 (UHD) 103PPI resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

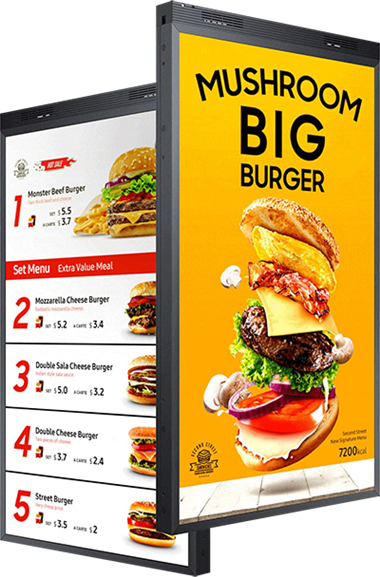

43 inch RisingLCD double side High brightness window-facing Display 4000 nits

RS430ENT-ND40 is a 43 inch double side high brightness window-facing display which is equiped with AUO screen model P430QVR01.0 that characterizes with a high brightness of 4000 cd/m², a great resolution 3480(RGB)*2160 (UHD) 68PPI, and 4000:1 constrast ratio,

This double side hight brightness window facing display is adapted Circular Polarization Technology (Quarter Wave Plate, QWP) technology, so the content on the display is clearly visible even when customers wear polarized sunglasses

The brightness of this double side window-facing display can be automatically adjusted according to the environment through the built-in ambient light sensor. Increase the brightness of the screen to increase visibility when the environment is bright, and reduce the brightness when the environment is dark to achieve efficient power consumption.

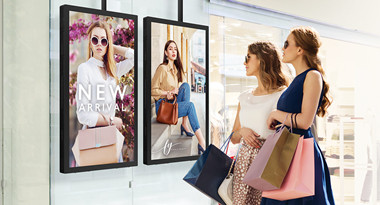

Due to the high brightness the content can be clearly presented even in sunlight. During the day, retailers can also attract shoppers to stop and even enter the store through clear contents and bright images in the window.



Double side high brightness window facing display can use the space to show your speical offers to your customers that already in your stores while pumping your advertising onto the buy passerage.

OEM and ODM are welcomed!

RisingLCD Advantage:

OEM/ODM is acceptable!

Small MOQ is acceptable!

Competitive price!

Fast Delivery time!

RisingLCD is your best choice!

43 inch   RisingLCD double side hgih brightness window-facing Display 4000 nits
Panel BrandAUO
Panel ItemP430QVR01.0
Size43 inch
Panel Typea-Si TFT-LCD,   LCM
Resolution: 3840(RGB)*2160 (UHD)   103PPI
Pixel FormatRGB Vertical   Stripe
Display Area941.184*529.416(H*V)mm
Outline   Size 963.9*564.9(H*V*D)mm
Bezel Area
Surface   Treatment Antiglare (Haze 25%),   hard coating(3H)
Brightness4000cd/m²
Constrast   Ratio.4000:1
View Angle89/89/89/89(Min)
Display ModelAMVA3, Normally   Black, transmissive Display
Best View   on Symmetry
Response Time8(Typ.)(G+G)
Display Color1.07B 72% NTSC
BacklightWLED, 50K hours, With   LED Driver
Touch   Screen Without
Panel   Weight 10.0Kgs (Typ.)
Frame Rate60Hz
Signal   Interface V-by-one 8 lane, 51   pins connector
Input   Voltage 12v(Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Current   State: In Production
P430QVR01.0 43 inch high brightness display 43 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
