33.2 inch square LCD display for video wall

33.2 inch square LCD display for video wall

RisingStar® 33.2 inch RS332ENT-NE04 sunlight readable display. 400 nits high brightness, 1920(RGB)×1920 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

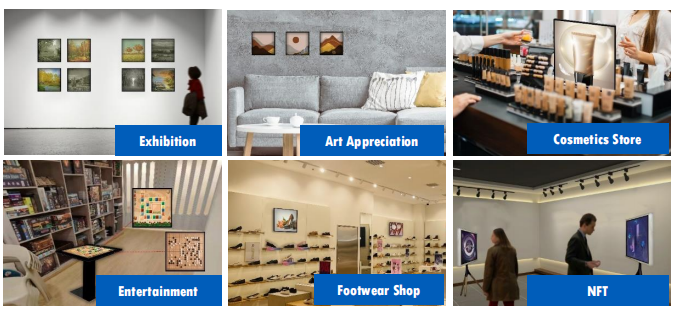

RS332NET-NE04 is a square screen with BOE commercial grade LCD screen, 1920*1920 high resolution, 500 nits brightness, and 1000:1 contrast ratio, 1.5 mm Splicing Seam. This special size is ideal for big video wall. this square LCD screen could be used in wide public environments, including retail, restaurants (square digital menu boards), hotels, schools, hospitals.

-- Ultra high brightness 400-1000 high brightness, customized as your request
--The proportion of special display ratio (1:1) screen reaches more than 90%
--Ultra thin splicing seam 1.5mm for splicing display.

--High contrast ratio: 1000:1

--The product has stable performance and supports 7 * 24-hour uninterrupted work
--Plug in USB flash disk to play_The USB flash disk is encrypted, and the inserted USB flash disk is automatically copied to the local storage for video l picture playback

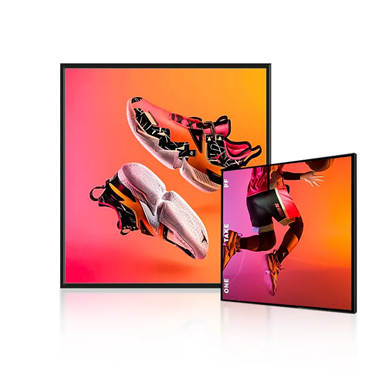

Create a captivating video wall with the 33.2 inch square ratio (1:1) screen. The square shape of the display is ideal for interactive point-of-sale and advertising displays. Super-narrow bezel-to-bezel measurements (1.5 mm.) provide a near-seamless video wall. And the digital loop out creates a single image across multiple displays (up to 100) without compromising picture quality.

Screen Diagonal33 inch MDL
Model NoRS332ENT-NE04
Active Area 596.16(W)×596.16(H) mm
Pixels1920(RGB)×1920  123PPI
Physical Size612.96(W)×612.96(H) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )400 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio 1000:1 (Typ.)
Optical Response Time8 (Typ.)(G to G)
Splicing Seam15.0 mm (active to active seam)
Signal TypeLVDS (4 ch, 8-bit) , Connector 92 pins
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Support Color 16.7M, 72%  NTSC
Surface Treatment Antiglare (Haze 25%), Hard coating (3H)
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
RS332ENT-NE04 33.2 inch high brightness display 33.2 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
