P398SVN01.0 39.8" Square-Shaped Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
P398SVN01.0 39.8" Square-Shaped Display

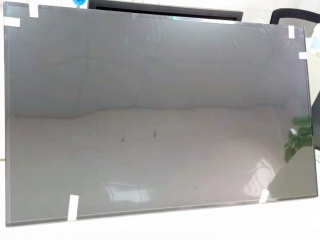

P398SVN01.0 is a 39.8" TFT- LCD panel, that with 700cd/m²(700-1500cd/m²)brightness, and 4000:1 constrast Ratio, this display is with an integral WLED backlight system. The P398SVN01.0 can be operated in the temperature range from -20 to 70°C, and Storage Temperature: -30 ~ 80 °C.
Full viewing Angels(89°/89°/89°/89°) and increased brightness (we can customize it from 700-1500 cd/m²), it guarantees the readability of outside.
Due to the high constrast Ratio, widely viewing angles, it is recommended to be used in both indoor and outdoor applications such as in digital signage systems, commerical applications as the information carriers, such as government offices, clinics, musume, exhitition, library, entertainment KTV.
P398SVN01.0 will be in mass production on Q2 this year, so any needs on this size you can contact with us, we will offer you a alternative solutions.

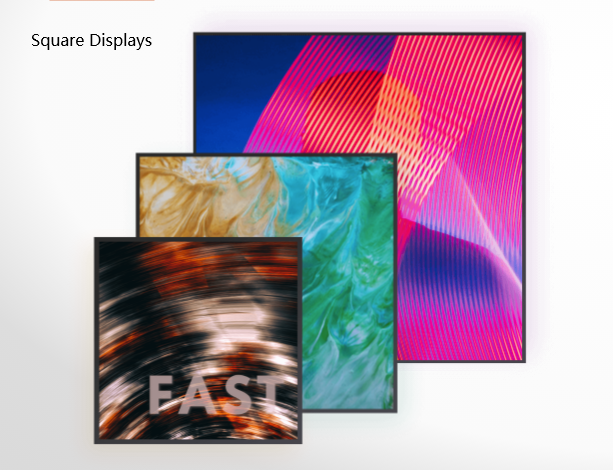

Below are the other sizes square-shapped display for your reference, Models P281SVN01.0(28.1 inches), P353kvn01.0(35.3 inches) and the newest P449SVN01.0 (44.9 inches).
OEM and ODM are welcomed!
RisingLCD Advantage:
OEM/ODM is acceptale!
Small MOQ is acceptable!
Competitive price!
Fast Delivery time!
RisingLCD is your best choice!
| P398SVN01.0 39.8" Square-Shaped Display | |
| Panel Brand | AUO |
| Panel Item | P398SVN01.0 |
| Size | 39.8 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)*1920 68PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 714.2*714.2(H*V)mm |
| Brightness | 700cd/m² |
| Constrast Ratio. | 4000:1 |
| View Angle | 89/89/89/89(Min) |
| Display Model | AMVA3, Normally Black, transmissive Display |
| Best View on | Symmetry |
| Backlight | WLED, |
| Signal Interface | LVDS |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Backlight Voltage | 12V |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
