UHD 32 inch high brightness window facing digital Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
UHD 32 inch high brightness window facing digital Display, 3500 cd/m² G320ZAN01.0
RS320ENT-ND35 is a 32 inch high brighness window facing display that is equipped with AUO screen model G320ZAN01.0 that characterizes with a UHD high brightness of 3500 cd/m², a great resolution 3480(RGB)*2160 (UHD), and work life can achieve above 50,000 hours
32 inch high brightness window facing Display use the Hi TNI technology that keeps the liquid crystals in the display themselves from changing the state of their aggregation under the affect of the sunlight and tempeatures, and keep the information on the display can be read in any light condition.
the hight brighness 3500cd/m² make the content on the panel are more vividly and well recognized in any commerical location, even in the direct sunlight.
The great resolution 3480(RGB)*2160 (UHD) and wide viewing angle window-facing display, the extra wide 178 degree angle and 4k resolution are easily to draw the shoppers or visitors to view the widnow facing display from different angles while they pass by, and lead them into the store to shop.
this window facing display use the industrial screen, that make it have long working life, it can working 7/24 and achieve 50,000 hours.

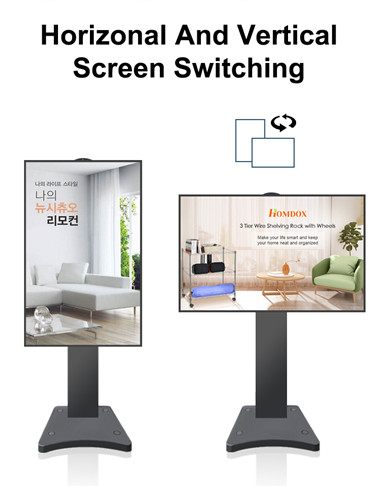

Single screen or double screen are optional
OEM and ODM are welcomed!
RisingLCD Advantage:
OEM/ODM is acceptable!
Small MOQ is acceptable!
Competitive price!
Fast Delivery time!
RisingLCD is your best choice!
| UHD 32 inch high brightness Window Facing digital Display, 3500nits | |
| Model No | RS320ENT-ND35 |
| Panel Brand | AUO |
| Panel Item | G320ZAN01.0 |
| Size | 32 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 3840(RGB)*2160 (UHD) 137PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 708.48*398.52(H*V)mm |
| Outline Size | 727.3*424.5*20.98(H*V*D)mm |
| Bezel Area | 714.48*404.52(H*V)mm |
| Surface Treatment | Antiglare |
| Brightness | 3500cd/m² |
| Constrast Ratio. | 1350:1(TYP.)(TM.) |
| View Angle | 89/89/89/89(Min) |
| Display Model | AHVA, Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 8/10(Typ.)(TR/TD) |
| Display Color | 1.07B 100% Adobe RGB |
| Backlight | WLED, 50K hours, With LED Driver |
| Touch Screen | Without |
| Panel Weight | 4.63+/- 0.46Kgs |
| Frame Rate | 60Hz |
| Signal Interface | V-by-one 8 lane, 51 pins connector |
| Input Voltage | 12v(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
