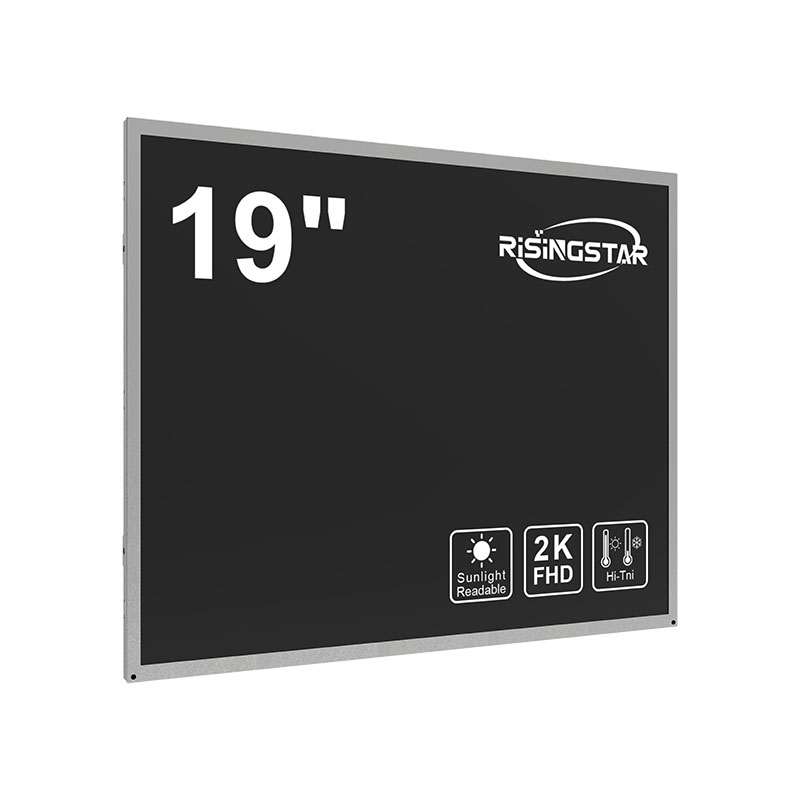

19" High Brightness 4:3 TFT/IPS LCD Screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
19" High Brightness LCD Display - All Models (RisingStar)
Normal Series (N Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS190ENT-NE05 | 500 | 1280 × 1024 |
| RS190ENT-NE10 | 1000 | 1280 × 1024 |
| RS190ENT-NE15 | 1500 | 1280 × 1024 |

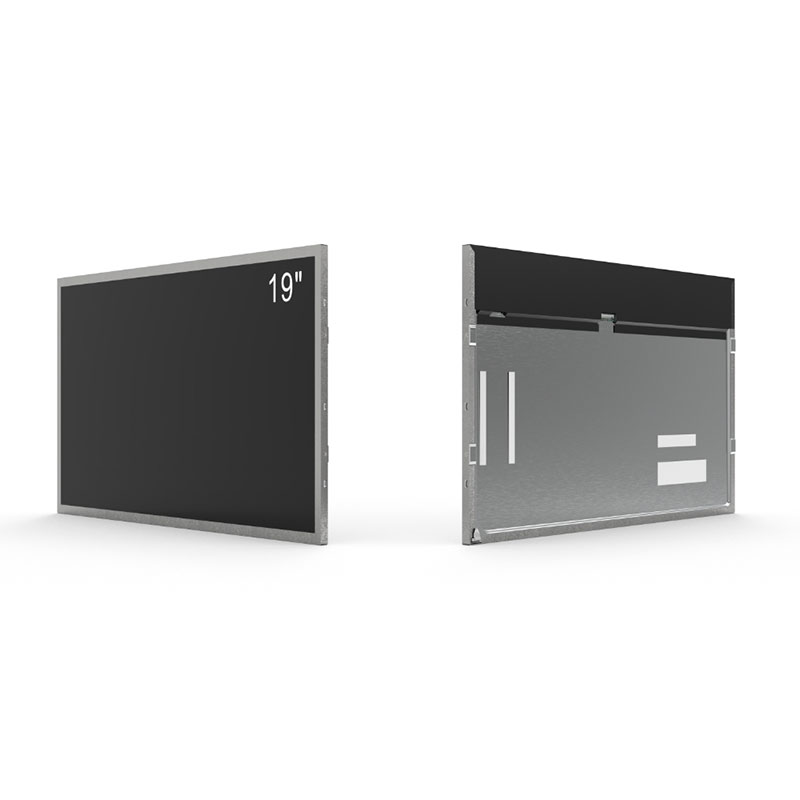

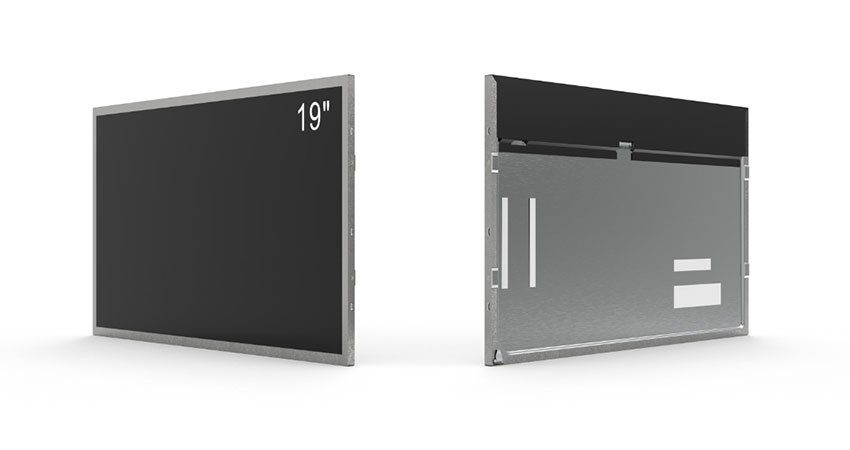

19.0" TFT-LCD Module – Specifications
Key Specifications
| Item | Description |
|---|---|
| Panel Size | 19.0 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA, 86 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 376.32 (W) × 301.056 (H) mm |
| Bezel Opening Size | 380.0 (W) × 305.08 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 1500 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) – Transmissive |
| Optimal Viewing Direction | - |
| Optical Mode | TN, Normally White, Transmissive |
| Available IPS-Type Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Available VA-Type Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle (CR≥10) | 85/85/80/80 (L/R/U/D) |
| Response Time (Tr/Td) | 3.6 / 1.4 ms (Typ.) |
| Color Depth | 16.7M, 72% NTSC |
| Backlight System | 11S4P WLED, 30,000 hrs, Driver not included |
| Module Weight | 1.70 kg (Typ.) |
| Refresh Rate | 75 Hz 120 Hz (60 Hz input) – Built-in MEMC 120 Hz + 120 Hz (panel + backlight) 240 Hz (60 Hz input) |
| Signal Interface | LVDS (2-channel, 8-bit), 30-pin |
| Power Supply Voltage | 5.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Recommended Use | Desktop Monitor |
Description
This 19-inch a-Si TFT-LCD module is designed for industrial-grade performance, combining a wide brightness range (500–1500 nits) with stable TN technology and optional IPS/VA equivalents for enhanced contrast and viewing angle requirements. Its robust 3H anti-glare surface and high contrast ratio ensure clear visibility in both indoor and semi-bright environments. With multiple refresh rate modes—including 120Hz MEMC and 240Hz options—it supports smooth motion display for advanced visualization scenarios. The module adopts an LVDS interface for compatibility with industrial systems and offers long-life WLED backlighting for reliable 24/7 operation.
Applications
This 19.0" LCD module is suitable for industrial, commercial, and professional display systems, including:
Desktop monitors and office displays
Industrial control HMI panels
Factory automation systems
Test and measurement equipment
Server room monitoring displays
Security and surveillance displays

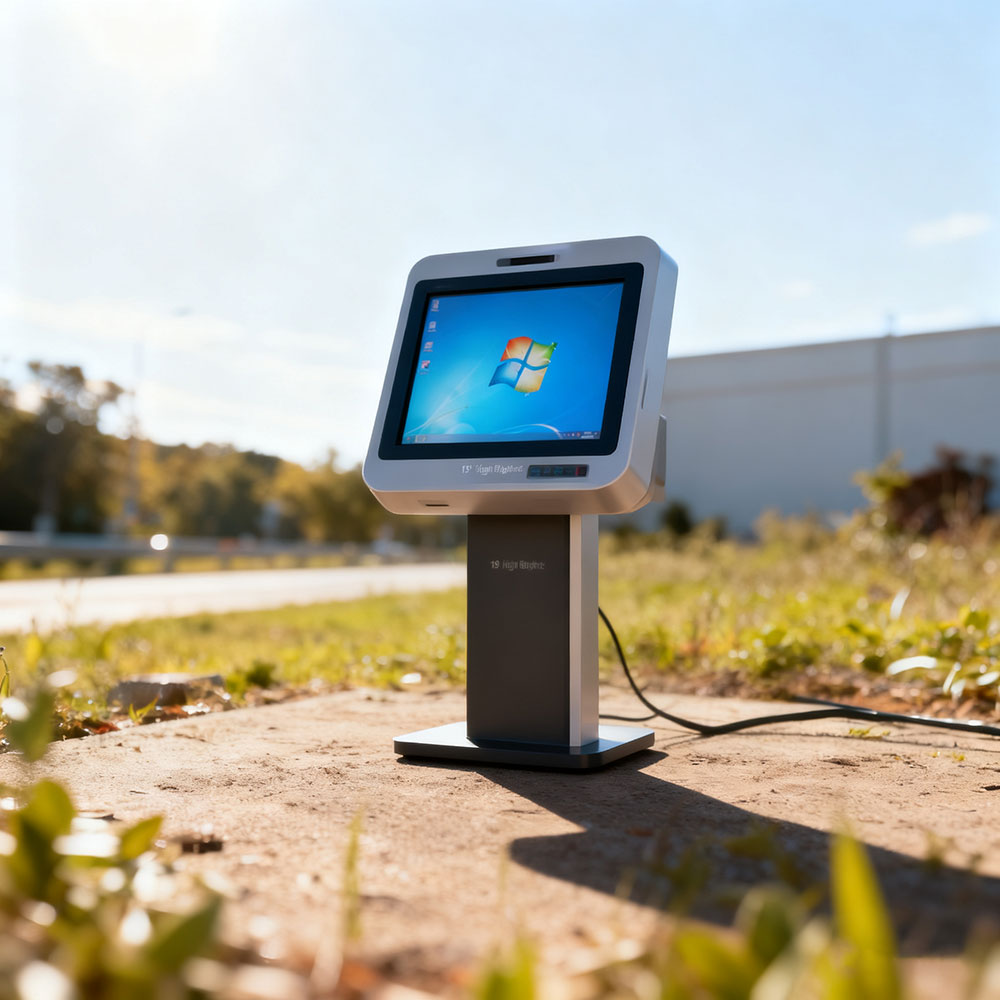

Kiosks and information terminals
Transportation control platforms (railway, airport, subway)
Its durability, wide temperature tolerance, and extended backlight lifetime make it highly suitable for environments requiring consistent visual performance and long service life.
Key Specifications
| Item | Description |
|---|---|
| Panel Size | 19.0 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA, 86 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 376.32 (W) × 301.056 (H) mm |
| Bezel Opening Size | 380.0 (W) × 305.08 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 ~ 1500 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) – Transmissive |
| Optimal Viewing Direction | - |
| Optical Mode | TN, Normally White, Transmissive |
| Available IPS-Type Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Available VA-Type Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle (CR≥10) | 85/85/80/80 (L/R/U/D) |
| Response Time (Tr/Td) | 3.6 / 1.4 ms (Typ.) |
| Color Depth | 16.7M, 72% NTSC |
| Backlight System | 11S4P WLED, 30,000 hrs, Driver not included |
| Module Weight | 1.70 kg (Typ.) |
| Refresh Rate | 75 Hz 120 Hz (60 Hz input) – Built-in MEMC 120 Hz + 120 Hz (panel + backlight) 240 Hz (60 Hz input) |
| Signal Interface | LVDS (2-channel, 8-bit), 30-pin |
| Power Supply Voltage | 5.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
