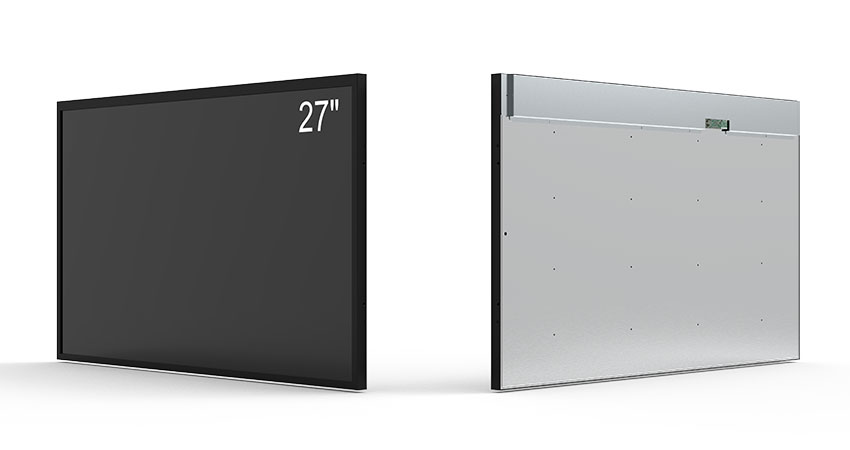

27" High Brightness TFT/IPS LCD Screen
RS270ENT-NE10: 27" 500+ nits high-brightness LCD. 1920x1080, FHD, 81 PPI. Purpose-built for public kiosks and advertising displays.
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Sample Order
1 Unit MOQ
Bulk Order
10+ Units
Tiered Discounts
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
27" High Brightness LCD Display – All Models (RisingStar)
Normal Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS270ENT-NE05 | 500 | 1920 × 1080 |
| RS270ENT-NE10 | 1000 | 1920 × 1080 |
| RS270ENT-NE15 | 1500 | 1920 × 1080 |
Normal Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS270ENT-ND20 | 2000 | 1920 × 1080 |
| RS270ENT-ND25 | 2500 | 1920 × 1080 |
27.0" a-Si TFT-LCD Module Specification
Key Specifications
| Item | Description |
|---|---|
| Panel Size | 27.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 81 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 597.6(W) × 336.15(H) mm |
| Viewing Area | 601.6(W) × 340.15(H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 500 ~ 2500 nits (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) (L/R/U/D) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Panel Technology Notes | IPS Type: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Type: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 7 / 5 ms (Typ., Tr/Td) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight Type | 15S4P WLED, 40,000 hrs, Driver Not Included |
| Refresh Rate | 75Hz 120Hz (60Hz input) with built-in MEMC 120Hz + 120Hz (Panel + Backlight) 240Hz (60Hz input) |
| Panel Weight | 2.18 kg (Typ.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30-pin |
| Driving Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Recommended Application Fields
This 27-inch high-performance LCD panel is suitable for:
Computer Monitors / Office Displays
Professional Workstation Screens
Gaming Monitors (with MEMC / high refresh compatibility)
Industrial PCs and Control Terminals
Medical Display Equipment
Business / Education Display Terminals
| Item | Description |
|---|---|
| Panel Size | 27.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 81 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 597.6(W) × 336.15(H) mm |
| Viewing Area | 601.6(W) × 340.15(H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 500 ~ 2500 nits (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) (L/R/U/D) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Panel Technology Notes | IPS Type: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Type: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 7 / 5 ms (Typ., Tr/Td) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight Type | 15S4P WLED, 40,000 hrs, Driver Not Included |
| Refresh Rate | 75Hz 120Hz (60Hz input) with built-in MEMC 120Hz + 120Hz (Panel + Backlight) 240Hz (60Hz input) |
| Panel Weight | 2.18 kg (Typ.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30-pin |
| Driving Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
RS270ENT-NE10
27 inch high brightness display
27 inch sunlight readable LCD
High brightness display
Sunlight readable display
Outdoor waterproof display
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
