Curve 32 inch touched LCD panel for gaming monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Curve 32 inch touched LCD panel for gaming monitor
The curved monitors wrap the player in the favorite games, compared with the flat monitor, the curved monitor help surround the player with the gaming experience to hit a great level of immersion
RS320ENT-N03CG is RisingLCD 32 inch curved lcd panel that using the projected capacitive touch technology, with a 32inch curve screen, high contrast 4000:1, and high resolution 1920*1080, refresh rate 60Hz, Curvature rate 1500mm that is a best curved monitors help immerse you in your favorite gameworld.
RisingLCD can offer you a series of Curve LCD panel to you,
sizes are 32 inch, 43inch, 49 inch 55inch,
Radius are : 1000mm, 1500mm or1800mm
Portrait or landscape mode are all supported,
Integrated Projected Capacitive (PCAP) Multi-touch are optional.

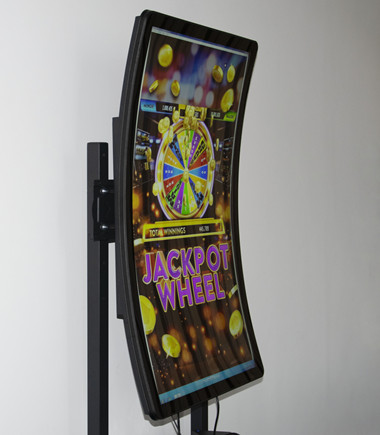

The curve display is the enhanced solution for casino slot machines, gaming, signage, kiosks and other public information terminals
| Item No | RS320ENT-N03CG |
| Size | 32 inch |
| Radius of Curvature | 1500 R |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920*1080 |
| Brightness | 350 nits |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 698.4*392.85 (H×V) mm |
| Dispay Mode | IPS |
| Aspect Ratio: | 16:9 |
| Contrast ratio | 4000:1 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | Normally Black, Transmissive |
| Surface treatment | Hard coating(2H), Antiglare |
| Display Color | 16.7B 72% NTSC |
| Refresh Rate | 60Hz |
| Curvature Rate: | 1500mm |
| Backlight | WLED , 50K hours , W/ LED Driver |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
