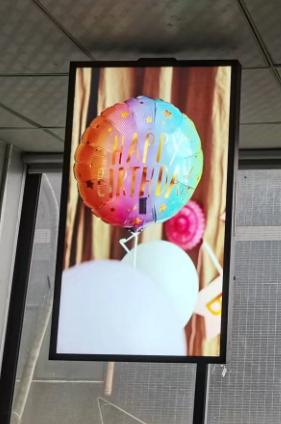

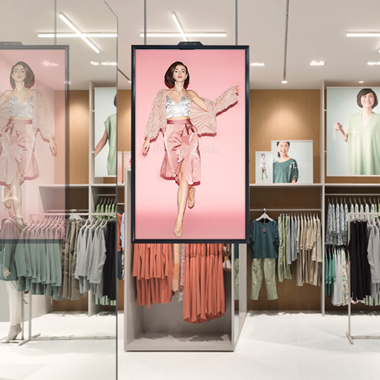

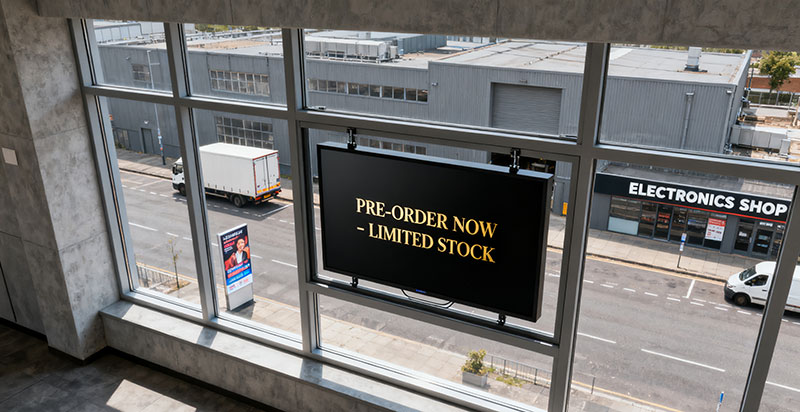

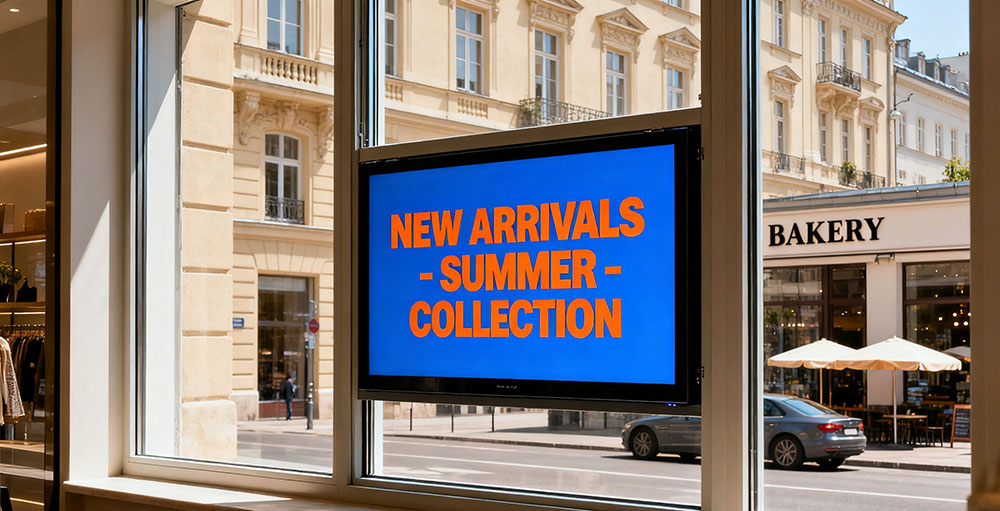

RisingLCD RS550ENT-ND30 is a high bright LCD display, withindow-facing display, size 55inch, brightness is 3000 cd/m², that display is equiped with AUO original screen model P550HVN06.4, that characterizes with a great resolution 1920*1080 (FHD) and 4000:1 constrast ratio, the highlight display is applied to window facing display, Digital Signage, Interactive Whiteboard etc.

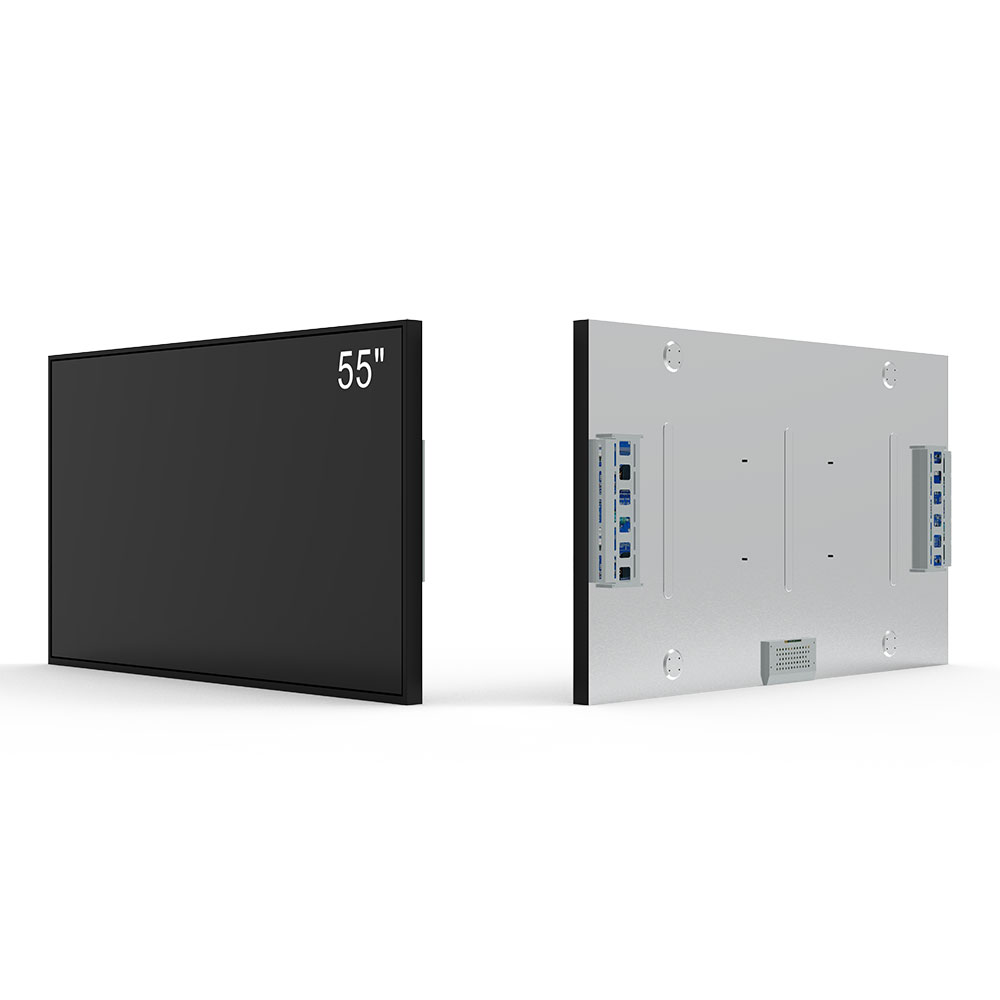

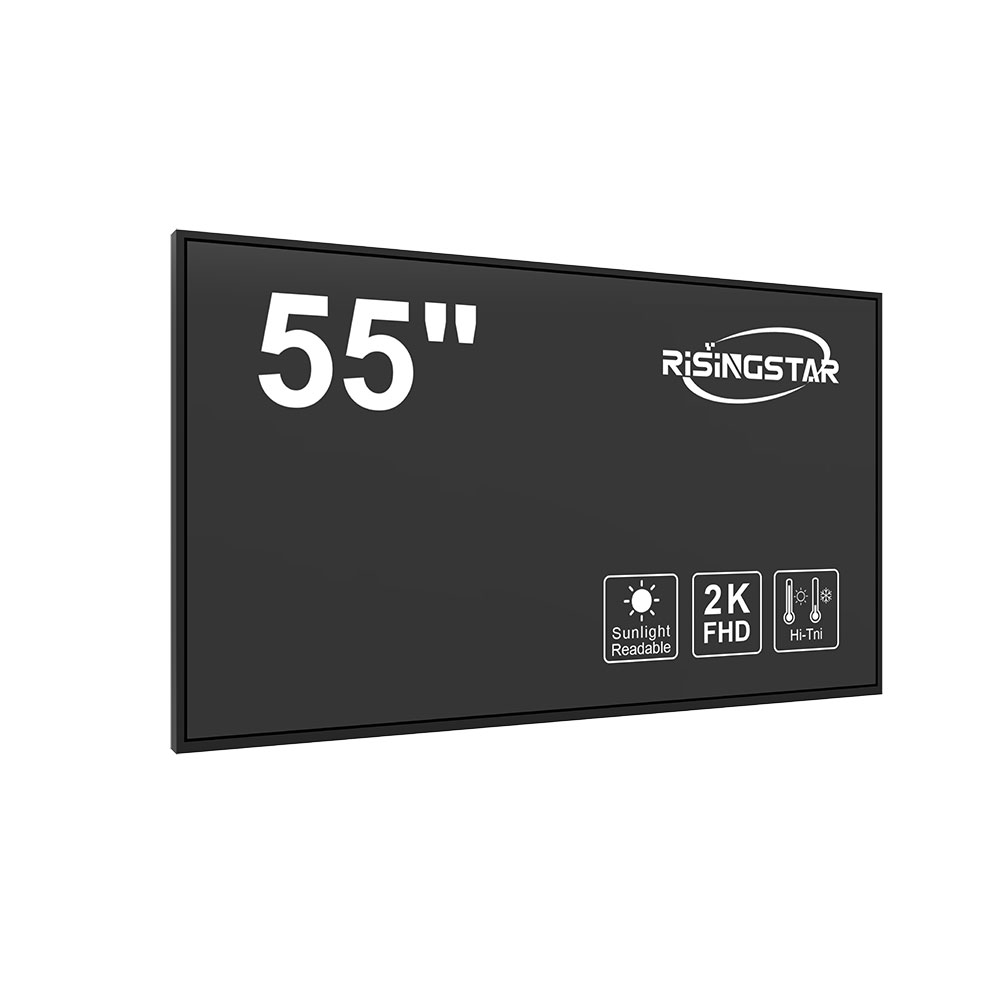

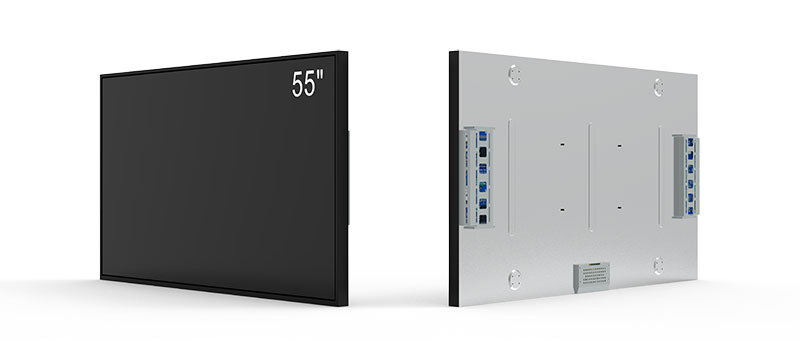

RS550HVN-ND30 is a 55-inch high brightness TFT LCD panel from Risingstar, use the own design backlight structure allows the brightness reach 3000-nits, which is far higher than the general LCD panels and can be used by other manufacturers such as info kiosk maker, outdoor advertising player maker, outdoor tv maker, etc.
Risingstar LCD panels always has far higher brightness than most of our competitors, for the specific 55-inches we can reach 4500 nits even much higher, more information please searching on our website: www.risinglcd.com
Size (inch) | 32 | 43 | 49 | 55 | 65 |
Model number | RS320FHB-ND20 | RS430ENT-ND25 | RS490ENT-ND20 | RS550HVN-ND30 | RS650QUB-GD15 |
Brightness (cd/m2) | 2000 | 2500 | 2000 | 3000 | 1500 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
Contrast ratio | 1200:1 | 1200:1 | 1200:1 | 4000:1 | 1200:1 |
Operating temperature | 0 ~ 50℃ | 0 ~ 50 ℃ | 0 ~50℃ | 0 ~ 50℃ | -30 ~ 80℃ |

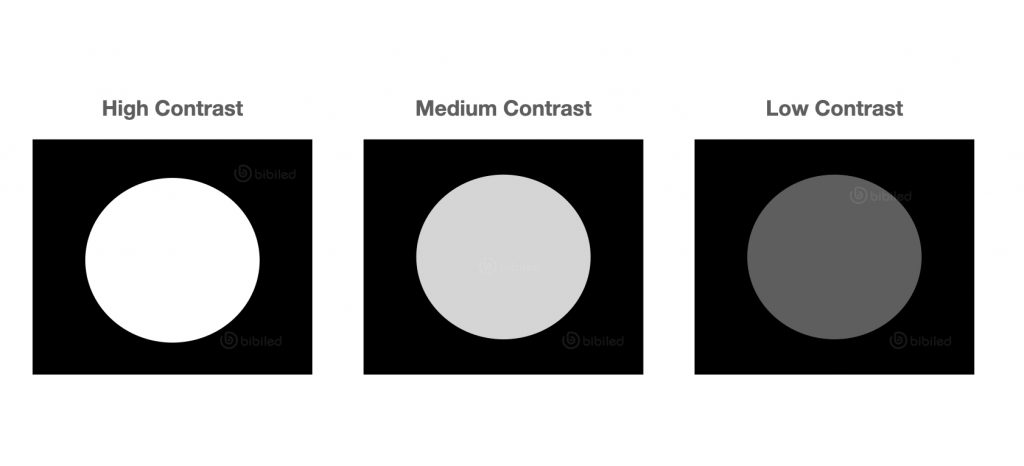

Out of the ordinary: This LCD panel use open-cell P550HVN06.4 from AUO, has much higher contrast ratio than the general open-cells, could reach 4000:1 even higher; high contrast ratio means the display can showing much detail with same image, give the monitor better color performance.
Top grade Open-cells: Risingstar has the ability to make our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

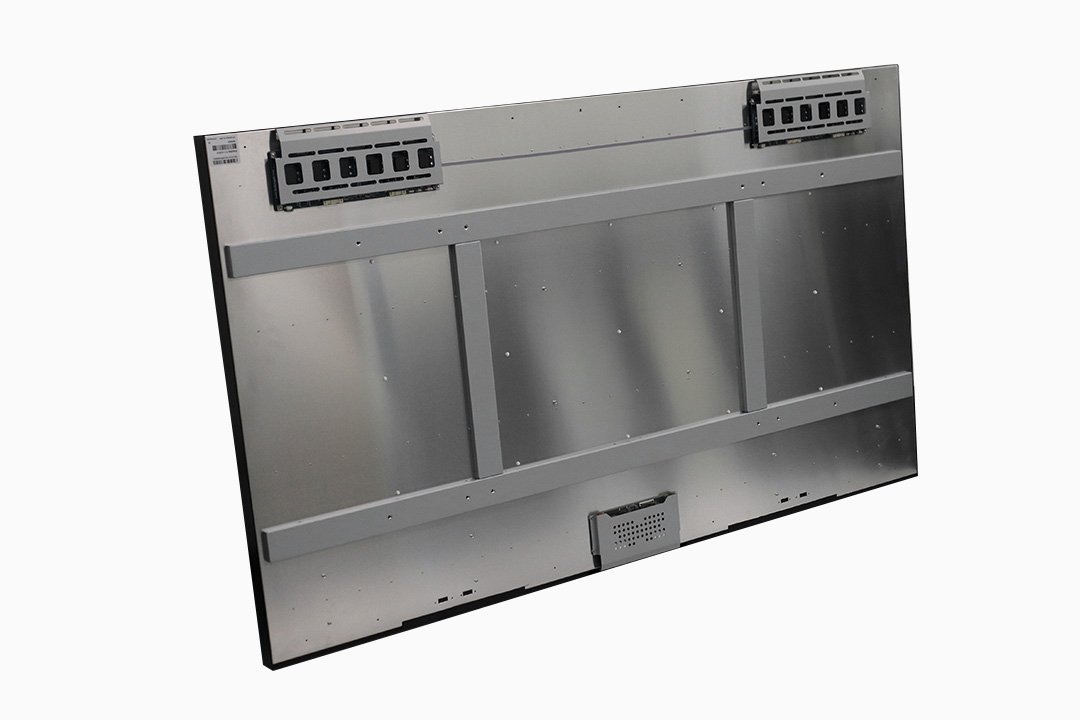

Full aluminum customize housing: All the LCD panels from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.
Direct-LED backlight structure: Risingstar own design LED bubble is directly under the open-cells of this panel, which allows the LCD panel can reach its maximum brightness, for the specific 55-inch panel, it can be 4500-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offer industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels are able to afford 110℃ surface temperature for a while, more details and data please contact with us.
Ultra wide viewing angle: Most of the Risingstar LCD panels using IPS screen, which has extremely high viewing angle could reach 178° in both horizontal and vertical direction.
High brightness LCD panel:
49 inch 2000 nits high brightness TFT LCD panel
43 inch FHD high brightness TFT LCD panel
32 inch 1500 nits high brightness TFT LCD panel
| Factory Model No: | RS550HVN-ND30 |
| Panel Brand | AUO Display |
| Panel No.: | P550HVN06.4 |
| Screen Size | 55" |
| Panel Technology | IPS, M+ (WRGB) |
| Active Area(mm) | 1209.6*680.4 (H×V)mm |
| Panel Type. | a-Si TFT-LCD, CELL |
| Aspect Ratio | 16:09 |
| Native Resolution | 1920*1080(FHD) 40PPI |
| Refresh Rate | 60Hz |
| Brightness | 3000nit (Typ, w/ Glass) |
| Contrast Ratio | 4000:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | 1.07B, 72% NTSC |
| Viewing Angle (H x V) | 178 x 178 |
| Support Color: | 1.07B, |
| Response Time | 8 (Typ.) (G to G)ms |
| Display Mode | AMVA3, normally Black, Transmissive |
| Surface Treatment (Haze) | Reflection , 1.45%(Max) |
| Life time | 50,000 Hrs (Typ) |
| Operation Hours (Hours/Day) | 24/7 |
| Operating Temperature: | 0 ~ 50 °C |
| Storage Temperature: | -20 ~60 °C |
| Portrait / Landscape | Yes / Yes |
| Jack interface input | HDMI (2), , RS232C IN (4pin phone jack), RJ45(LAN), IR IN, USB2.0 Type A (1) |
| Jack interface output | DP Out (Input DP/HDMI), Externel Speaker Out (L/R, 10W+10W), RS232C OUT |
| Net work support | LAN/WLAN/3G/4G/5G network. |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
