43" dual sided floor standing window facing display

43" dual sided floor standing window facing display

Panel BrandBOE
Model nameRS430ENT-N20
Screen size43"
Screen typeLCD Monitor
Resolution1920*1080
Brightness (cd/m²)400-1500
Overview Specifications Customized Services Support & Shipping

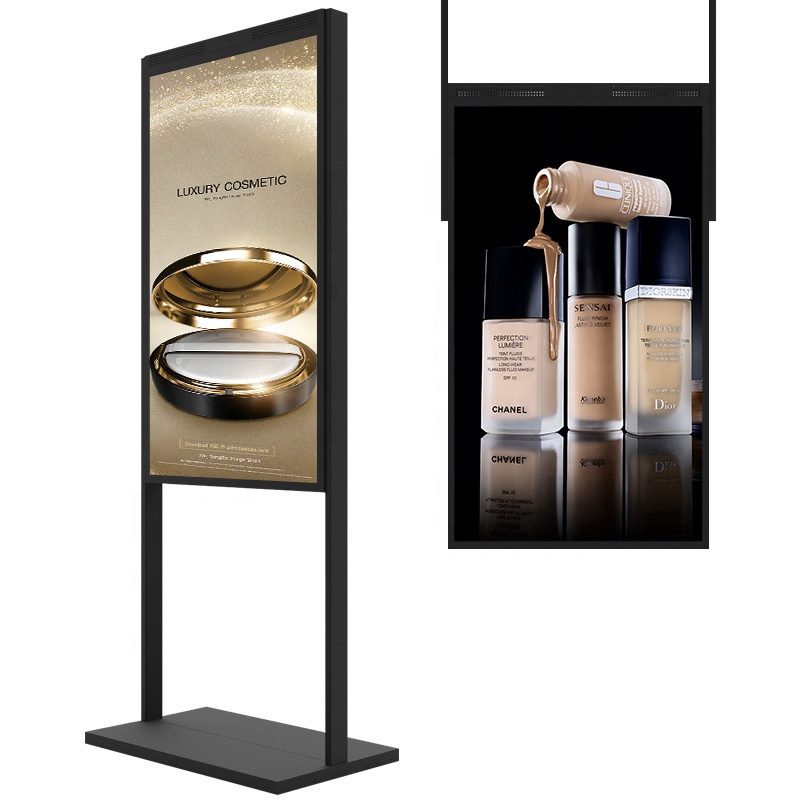

43" dual sided floor standing window facing display

RisingLCD 43 inch dual-sided floor standing window facing displays are specially designed for the showcase, street stores, clothing stores, and commercial application to attact potential customers by the eye-catching advertisement.

The dual side mount is the ideal solution not only save the space but also can prompt their brands and products from indoor and outdoor.

The floor standing display with a multitude of installer friendly features, it easily stall and concealed cable management for a professional appearance.

This window facing display provides information related to the advertisement, wayfinding, event broadcasting, sales and so on, it can prompts your company, your brand with video, audio, custom graphics and images. It supports multi systems, android system and window system are optional

Our dual sided floor standing displays are offered in a variety of sizes and configurations for any commercial purpose.

Installation: floor standing installed behind the windows of the restaurant or restails store. Horizonal and vertical screen switching.

OEM and ODM are welcomed!

RisingLCD Advantage:

OEM/ODM is acceptable!

Small MOQ is acceptable!

Competitive price!

Fast Delivery time!

RisingLCD is your best choice!

RS430ENT-N20 43 inch high brightness display 43 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
specification Parameter
Factory Item NoRS430ENT-N20
Size43   inch
Panel BrandBOE
Panel NoDV430FHM-NN3
Display Area941*529.4mm
Brightness400-1500nits
Resolution1920*1080
Aspect Ratio16:09
Contrast4000：1
Response Time6/9   (Typ.)(Tr/Td) ms
View Angle89/89/89/89   (Min.)(CR≥10)
LEDDLED
Lifetime50000H
Intelligent dimmingSupport
Intelligent temperature controlSupport
Remote ControlSupport
Input VoltageAC90-264V,50/60HZ
Maximum Power265W
Shell MaterialMetal   Plate
Product Dimensions986*574*89mm
Weight28KG
environmental conditionsSemi-outdoor
Operating temperature & humidity-20℃ ~ 70℃
Main-boardAndroid   /PC/ HD Driver Board (Optional)
IO interfaceHDMI/VGA/DVI/USB/RJ45
Application: Advertising   publish, retail store, shopping mall, welcome display
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
