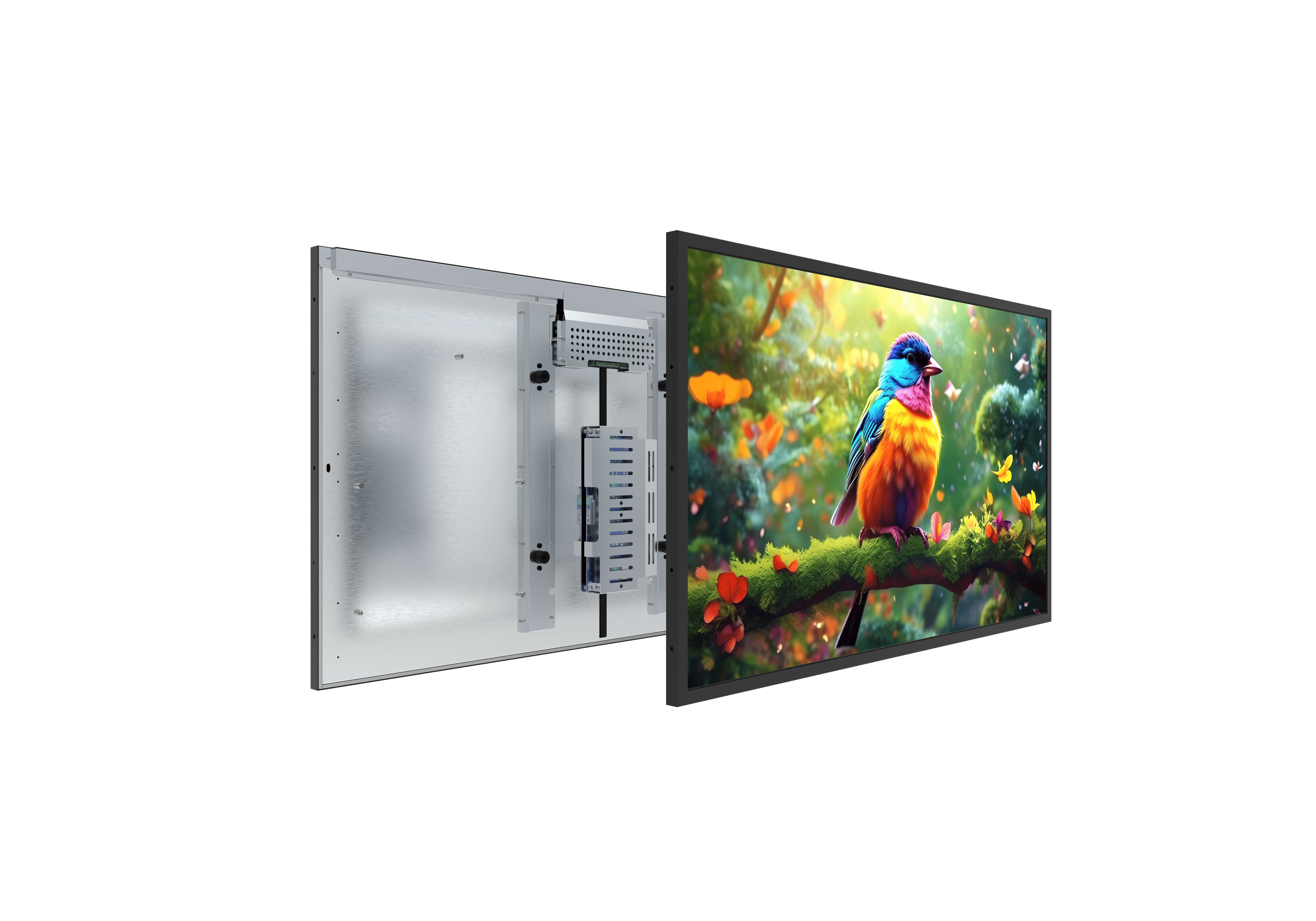

32 inch high brightness with the thin bezel not only gives these displays a stylish, modern aesthetic, but also means maximum attention is drawn to the on-screen content for high impact messaging.

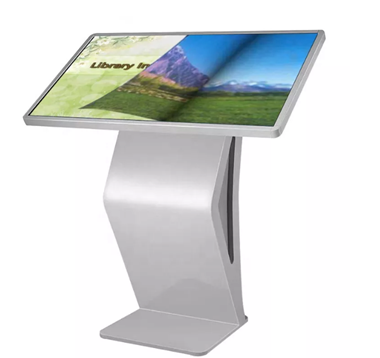

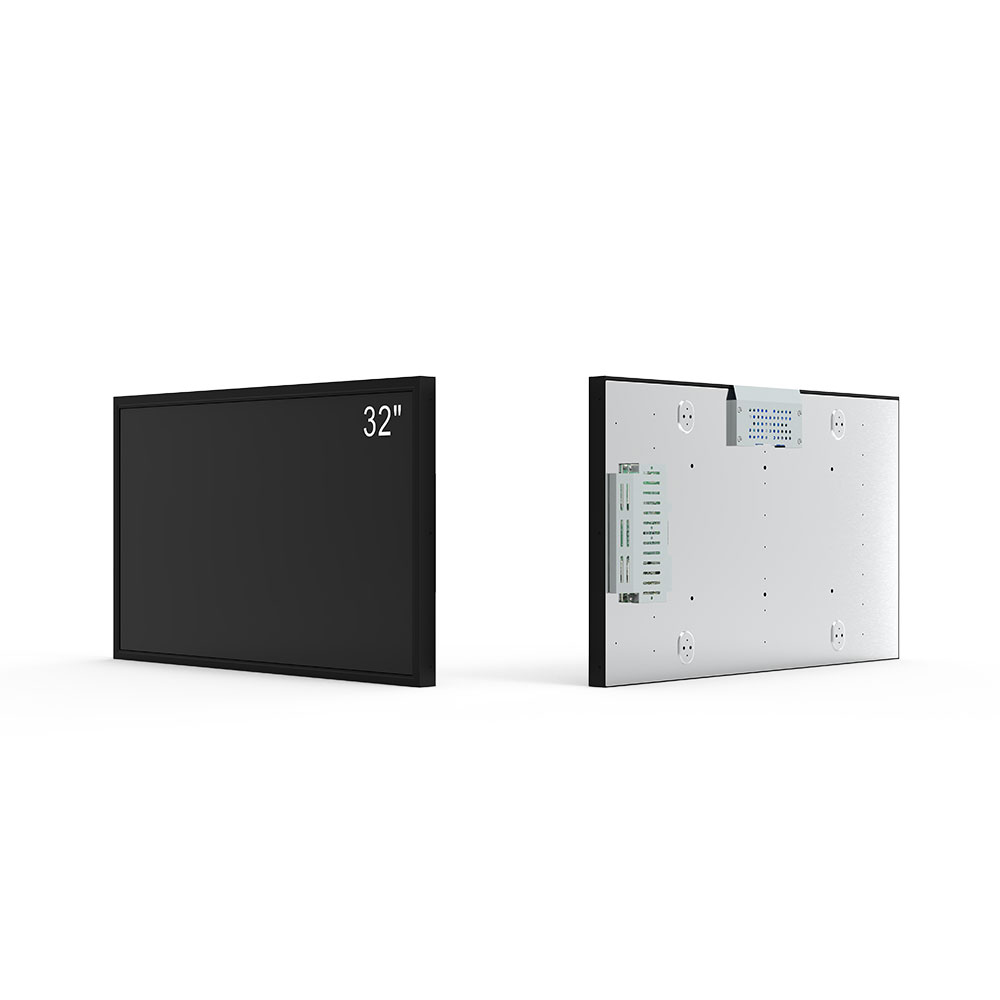

RS320FHB-GD20-OD06 is a 32-inch high brightness TFT LCD panel from Risingstar, this is one of special products in our list: much thinner than other general DLED LCD panels, can be used by other manufacturers such like info kiosk maker, outdoor advertising player maker, outdoor tv maker, etc.
Risingstar LCD panels always has far higher brigthness than most of our competiters, for the specific 32-inches DLED LCD panel we can reached 4000 nits, more information please searching on our website:
Size (inch) | 32 | 43 | 49 | 55 | 75 |
Model number | RS320FHB-GD20 | RS430ENT-ND30 | RS490ENT-ND20 | RS550ENT-ND25 | RS750ENT-ND40 |
Brightness (cd/m2) | 2000 | 3000 | 2000 | 2500 | 4000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 3840*2160 |
Contrast ratio | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 1200:1 |
Opreating temperature | 0 ~ 50℃ | 0 ~ 50 ℃ | 0 ~50℃ | 0 ~ 50℃ | 0 ~ 50℃ |

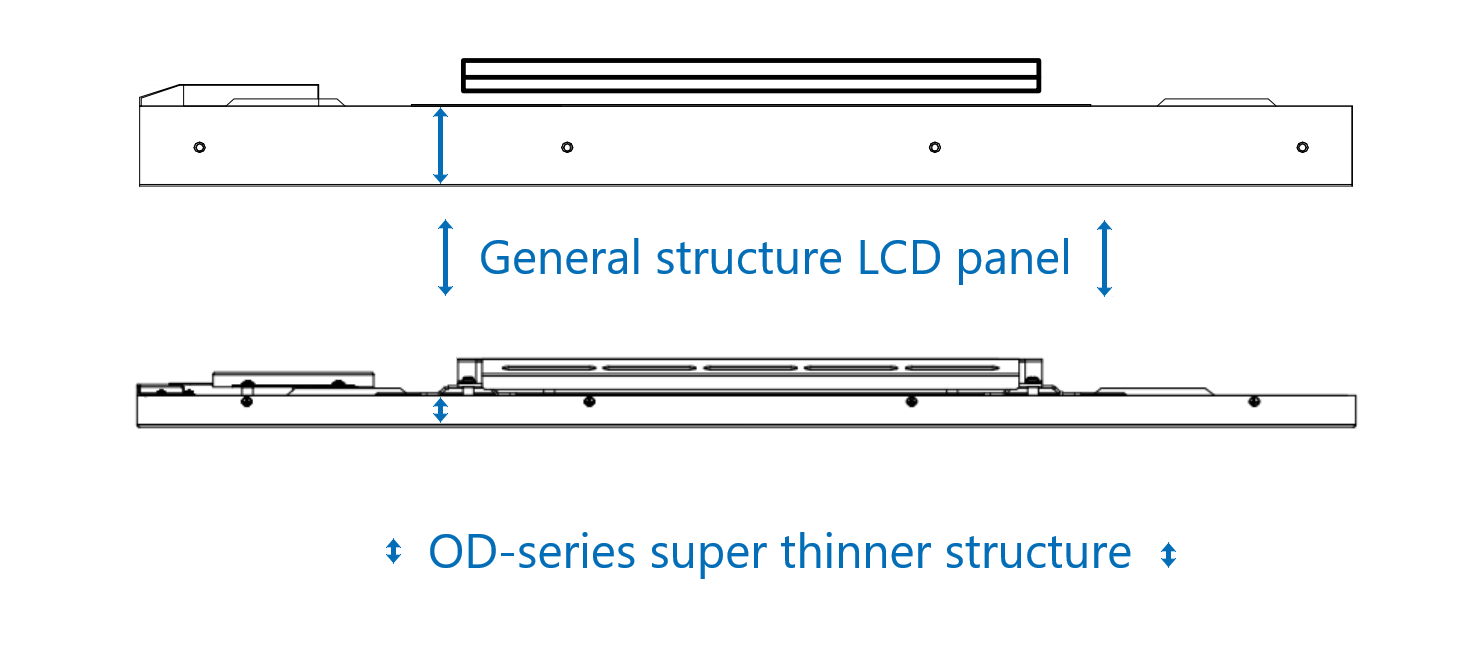

Out of the Ordinary: This product has "OD06" at the end of its model number, which represent the maximum distance between open-cell and backlight of this product is 6mm away from each other; this means the engineer need considering about the effects of temperature and light intensity by this slim gap, the material of the display also need be top-grade to adapt this design.
Top grade Open-cells: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high qualtiy displays for each of our customers.

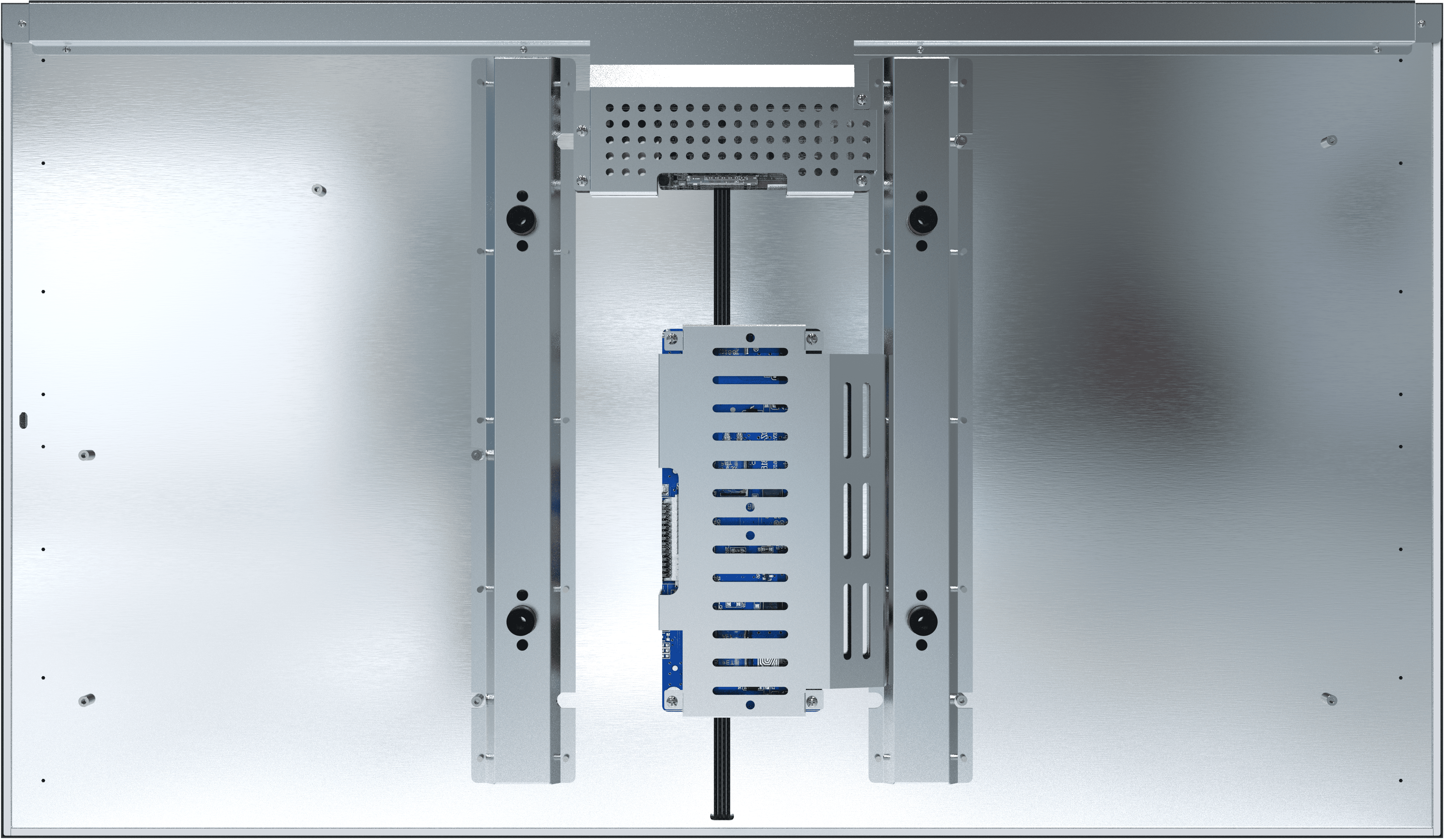

Full aluminum customize housing: All the LCD panel from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.
Direct-LED backlight structure: Risingstar own design LED buble is directly under the open-cells of this panel, which allowed the LCD panel reached maximum brightness, for the sepcific 32-inch panel, it can reached 4000-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offered industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels able to afford 110℃ surface temperature for a while, more details and data please contact with us.
Ultra wide viewing angle: Most of the Risingstar LCD panels using IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
High brightness LCD panel:
49 inch 2000 nits high brightness TFT LCD panel
43 inch FHD high brightness TFT LCD panel
32 inch 1500 nits high brightness TFT LCD panel
| Screen Diagonal | 32 inch |
| Brand | Risingstar |
| Model No | RS320FHB-GD20-OD06 |
| Active Area | 698.4(W)×392.85(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 69PPI |
| Physical Size | 726.5（H）*420.9(V)*20.8(D) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1200:1 |
| White Luminance ( Center ) | 2000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 15 (Typ.)(G to G) |
| Nominal Input Voltage | 12.0V (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 4.85kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins |
| Support Color | 16.7M/1.07B |
| Surface Treatment | Matte (Haze 1%) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -20 ~ 70 °C |
| Ultra bezel | 12.5 mm bezel |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
