43 inch 700 nits high brightness LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

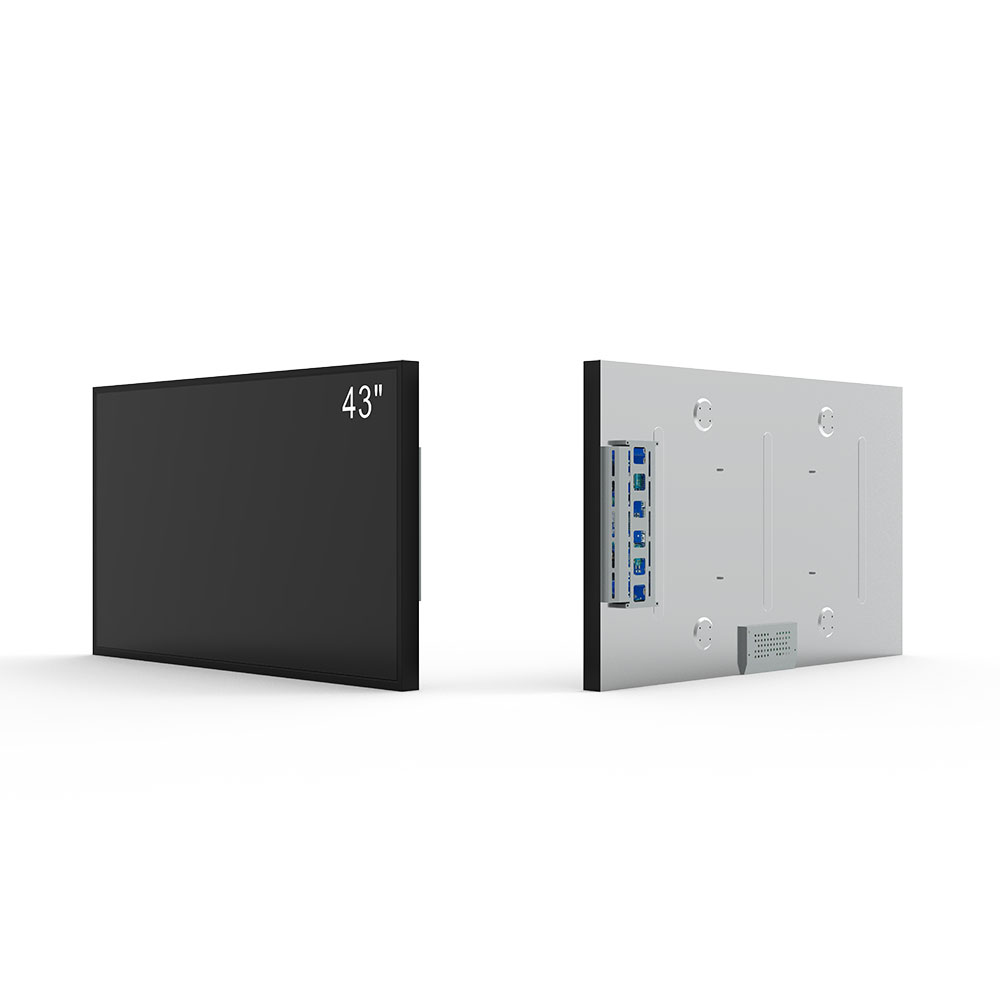

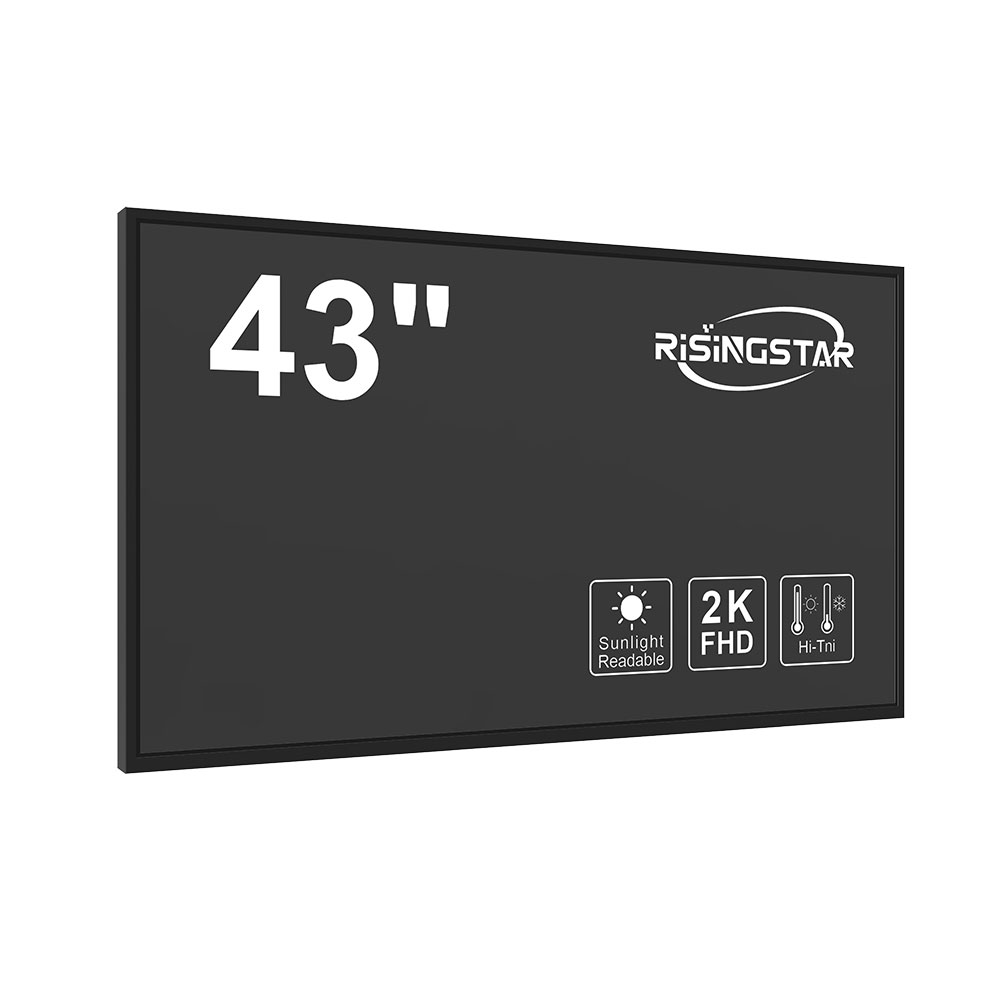

RS236HJJ-NE07 is 43 inch TFT LCD panel with 700 nits high brighness, 1920*1080 full HD resolution, 89/89/89/89 wide viewing angle, often used for any embedded systems, security and hand-held equipment which requires display in high quality.
RS236HJJ-NE07 high brightness main features:
1. High Brightness 1800 nits
2. Sunlight Readable
3. 3000 : 1 high contrast ratio
4. Wide Viewing Angle of 178°(H), 178°(V)
5. Low Power Consumption
6. BL MTBF: 15,000 hours

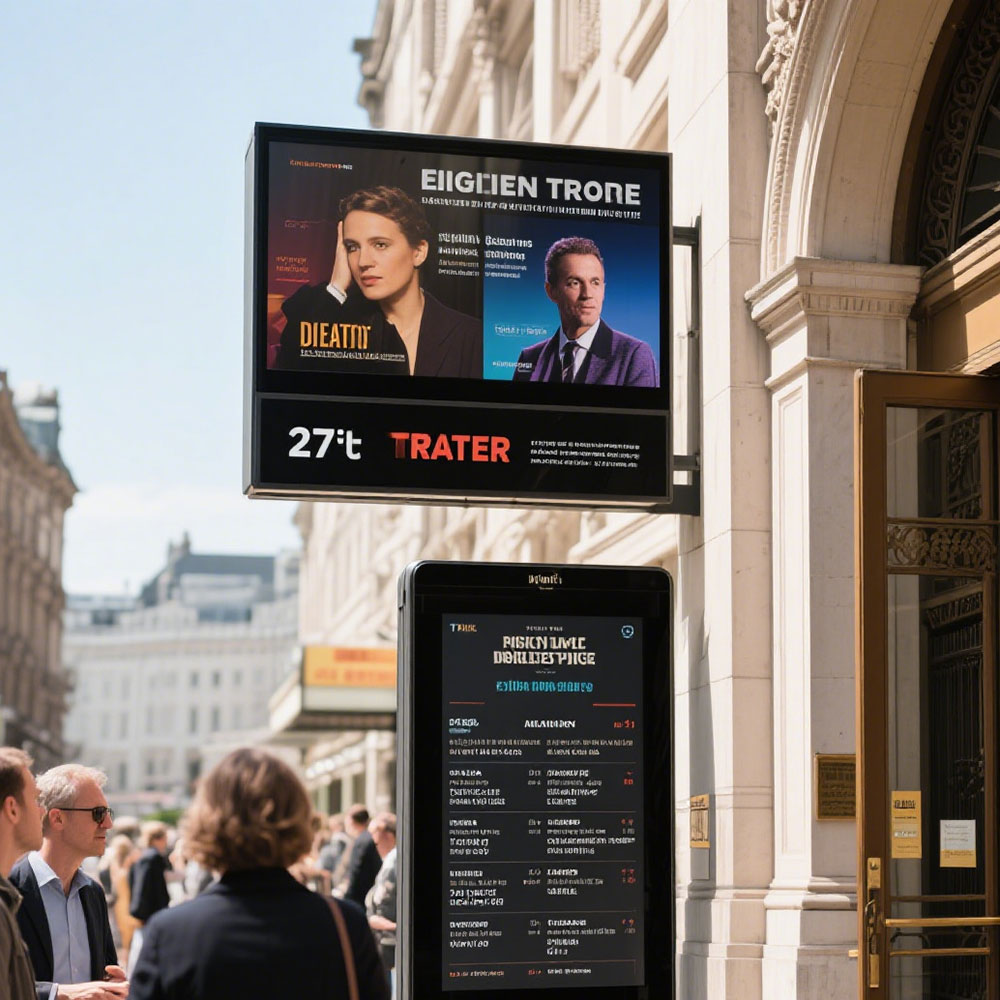

RisingLCD can offer the high brightness LCD screen from 10.1 inch to 110 inch, and brightness from 700 nits to 5000 nits, high brightness displays provide a vibrant and bright solution for embedded system, window advertising, traffic information, they are perfect for the outdoor digital signage application in airport, bus/train/raiway/ station and retail shop window.
43-Inch a-Si TFT-LCD Panel Specifications
| Item | Specification |
|---|---|
| Panel Size | 43 inches |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1920 (RGB) × 1080 (FHD), 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 941.184 (W) × 529.416 (H) mm |
| Bezel Opening Area | 945.8 (W) × 534.02 (H) mm |
| Surface Treatment | Anti-glare (Haze 1%), Hard Coating (3H) |
| Brightness (Typ.) | 1000–5000 nits |
| Contrast Ratio (Typ.) | 1100:1 (TM) |
| Viewing Angle (Min.) | 89/89/89/89 (L/R/U/D) (CR ≥ 10) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Wide Viewing Tech | Compatible with: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Response Time (Typ.) | 12 ms (Tr + Td) |
| Display Colors | 16.7M, 68% NTSC |
| Backlight Type | 2 strings WLED, 50,000 hours lifetime, Driver Not Included |
| Refresh Rate | 60Hz (Input) Optional: MEMC 120Hz, 120Hz+120Hz, 240Hz (Input 60Hz) |
| Touch Screen | Not Supported |
| Panel Weight | 7.50 kg (Typ.) |
| Application | Digital Signage |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
43-Inch a-Si TFT-LCD Panel Specifications
| Item | Specification |
|---|---|
| Panel Size | 43 inches |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1920 (RGB) × 1080 (FHD), 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 941.184 (W) × 529.416 (H) mm |
| Bezel Opening Area | 945.8 (W) × 534.02 (H) mm |
| Surface Treatment | Anti-glare (Haze 1%), Hard Coating (3H) |
| Brightness (Typ.) | 1000–5000 nits |
| Contrast Ratio (Typ.) | 1100:1 (TM) |
| Viewing Angle (Min.) | 89/89/89/89 (L/R/U/D) (CR ≥ 10) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Wide Viewing Tech | Compatible with: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Response Time (Typ.) | 12 ms (Tr + Td) |
| Display Colors | 16.7M, 68% NTSC |
| Backlight Type | 2 strings WLED, 50,000 hours lifetime, Driver Not Included |
| Refresh Rate | 60Hz (Input) Optional: MEMC 120Hz, 120Hz+120Hz, 240Hz (Input 60Hz) |
| Touch Screen | Not Supported |
| Panel Weight | 7.50 kg (Typ.) |
| Application | Digital Signage |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
