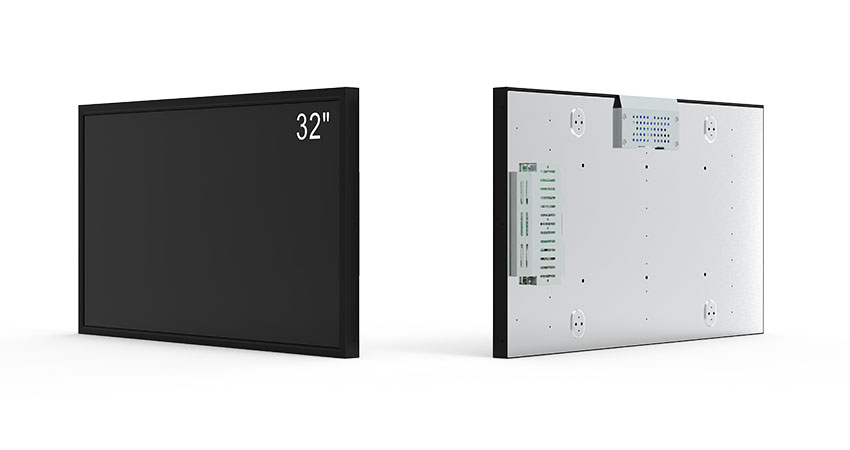

32" Industrial Ultra High Brightness LCD Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
32" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS320ENT-GD20 | 2000 | 1920×1080 / 3840×2160 |
| RS320ENT-GD25 | 2500 | 1920×1080 / 3840×2160 |
| RS320ENT-GD30 | 3000 | 1920×1080 / 3840×2160 |
| RS320ENT-GD35 | 3500 | 1920×1080 / 3840×2160 |
| RS320ENT-GD40 | 4000 | 1920×1080 / 3840×2160 |
| RS320ENT-GD45 | 4500 | 1920×1080 / 3840×2160 |
| RS320ENT-GD50 | 5000 | 1920×1080 / 3840×2160 |
Specification
| Item | Specification |
|---|---|
| Panel Size | 32.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD |
| Pixel Density | 139 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 697.306 (W) × 392.234 (H) mm |
| View Area | – |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness (cd/m²) | 2000 ~ 5000 nits |
| Contrast Ratio | 1300:1 (Typ., Transmission) |
| Best Viewing Angle | Wide View |
| Optical Mode | IPS, Normally Black, Transmissive |
| Compatible IPS Families | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Families (Reference) | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) Left/Right/Up/Down |
| Response Time | 14 ms (Typ., G to G) |
| Color Depth | 1.07B, 94% DCI-P3 |
| Backlight Type | 11S4P × 2CN WLED, 30,000 hrs, Driverless |
| Panel Weight | 4.52kg / 4.75kg (Typ./Max.) |
| Suitable For | PC Monitor, Industrial Display |
| Refresh Rate | 60Hz 120Hz (60Hz Input, Built-in MEMC) 120Hz + 120Hz Backlight 240Hz (60Hz Input, Built-in MEMC) |
| Signal Interface | eDP (4 lanes), HBR2 (5.4G/lane), 30-pin Connector |
| Supply Voltage | 10.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Professional English Description
This 32.0-inch a-Si TFT-LCD module delivers ultra-high-definition 3840×2160 resolution with a fine 139 PPI pixel density, making it ideal for detailed visual applications. The IPS optical mode ensures wide viewing angles of 89/89/89/89, consistent color accuracy, and stable image performance. With a robust brightness range of 2000 to 5000 nits, the display is suitable for both indoor and high-ambient-light industrial conditions.
The module features an anti-glare surface (Haze 25%) and 3H hard coating for durability. It offers 1.07 billion colors with 94% DCI-P3 coverage, ensuring excellent color reproduction. Enhanced motion performance is supported through multiple refresh configurations, including 120Hz MEMC and 240Hz MEMC modes.
A long-life WLED backlight (30,000 hours) and eDP 4-lane HBR2 interface make the panel versatile for integration into modern systems. The design supports reliable operation in environments from -20~70°C, with storage capability down to −20°C.
Application Scenarios
This 32-inch UHD high-brightness IPS panel is ideal for:
Industrial Uses
Industrial control terminals
Automation HMIs
Factory monitoring systems
Test & measurement equipment
Commercial Displays
High-brightness digital signage
Retail UHD displays
Kiosk displays
Information terminals
Computer & Gaming
4K high-end monitors
Video editing / design workstation monitors
Gaming displays with MEMC motion enhancement
Specialty Applications
Medical imaging (non-diagnostic)
Broadcast preview monitors
Simulation & training displays
| Item | Specification |
|---|---|
| Panel Size | 32.0 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD |
| Pixel Density | 139 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 697.306 (W) × 392.234 (H) mm |
| View Area | – |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness (cd/m²) | 2000 ~ 5000 nits |
| Contrast Ratio | 1300:1 (Typ., Transmission) |
| Best Viewing Angle | Wide View |
| Optical Mode | IPS, Normally Black, Transmissive |
| Compatible IPS Families | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Families (Reference) | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle | 89/89/89/89 (Typ., CR≥10) Left/Right/Up/Down |
| Response Time | 14 ms (Typ., G to G) |
| Color Depth | 1.07B, 94% DCI-P3 |
| Backlight Type | 11S4P × 2CN WLED, 30,000 hrs, Driverless |
| Panel Weight | 4.52kg / 4.7k5g (Typ./Max.) |
| Suitable For | PC Monitor, Industrial Display |
| Refresh Rate | 60Hz 120Hz (60Hz Input, Built-in MEMC) 120Hz + 120Hz Backlight 240Hz (60Hz Input, Built-in MEMC) |
| Signal Interface | eDP (4 lanes), HBR2 (5.4G/lane), 30-pin Connector |
| Supply Voltage | 10.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
