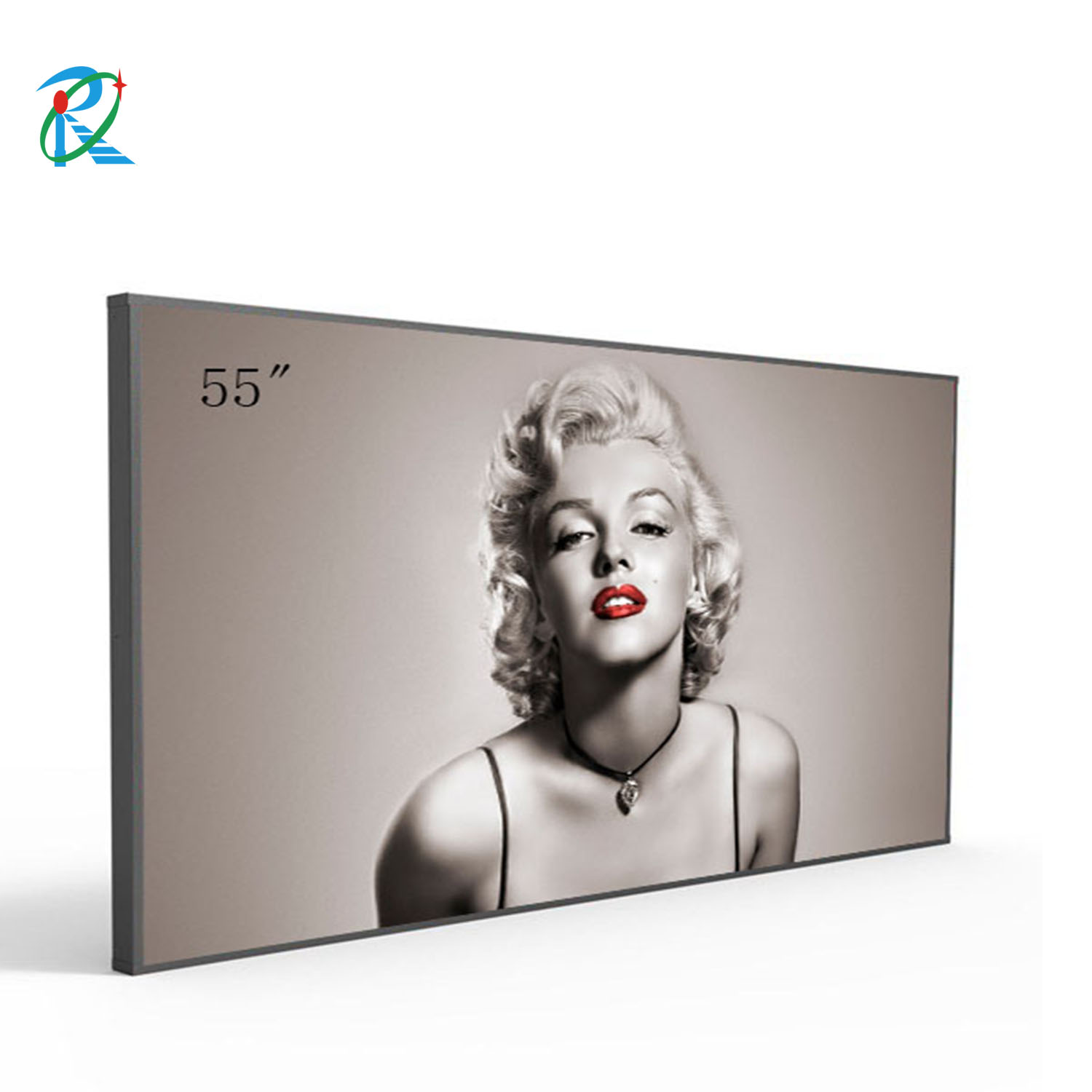

55 Inch Outdoor High Brightness TFT LCD Monitor
Techspecs:
Items | Specification | Note |
Panel Brand | Risingstar | |
Diagonal Size | 55" | |
Panel Type | a-Si TFT-Module | LG/BOE/AUO |
Resolution | 1920×1080 / 3840 × 2160 (RGB) | |
Pixel Format | RGB Vertical Stripe | |
Display Area | 1209.6×680.4mm (H×V) | |
Outline Size: | 1230.4×706.8×40mm (H×V×D) | |
Surface | Antiglare (Haze 1%), Hard coating (2H). | |
Brightness | 500 to 4000 cd/m² (Typ.) | |
Contrast Ratio | 1300:1 (Typ.) (TM) | |
waterproof level | / | |
Protection level | / | |
Support Color | 1.67B 100% NTSC | |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | |
Display Mode | IPS, Normally Black, Transmissive . | |
Response Time | 5 (Typ.)(G to G); 8 (Typ.)(MPRT). | |
Lamp Type | WLED , 50K hours , With LED Driver | |
Frequency: | 60Hz | |
Panel Weight | 16.65 Kgs (Typ./Max.) | |
Application | Outdoor digital signage | |
Signal Interface | LVDS | |
Input Voltage: | 24V ,110 to 260V (Typ.). | |
Operating Temperature | -20 ~ 70 °C | |
Storage Temperature | -30 ~ 80 °C |
Large outdoor high brightness TFT LCD display supplier
Risingstar production factory
The Risingstar 55 inch outdoor high brightness TFT LCD monitor is widely used in commercial applications. The high-brightness LCD module can be directly processed into an open display, digital signage, outdoor TV, outdoor monitor, the advantages of the product:
1. Using LG industrial-grade LCD panel, suitable for all weathers in the world;
2. The direct-lit backlight design is more reliable in heat dissipation;
3. Optical materials pass the 120℃ reliability test;
4. The backlight driver supports 3 adjustment methods;
5. The product structure adopts aluminum alloy material;
6. Support double-sided display
7. Support horizontal screen and vertical screen playback mode;
55 Inch Outdoor High Brightness TFT LCD Monitor
55 inch outdoor high brightness TFT LCD display application case
55 inch outdoor high brightness TFT LCD display mall case
