RisingLCD industrial high Tni LCD display is designed for industrial applications in the Control field and other special testing device that require a 1920 x 1080 (1080P) compatible monitor with open frame, ultra-high brightness display (1200 nits) with full 178 degree viewing angles. The rugged, metal construction of the monitor ensures exceptional stability, especially important when touchscreen operation is necessary
Size:
21.5 inch industrial High TNi open frame LCD display
RisingLCD industrial high Tni LCD display is designed for industrial applications in the Control field and other special testing device that require a 1920 x 1080 (1080P) compatible monitor with open frame, ultra-high brightness display (1200 nits) with full 178 degree viewing angles. The rugged, metal construction of the monitor ensures exceptional stability, especially important when touchscreen operation is necessary
Main features:
True industrial grade and high TNi LCD Panel
Wide Operational Temperature Range
1200 nits (cd/m2) high brightness
Long-Life Advanced LED Backlights
IPS (In-Plane Switching technology) panel
Multitude of Computer & Video Inputs Combinations Available
Anodized aluminum alloy
3-Year Warranty
High Environmental Performance and Reliability

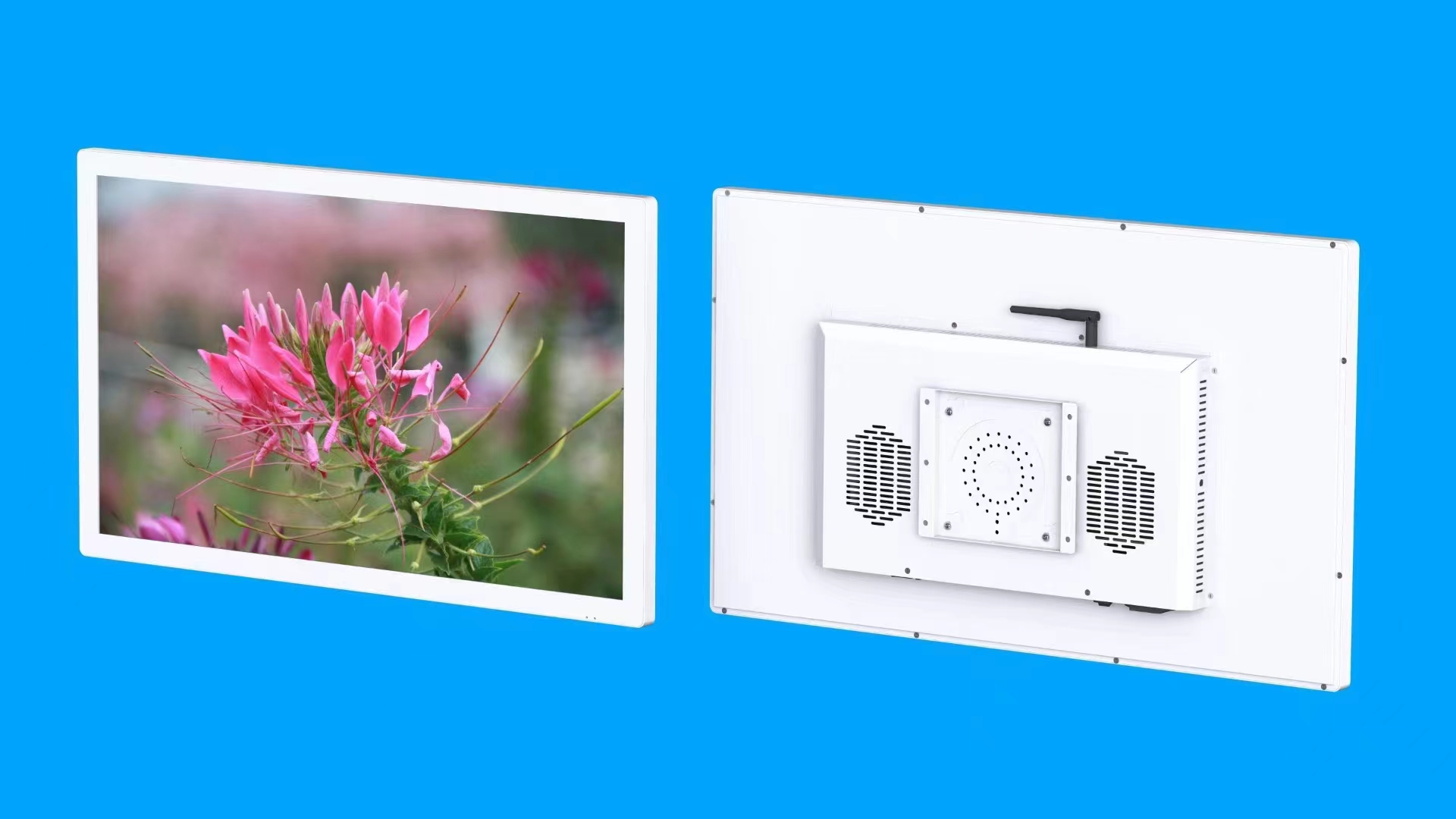

Model RS215ENT-N12 LCD display is an open-frame, open frame mounted design and utilizes the latest 21.5” 1920 x 1080 (1080P) High-Resolution wide tft ips Panel. RisingLCD has customized a versatile Analog-Digital interface board, backlight inverter and OSD controls.
All elements, including a toughened glass protective screen have been packaged in a compact, rugged, lightweight aluminum frame. The result is a flexible Display Head, ready for integration as part of any system, as a digital signage monitor, or a touchscreen driven human-machine interface.
Display | LCD SIZE | 21.5"IPS panel | ||||||||||
Resolutions | 1920*1080 | |||||||||||
view angle | 89/89/89/89 | |||||||||||
Contrast ratio | 1300:1 | |||||||||||
Brightness | 1200 nits | |||||||||||
Aspect Ratio | 16:09 | |||||||||||
Input | SD | SD slot ,(up to 32GB) | ||||||||||
USB Hostx2 | 2*USB Support 3G,KEYBOARD,MOUSE | |||||||||||
power supply | DC12V | |||||||||||
internet connection | RJ45 | |||||||||||
HDMI | 1*HD | |||||||||||
earphone | 3.5mmStereo Headphone Output | |||||||||||
antenna | Build in or external optionals | |||||||||||
media player | video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc. up to1920x1080p | ||||||||||
audio format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3 | |||||||||||
pic format | Support BMP,JPEG,PNG,GIF | |||||||||||
SYSTEM | CPU | quad core,RK3288 Cortex-A17 1.8 GHz | ||||||||||
GPU | Mali-T764 | |||||||||||
RAM | 2GB DDR3 | |||||||||||
ROM Flash | 32 G | |||||||||||
Operation system | Android 7.1 & up | |||||||||||
touch screen | 10 point capacitive touch | |||||||||||
Internet | WiFi | 802.11b/g/n | ||||||||||
lan | RJ_45 100M | |||||||||||
3G | PCI-E 3G | |||||||||||
Others | VESA | 75*75/100*100 | ||||||||||
Speaker | 2*5W | |||||||||||
OSD | multi-language | |||||||||||
operating temperature | -20--80 | |||||||||||
Housing case | Open frame metal enclosure | |||||||||||
spare parts | Manual | 1 | ||||||||||
adapter | Power adapter DC12V/4A |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
