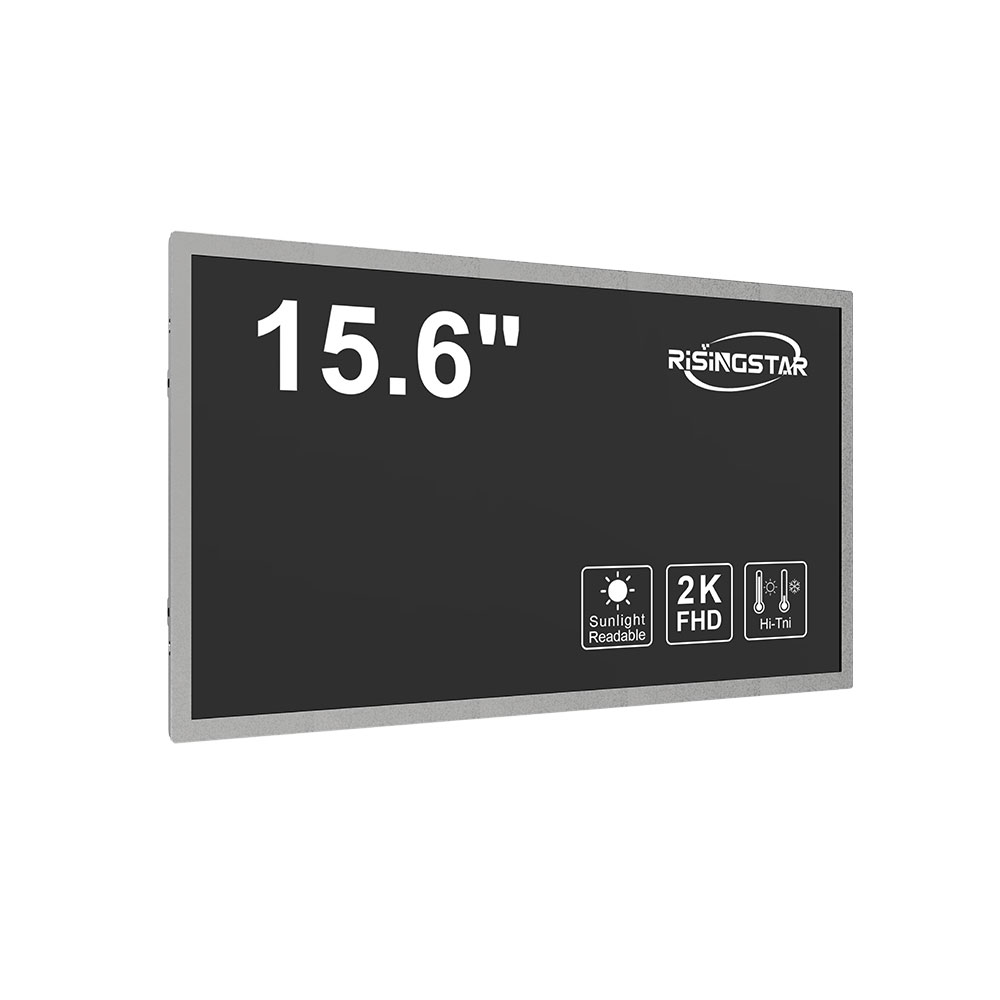

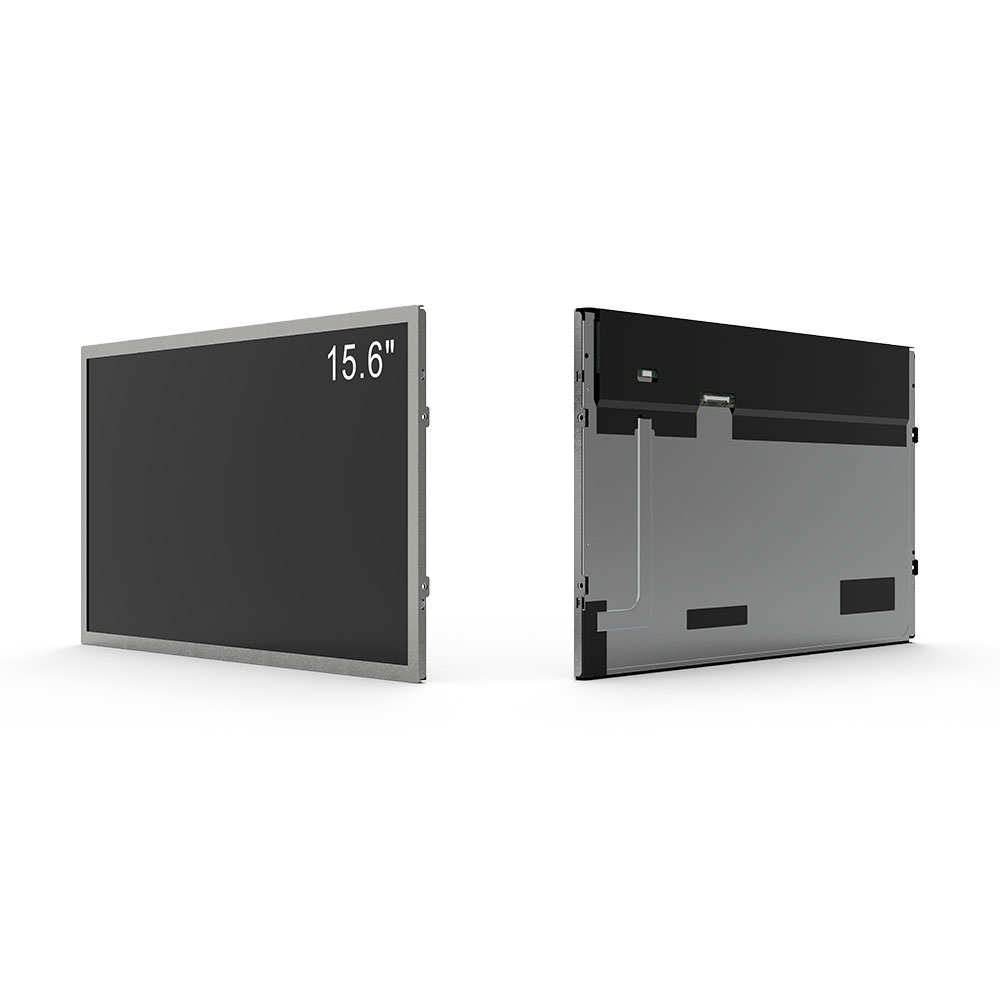

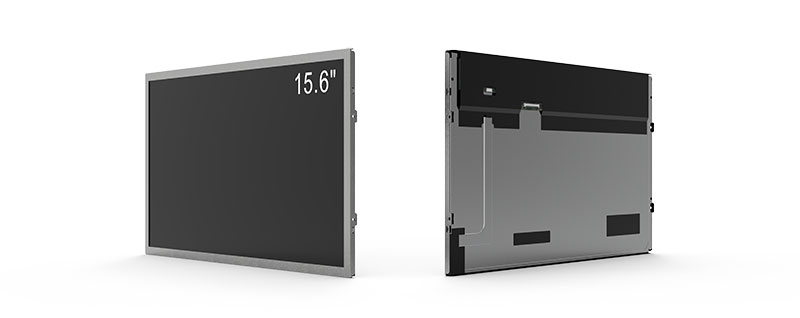

15.6 Inch Sunlight Readable A-Si TFT-LCD Monitor
The 15.6-inch a-Si TFT-LCD display from RisingStar is a high-performance industrial-grade monitor built to deliver exceptional visibility and durability in outdoor and high-brightness environments. Featuring a 1366×768 (WXGA) resolution and 100 PPI pixel density, it provides sharp, detailed imagery suitable for applications such as outdoor kiosks, factory automation, and medical instrumentation.
Designed for sunlight readability, this display supports brightness levels ranging from 1000 to 5000 nits, ensuring outstanding visibility even under direct sunlight. Its wide viewing angles of 85°/85°/80°/80° (L/R/U/D) and 16.2M color depth with 70% NTSC offer vibrant color reproduction and excellent consistency across various lighting conditions. The anti-glare surface treatment with 3H hard coating further enhances outdoor readability while protecting the screen from scratches and reflections.
Built on TN (Twisted Nematic) technology in normally white transmissive mode, the panel delivers fast response times—6 ms rise, 2 ms fall (Typ.)—making it well-suited for video content and real-time interfaces. The WLED backlight system, with a 50,000-hour lifetime, ensures long-term reliability and low maintenance costs. This model also integrates MEMC (Motion Estimation, Motion Compensation) for smooth playback at up to 240Hz, depending on configuration.
With a robust LVDS 30-pin (1 ch, 8-bit) interface, 5.0V driving voltage, and a durable build weighing up to 1.35 kg, this monitor supports efficient integration into various embedded systems. Its operating temperature range of 0°C to 60°C, along with a storage range down to -20°C, reinforces its suitability for industrial and semi-outdoor environments.
RisingStar’s 15.6" TFT LCD monitor stands as a trusted solution for professionals requiring dependable, sunlight-readable LCD performance in mission-critical applications.
Application Cases
15.6 Inch Sunlight Readable A-Si TFT-LCD Monitor – Industrial Display Specifications Specification Table:
| Item | Description |
|---|---|
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD (Liquid Crystal Module) |
| Resolution | 1366(RGB) × 768 (WXGA), 100 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 344.232(W) × 193.536(H) mm |
| Outline Dimensions | 363.8(W) × 215.9(H) × 17.35(D) mm |
| View Area (Bezel Opening) | 347.54(W) × 196.83(H) mm |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 500:1 (Typical, Transmissive) |
| Viewing Angle | 85°/85°/80°/80° (L/R/U/D, CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Response Time | 6 ms (Tr), 2 ms (Td) (Typical) |
| Color Depth | 16.2M Colors, 70% NTSC |
| Backlight Type | WLED with Driver, Lifetime: 50,000 hours |
| Refresh Rate | 60Hz (Standard), MEMC support for 120Hz/240Hz configurations |
| Touch Panel | None |
| Weight | 1.25 kg (Typical), 1.35 kg (Max) |
| Interface | LVDS (1 ch, 8-bit), 30 pins, Terminal Type |
| Power Supply Voltage | 5.0V (Typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +60°C |
| Application Areas | Industrial displays, Outdoor kiosks |
15.6 Inch Sunlight Readable A-Si TFT-LCD Monitor – Industrial Display Specifications Specification Table:
| Item | Description |
|---|---|
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD (Liquid Crystal Module) |
| Resolution | 1366(RGB) × 768 (WXGA), 100 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 344.232(W) × 193.536(H) mm |
| Outline Dimensions | 363.8(W) × 215.9(H) × 17.35(D) mm |
| View Area (Bezel Opening) | 347.54(W) × 196.83(H) mm |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 500:1 (Typical, Transmissive) |
| Viewing Angle | 85°/85°/80°/80° (L/R/U/D, CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Response Time | 6 ms (Tr), 2 ms (Td) (Typical) |
| Color Depth | 16.2M Colors, 70% NTSC |
| Backlight Type | WLED with Driver, Lifetime: 50,000 hours |
| Refresh Rate | 60Hz (Standard), MEMC support for 120Hz/240Hz configurations |
| Touch Panel | None |
| Weight | 1.25 kg (Typical), 1.35 kg (Max) |
| Interface | LVDS (1 ch, 8-bit), 30 pins, Terminal Type |
| Power Supply Voltage | 5.0V (Typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +60°C |
| Application Areas | Industrial displays, Outdoor kiosks |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
