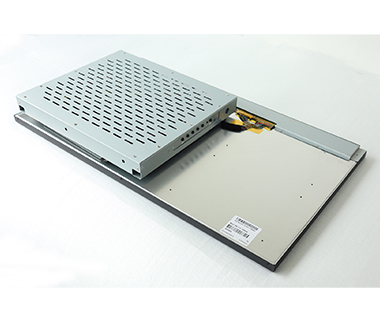

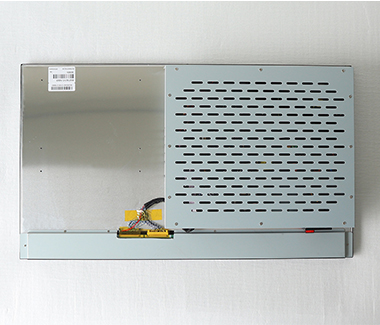

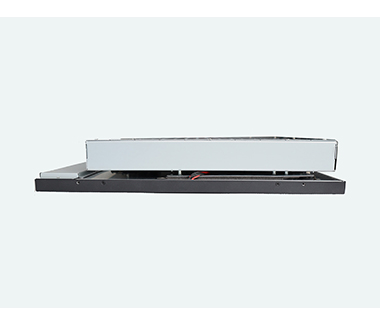

27 inch 2000 nits sunlight readable open frame LCD panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
3-Year Standard Warranty
Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
RisingLCD 27 inch open frame display delivers an commercial solution that is cost effective for OEMs and systems integrators requiring a reliable product for the customers. Designed with reliability, RisingLCD open frames delivery outstanding image clarity and light transmission with stable operation. Our open frame LCD series is available in a wide range of sizes, offering the versatility needed for commercial kiosk application from self service, gaming to industrial automation and healthcare.
27 inch 2000nits sunlight readable open frame LCD panel Main features
1. High brightness 2000nits
2. Sunlight Readable
3. Wide Viewing Angle of 178°(H), 178°(V)
4. Wide Operation Temperature (0 ˚C~50˚C)
5. Low Power Consumption
6. open frame style easy installation
7. BL MTBF: 50,000 hours
8. Intelligent temperature control system, active heat dissipation
Low Power Consumption
This open frame LCD panel is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
High Reliability for Various Industrial and commercial Applications
RisingLCD industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factor environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.
| Model Name | RS270-MH00XT05BK |
| Description | 27” TFT LCD, 2000nits LED Backlight, 1920x1080 |
| Screen Size | 27inch |
| Display Area (mm) | 597.888(W)×336.312(H) mm |
| Brightness | 2000 cd/m 2 |
| Resolution | 1920x1080 |
| Aspect Ratio | 16 : 9 |
| Contrast Ratio | 1000:1 |
| Pixel Pitch (mm) | 0.3114×0.3114 [81PPI] |
| Viewing Angle | 178°(H),178°(V) |
| Color Saturation | 16.7M , 99% sRGB |
| Display Colors | 16.7M |
| Response Time (Typical) | 14 (Typ.)(G to G) |
| Input Interface | HDMI, USB |
| Input Power | AC100~240V |
| Power Consumption | 60W |
| Dimensions (mm) | 618 x360 x 50mm |
| Weight (Net) | 5.8 KG |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
