10.1 inch daylight visible display 1000 nits
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

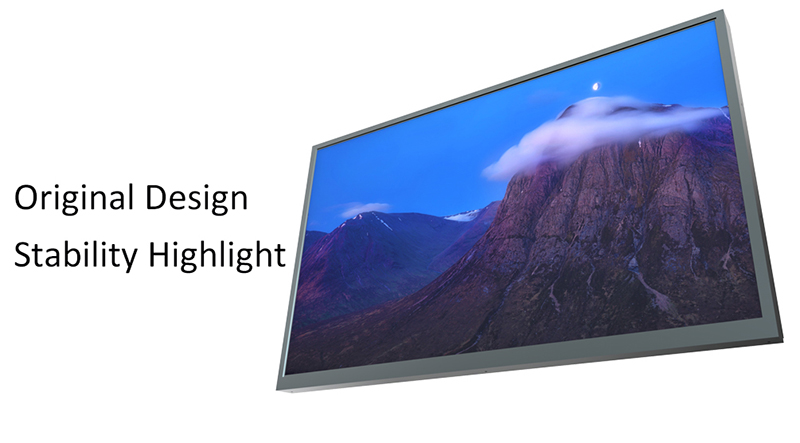

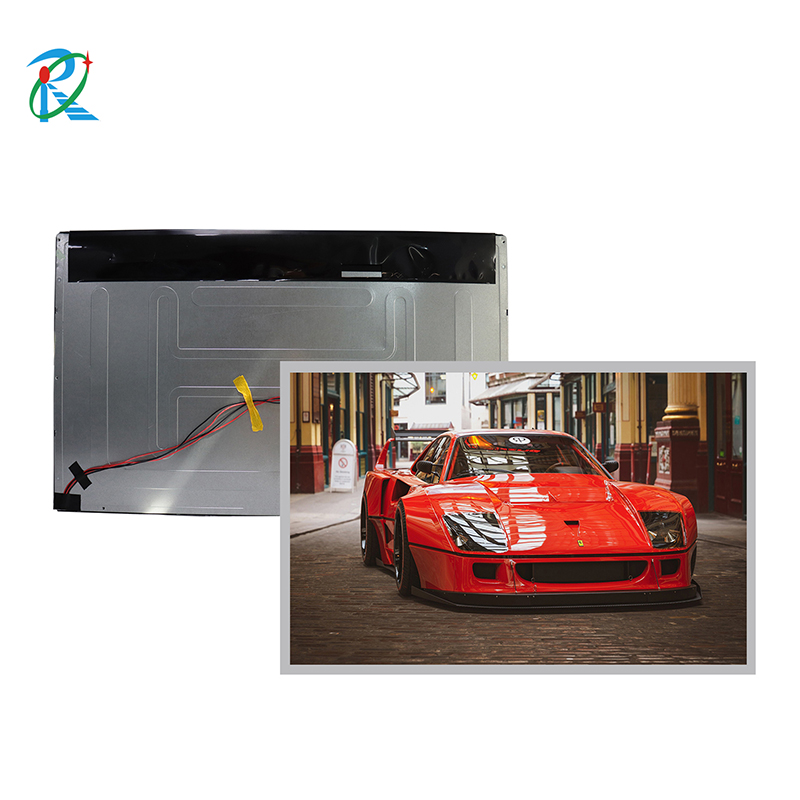

10.1 inch daylight visible display 1000 nits lcd module,is widely used in hand-held outdoor display machine.express cabinet ,Access ,ATM and so on. 10.1 inch daylight visible display 1000 nits lcd module use Auo/BOE original brand lcd module,brighness can be adjust according to user used .
10.1 inch display screen through change LED light ti increase brightness ,LED side-entry backlight for uniform brightness.
10.1 inch daylight visible display 1000 nits ,product feature:
1.With BOE/AUO original module
2.Matrix LED backlight design.
3.Suopport long-trem supply system.
4.With automatic dimming backlight drive motherboard
5.Operating Temperature: -20 ~ 70 °C℃
Size | 10.1inch |
Panel item | RS101NET-N07 |
Panel type | a-Si TFT-LCD |
Display mode | IPS,Normally black，transmissive display |
Pixels | 1280*800 |
brightness | 300-1300cd/m2 |
Constrast Ratio | 800:1 |
Response Time | 14/11ms |
View angle | 85/85/85/85 |
View area | 218.96*137.6mm(H*V) |
Dispaly area | 218.96*137.6mm(H*V) |
Outline Size | 230.7*152.55*7mm(H*V*D) |
Signal Type | LVDS |
Working freqyency | 60Hz |
Working temperature | -20℃ ~ 70℃ |
Storage Temperature | -30 ~ 80 °C |
Display ratio | 16:9 |
Display color | 16.7m |
Backlight Voltage | 3.3V |
Backlight Power Consumption | 6.18w |
Surface Treatment | Haze |
Weight | 0.375kgs |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
