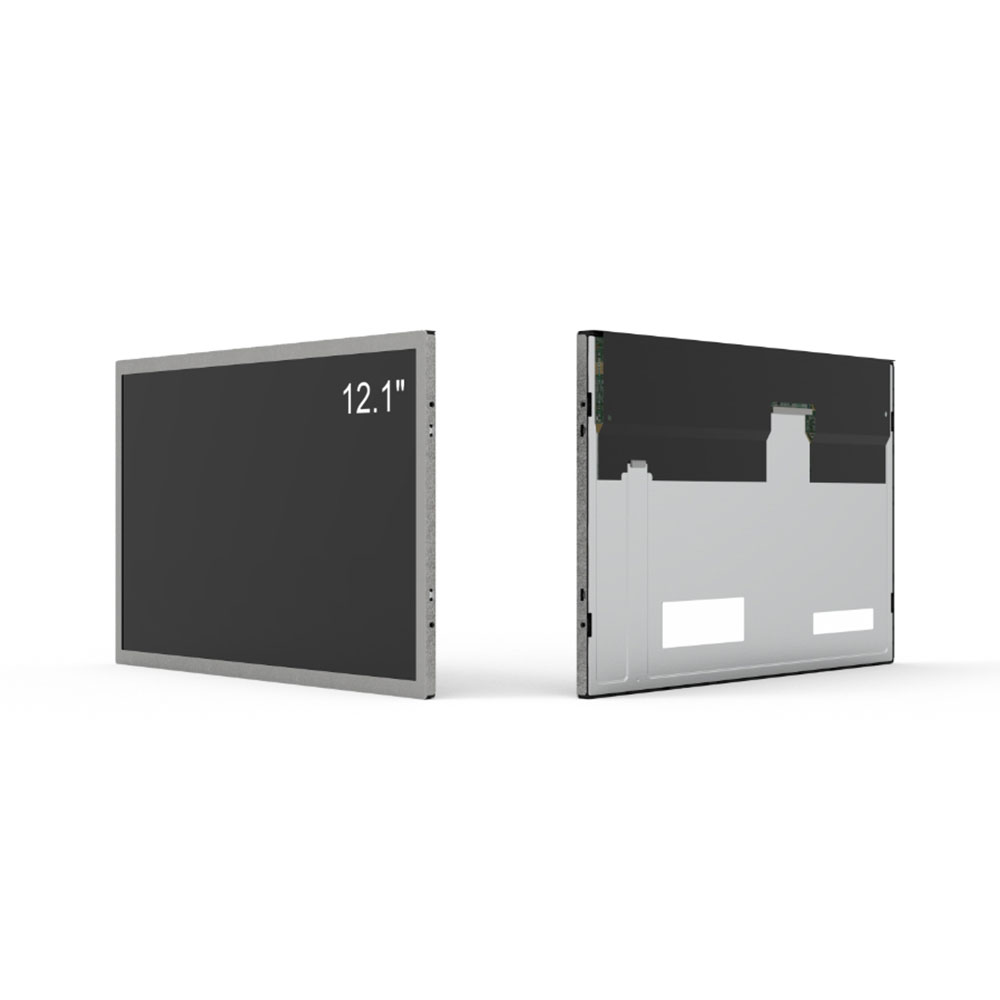

12.1 inch 1000nits high brightness TFT lcd module

The RS121NET-N10 is a 12.1-inch high brightness TFT LCD module designed for demanding industrial and outdoor display applications. Featuring a resolution of 1280×800 pixels and an IPS wide viewing angle display (80°/80°/80°/60°), this module delivers vibrant, consistent image quality from various angles, making it ideal for kiosks, medical displays, automation systems, and sunlight-readable outdoor environments.

Engineered with a brightness level of 1000 to 5000nits and a contrast ratio of 700:1, this panel ensures clear visibility even under direct sunlight. The module adopts a normally white, transmissive display mode with WLED backlighting and operates at a standard frequency of 60Hz. With a fast response time of 4/12ms, it provides smooth visual performance for dynamic content.

The RS121NET-N10 offers robust environmental adaptability with an operating and storage temperature range of -30°C to +80°C, making it suitable for extreme temperature conditions. The module's display area measures 261.12×163.2mm, with a compact and slim outline size of 283×185.1×10.2mm and a lightweight design of just 0.62kg.

12.1 inch 1000 to 5000nits high brightness TFT lcd module technical parameters

12.1 inch 1000 to 5000nits high brightness TFT lcd module Use Case

RisingLCD 12.1″ 1000 to 5000nits High Brightness TFT LCD Module — Sunlight-Readable Outdoor Display

Product Overview

The RisingLCD 12.1-inch 1000 to 5000nits  High Brightness TFT LCD Module is designed for crystal-clear visibility in direct sunlight. With up to 1000 to 5000nits brightness, wide operating temperature range, and durable construction, this module is perfect for outdoor digital signage, EV charging station displays, industrial kiosks, fuel dispenser screens, and more.

Key Features

• Up to 5000 nits Brightness — Effortless readability under strong ambient light

• Full HD or WXGA Options — Sharp imaging for clear visuals

• Wide Operating Temperature — Reliable from –30 °C to +85 °C

• Durable Build — Industrial-grade design for rugged environments

• Low Power Consumption & Efficient Cooling — Ideal for continuous operation

• Slim, Lightweight Form Factor — Easy mounting and integration

Applications

• Outdoor digital signage / menu boards

• EV charging station screens—high daytime visibility

• Fuel dispenser displays—clear view gallon after gallon

• Transit stops—real-time info readable in sunshine

• Industrial control panels operating in harsh environments

Why Choose RisingLCD?

• Over 10 years in high-brightness LCD development with patented design innovations

• Trusted supplier to major transportation, energy, and retail brands

• Certified quality and rigorous in-house testing in extreme conditions

Customer Success Story

In 2024, our 12.1″ 1000 to 5000nits module was chosen for outdoor kiosks at a gas station chain. Each display maintained clarity throughout sunny summer days and frigid winter nights—no visibility issues, no returns.

FAQ

Q1: Will it overheat in direct sunlight?
No. Built with efficient heat dissipation and power-saving design, it delivers stable summertime performance.

Q2: Is it waterproof?
Yes. Standard splash-resistant. Fully IP65 sealed options available for exposed installations.

Q3: Can I customize the display?
Absolutely. We offer customizable brightness levels, interfaces, housing, and protective coatings.
