32 inch LCD panel 1500-2500 nits sunlight readable module
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Shenzhen manufacturer 32 inch lcd panel high quality 1500-2500 nits sunlight readable module monitor
Product features:
1. Using LG's original industrial-grade LCD panel, long-term sunlight without blackening;

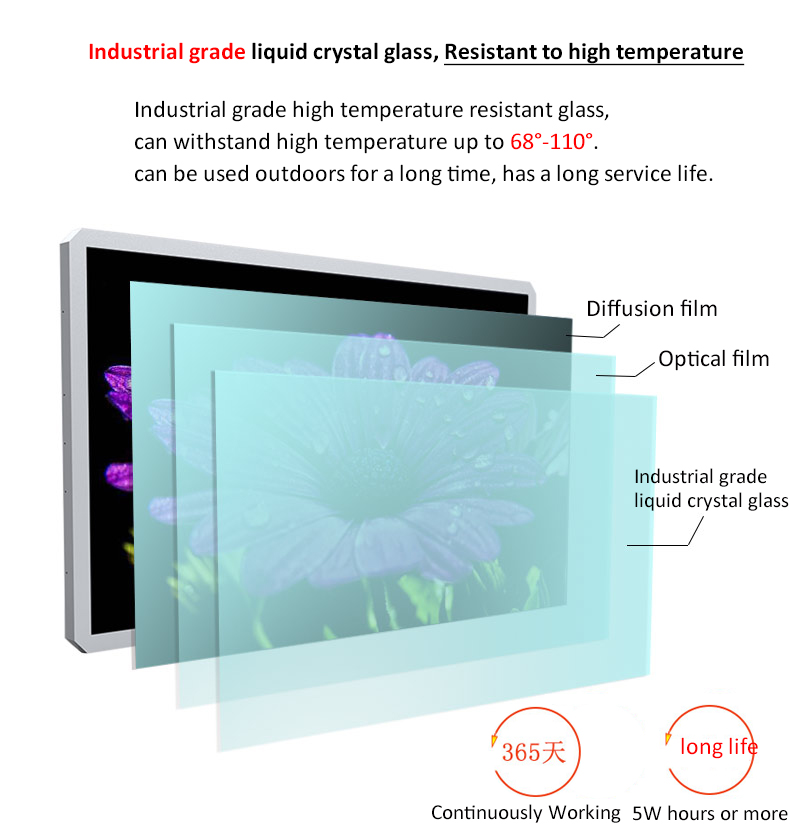

2. High and low temperature resistance -30 to 110 degrees;
3. Aluminum alloy structure, better heat dissipation, 3 times better than the conductivity of the electrolytic plate;
4. The backlight supports automatic dimming, knob dimming, PWM dimming;
5. Outdoor special optical materials, with a temperature resistance of 120 degrees Celsius;

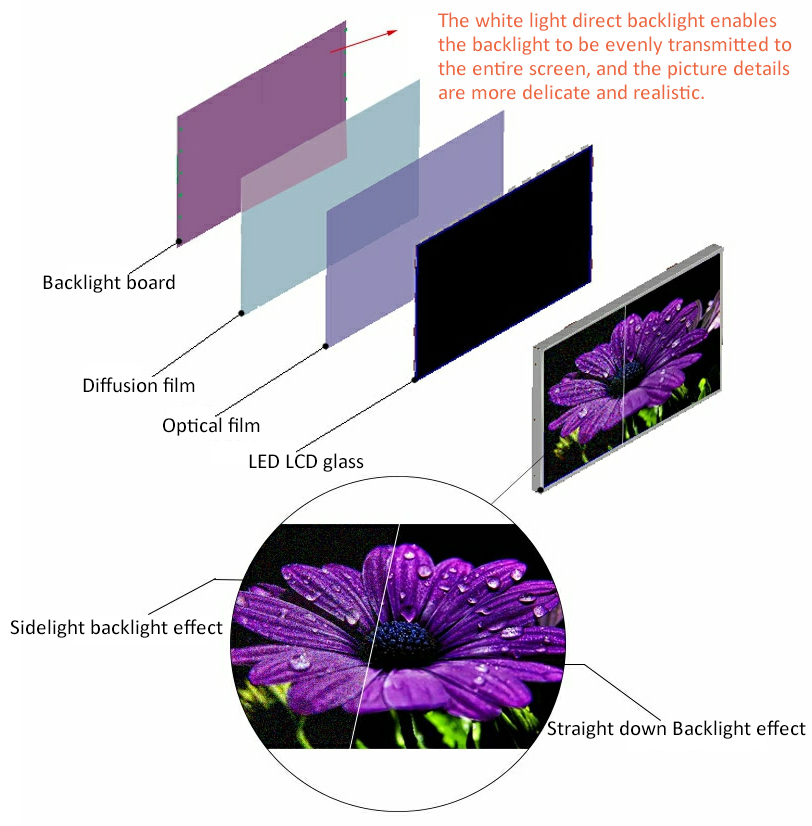

6. Direct backlight design, higher reliability.
Size | 32inch | |||
Panel type | ||||
View area | 703.4×397.9 mm(H*V) | |||
Dispaly area | 698.4×392.85 mm(H*V) | |||
Outline size | 723.4×422.9mm | |||
Dispaly mode | IPS,Normally black,Transmissive | |||
Drive-screen Voltage | 12V (Typ) | |||
Resolution | 1920*1080 , WXGA | |||
Display ratio | 16:9 | |||
Display brightness | 500- 5000cd/m2 | |||
Constrast Ratio | 2000:1 | |||
View angle | 89/89/89/89 | |||
Display color | 16.7M , 68% NTSC | |||
Working freqyency | 60Hz | |||
Surface Treatment | Haze ,Hard coating(3H) | |||
Light source type | WLED | |||
Backlight lifetime | 50000 hrs | |||
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
