OM55N-S samsung 55 inch ultra slim window LCD display for business
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
OM55N-S samsung 55 inch ultra slim window LCD display for business
Main Features for OM55N-S
High Brightness:
Samsung 55 inch ultra high brightness semi-outdoor was designed as storefront window display due to it 4000 nits high brightness, high contrast Contrast ratio 6000:1 it can offers bright images even under every weather condition.

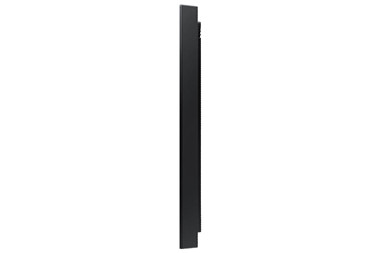

54.5mm Slim Design
Modernize space with slim design, 54.5mm ultra slim design that seamlessly integrates into any display window,
Robust durability with validated dust protection and functionality that mitigates overheating
MagicINFO Player S7 built-in
Easy content management with a built-in management solution, powered by the TIZEN operation system that with the embedded MagicINFO Player S7,OM55N-S boosts the overall performance of the display and offers painless content management, that ensures seamless transitions and playback to delivery a better experience for both customers and store managers.
Clutter-Free Configuration
OM55N-S is with the cable guide and embedded Wi-Fi structural design that provide clean, organized look and allow for content and firmware updates without the need for additional messy cables.
| Item No | OM55N |
| Panel Brand | samsung display |
| Diagonal Size | 55" |
| Type | 120Hz E-LED BLU |
| Panel No | LH55OMNSLGB/ZA |
| Pixel Pitch(mm) | 0.630 x 0.630 |
| Resolution: | 1920*1080 (Full HD) |
| Brightness(Typ.) | 4000 nits |
| Active Display Area(mm) | 1209.6(H) x 680.4(V) |
| Dispay Mode | IPS |
| Aspect Ratio: | 16:9 |
| Contrast Ratio | ‘6000：1 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Color Gamut | 72% |
| Operation Hour | 24/7 |
| Haze | 0% |
| Power Supply | AC 100-240V, 50/60Hz |
| Power consumption Max(W/h) | 450 |
| Operating Temperature | -20 ~ 70 °C |
| Package Weight | 29.1kgs |
| VESA Mount(mm) | 400*400mm |
| Bezel Width(mm) | 19.9mm |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
