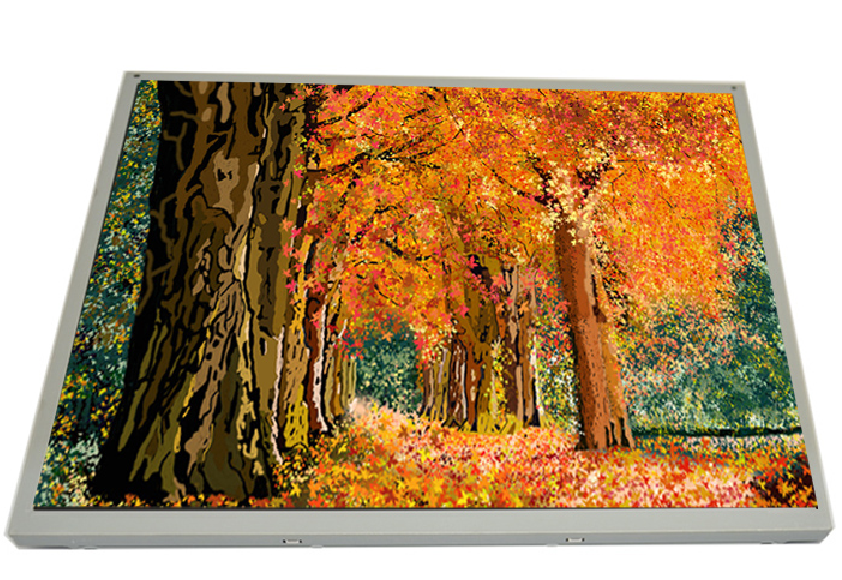

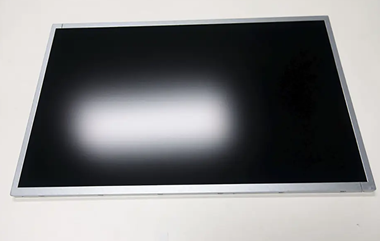

23.6 inch 1500 nits high brightness TFT LCD panel

23.6 inch 1500 nits high brightness TFT LCD panel

BrandInnolux
Model nameRS236HJJ-NE15
Screen size23.6"
Screen typeOutdoor LCD Panel
Resolution1920(RGB)×1080
Brightness (cd/m²)1500
Overview Specifications Customized Services Support & Shipping

Risingstar 23.6 inch high brightness TFT LCD panel, 1920*1080 FHD resolution, 1500 nits high brightness, 3000:1 contrast ratio, hard coating surface treatment, 30 pins LVDS interface, ELED backlight.

23.6 inch high brightness main features:

1. 1920x1080 Resolution, 16:9 aspect ratio

2. 3000:1 contrast ratio, and 1500-nit brightness, sunlight readable,

3. Built-in Auto light sensor, lower power consumption

4. High quality panel with 89/89/89/89 viewing angle.

5. 30 pins LVDS interface.

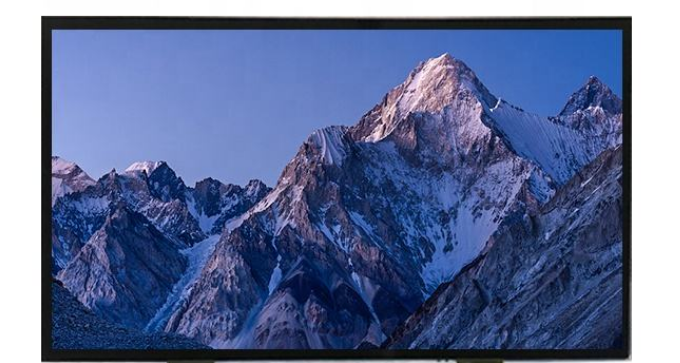

High brightness

1500 nits, high brightness ensures that the screen remains visible even in direct sunlight, making it easy for people to read important information and messages.

Auto brightness control and good Visibility

1500 nits high brightness LCD panel clearly conveys and displays content and captures

the public's attention, Different lighting conditions require different levels of brightness, the

light sensor measures the ambient light in the area and automatically adjusts the image light

accordingly to provide the best experience for the viewer, and also can save the energy cost,

reduce the heat and extends the life of the LCD panel.

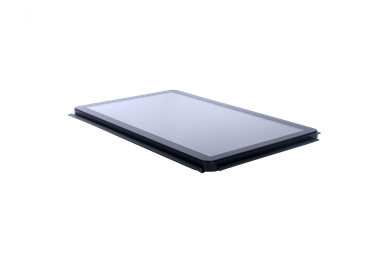

Medium size LCD panel with RisingLCD edge backlight design

With Risingstar own design Aluminum ELED backlight module, this makes this 23.6 inch TFT LCD slim, light and at a lower power consumption level while the brightness is high. The medium size LCD panel has a high brightness, ELED slime backlight design, it can be

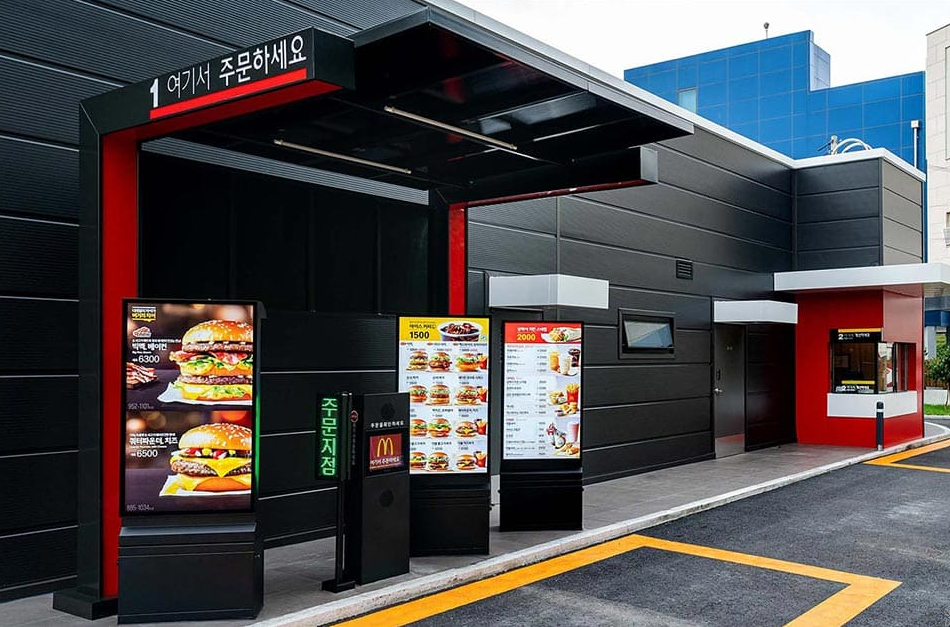

widely used in all indoor or outdoor application, such as: outdoor advertising, transportation , retail,Military, QSR, etc.

RS236HJJ-NE15 23.6 inch high brightness display 23.6 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal23.6  inch
Panel Brand Innolux
Model NoRS236HJJ-NE15
Active Area521.28(W)×293.22(H) mm
Pixels1920(RGB)×1080, FHD, 93PPI
Physical Size544.8(W)×320.5(H)×11.5(D) mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
White Luminance ( Center )1500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio3000:1 (Typ.)
Optical Response Time20 (Typ.)(G to G) ms
Nominal Input Voltage5.0V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [g]2.31±0.11Kgs
Interface Type30 pins   LVDS (2 ch, 8-bit)
Support Color16.7M , 72% NTSC
Surface TreatmentHard coating (3H),
RoHS ComplianceRoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
