Specification
| Parameter | Specification |
|---|---|
| Panel Size | 65 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD |
| Pixel Density | 68 PPI, RGB Vertical Stripe |
| Display Area | 1428.48 (W) × 803.52 (H) mm |
| Viewable Area | 1433.4 (W) × 808.6 (H) mm |
| Surface Treatment | Matte (Haze 28%), Hard coating 2H |
| Brightness | 500 ~ 5000 nits (Typ.) |
| Contrast Ratio | 1100:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (L/R/U/D, Min., CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Screen Series | IPS Hard Screen: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2; VA Soft Screen: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ., G to G) |
| Display Colors | 1.07B, 68% NTSC |
| Backlight | WLED, 50,000 hrs (Excluding Driver) |
| Refresh Rate | 60 Hz (Standard); 120 Hz (60 Hz Input, MEMC); 120 Hz+120 Hz Panel+Backlight; 240 Hz (60 Hz Input) |
| Panel Weight | 21.5 / 22.6 Kgs (Typ./Max.) |
| Signal Interface | V-by-One 8 lane, 51 pins, Terminal |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Environment | Operating: -20 ~ 70 °C; Storage: -20 ~ 60 °C |

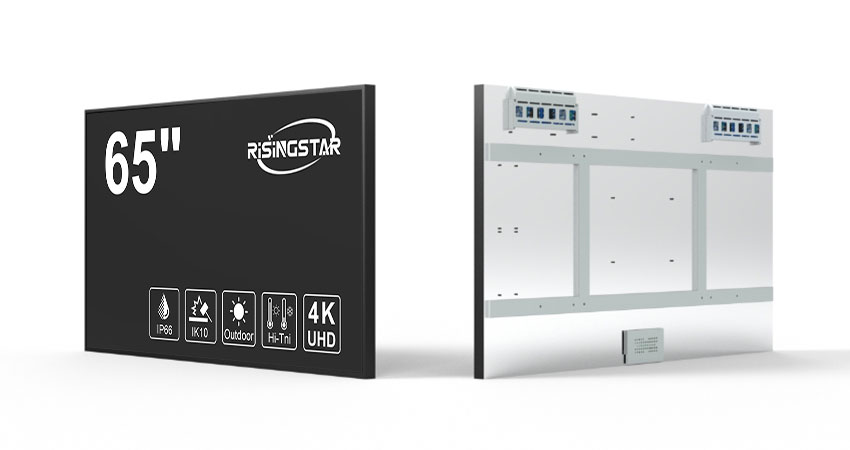

The 65-inch a-Si TFT-LCD panel is an ultra-high-definition display module designed for demanding industrial and commercial applications. Featuring 3840×2160 UHD resolution and a pixel density of 68 PPI, it provides sharp, detailed images with true-to-life color reproduction. The panel uses an IPS mode, normally black, transmissive design, offering wide viewing angles (89°/89°/89°/89°) with consistent color and contrast across all directions.
Its high brightness range of 500 to 5000 nits ensures excellent readability even under strong ambient light, while the matte surface with 2H hard coating reduces glare and protects against scratches. The panel supports 1.07B colors covering 68% NTSC, powered by a WLED backlight with a long lifetime of 50,000 hours. Optional refresh rates up to 240 Hz with MEMC technology allow smooth motion in dynamic video applications.
The panel integrates V-by-One 8-lane interface, operates at 12V typical, and withstands temperatures from -20°C to 70°C, making it suitable for indoor and semi-outdoor deployments. Weighing about 21.5~22.6 kg, it is compatible with a variety of mounting solutions.

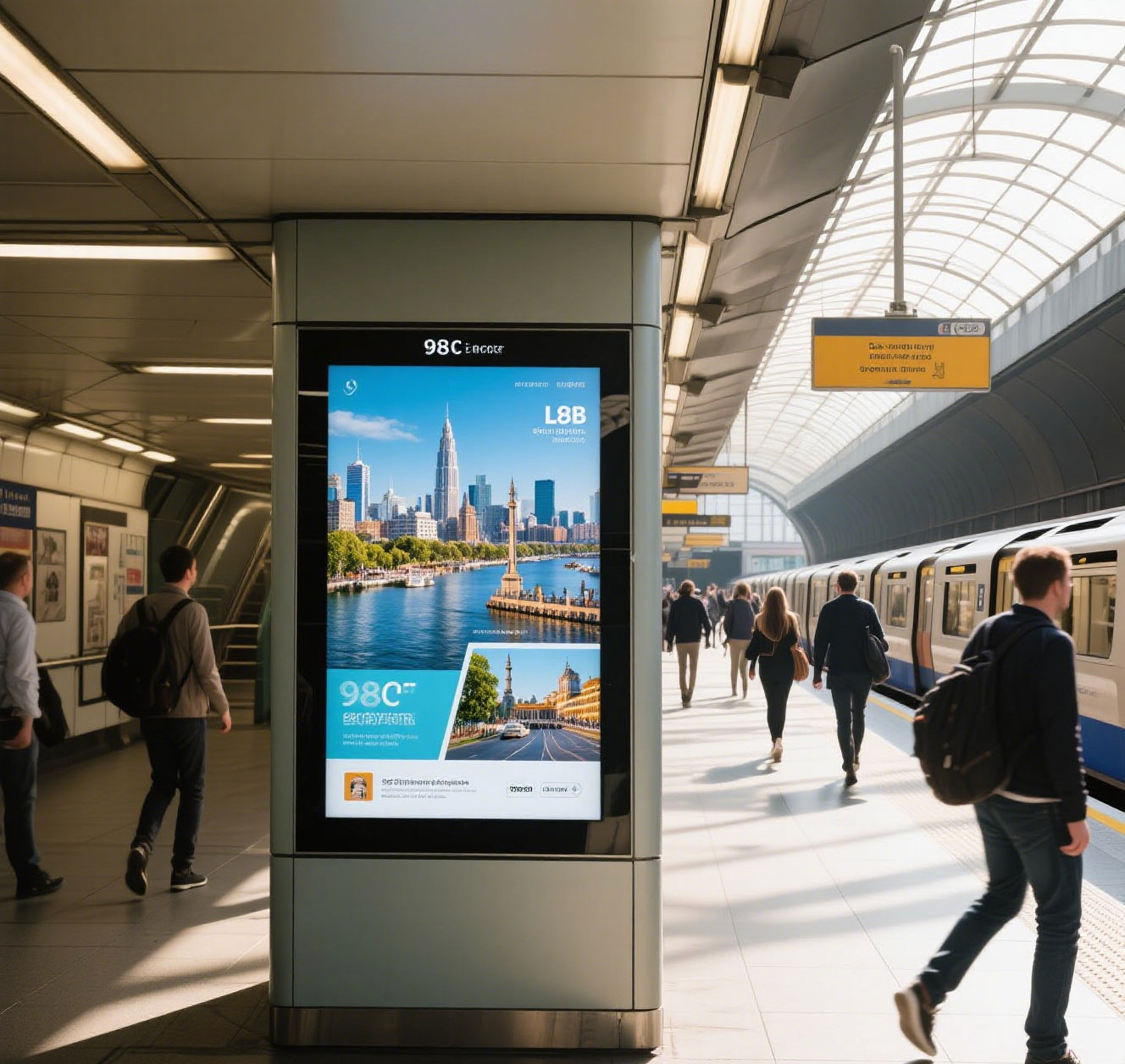

Outdoor & Indoor Digital Signage: Airports, malls, stations, exhibition centers.
Passenger Information Displays (PIDs): Railway, subway, and bus stations.
Industrial & Commercial Displays: Control rooms, monitoring stations, kiosks.
Retail & Advertising: High-brightness displays for shop windows or public spaces.
Entertainment & Multimedia: Large format UHD panels for immersive experiences.
| Parameter | Specification |
|---|---|
| Panel Size | 65 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD |
| Pixel Density | 68 PPI, RGB Vertical Stripe |
| Display Area | 1428.48 (W) × 803.52 (H) mm |
| Viewable Area | 1433.4 (W) × 808.6 (H) mm |
| Surface Treatment | Matte (Haze 28%), Hard coating 2H |
| Brightness | 500 ~ 5000 nits (Typ.) |
| Contrast Ratio | 1100:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (L/R/U/D, Min., CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Screen Series | IPS Hard Screen: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2; VA Soft Screen: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ., G to G) |
| Display Colors | 1.07B, 68% NTSC |
| Backlight | WLED, 50,000 hrs (Excluding Driver) |
| Refresh Rate | 60 Hz (Standard); 120 Hz (60 Hz Input, MEMC); 120 Hz+120 Hz Panel+Backlight; 240 Hz (60 Hz Input) |
| Panel Weight | 21.5 / 22.6 Kgs (Typ./Max.) |
| Signal Interface | V-by-One 8 lane, 51 pins, Terminal |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Environment | Operating: -20 ~ 70 °C; Storage: -20 ~ 60 °C |
