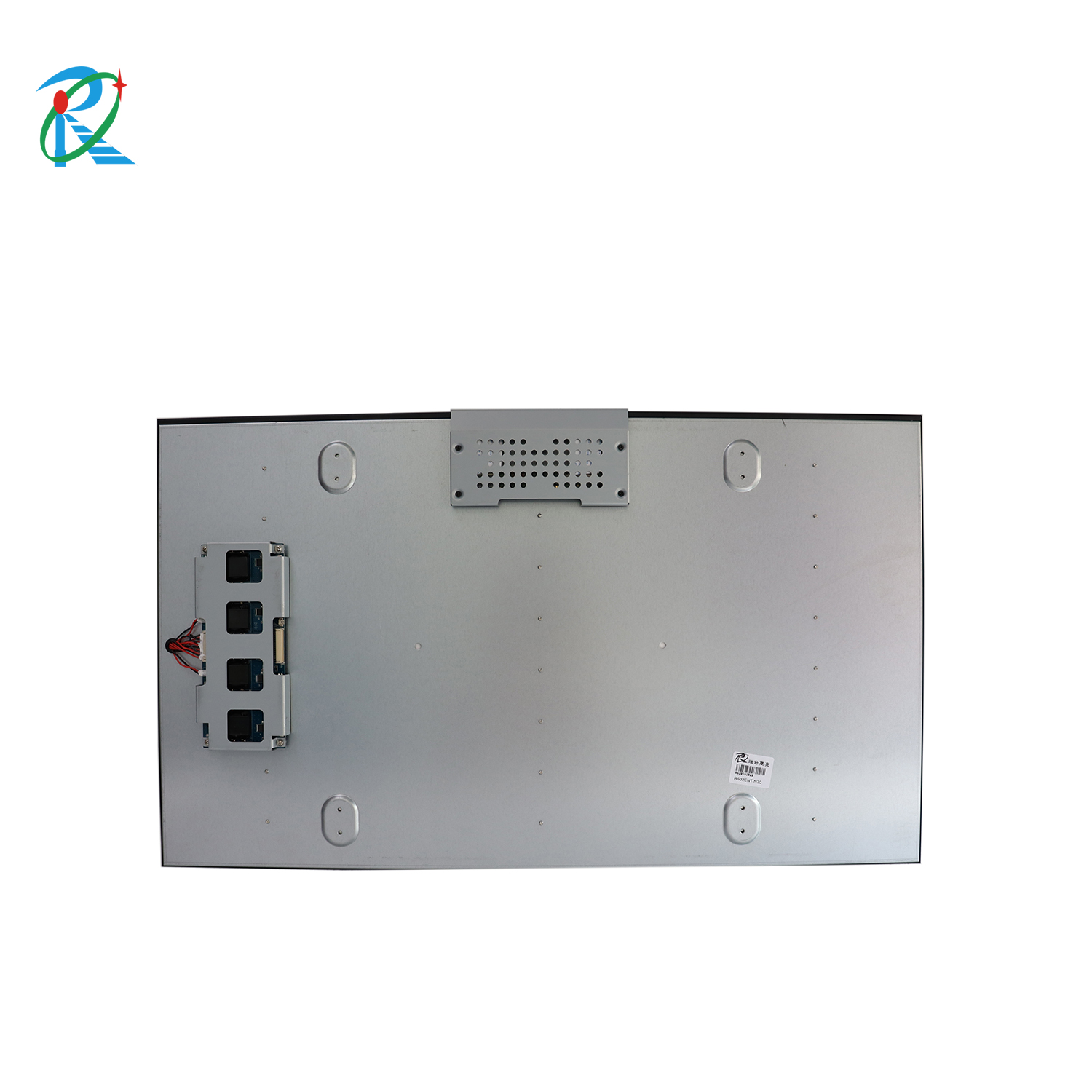

Sun readable 32" UHD lcd moudle for outdoor advertising display
| Brand | Risinglcd |
| Model name | RS320ENT-N20 |
| Screen size | 32 " |
| Screen type | LCD Monitor |
| Resolution | 1920 1080(RGB) |
| Brightness (cd/m²) | 1000 to 5000 |
Product Feature and application
1.Risinglcd highlight LCD screen With 1920*1080/3840*2160 full HD resolution,
2.The product size from 10.1“ to 98”.
3.The brightness 500-5000nits. The brightness can be customized.\r\n High Quality Metal Frame High Color Saturation
4.Specializes in producing ultra-high brightness LCD modules use a dedicated system for LED backlight \r\n that can be easily viewed in direct sunlight,

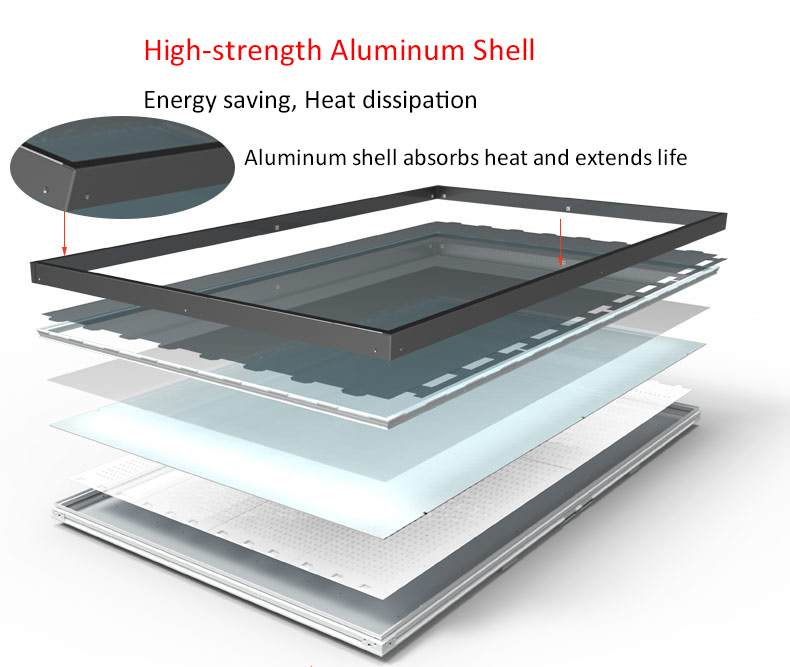

5.Original design, Stability highlight Full size design New original package display module structure and\r\n installation method thereof High flexibility, excellent heat dissipation and convenient maintenance.
6.The highlight LCD screen main applicate the Advertisement machine, Touch all-in-one, Splicing screen,\r\n Charging pile, Express cabinet, Bar LCD, Window screen, Electronic photo frame, Magic mirror and a series of other products related to display requipment.
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
