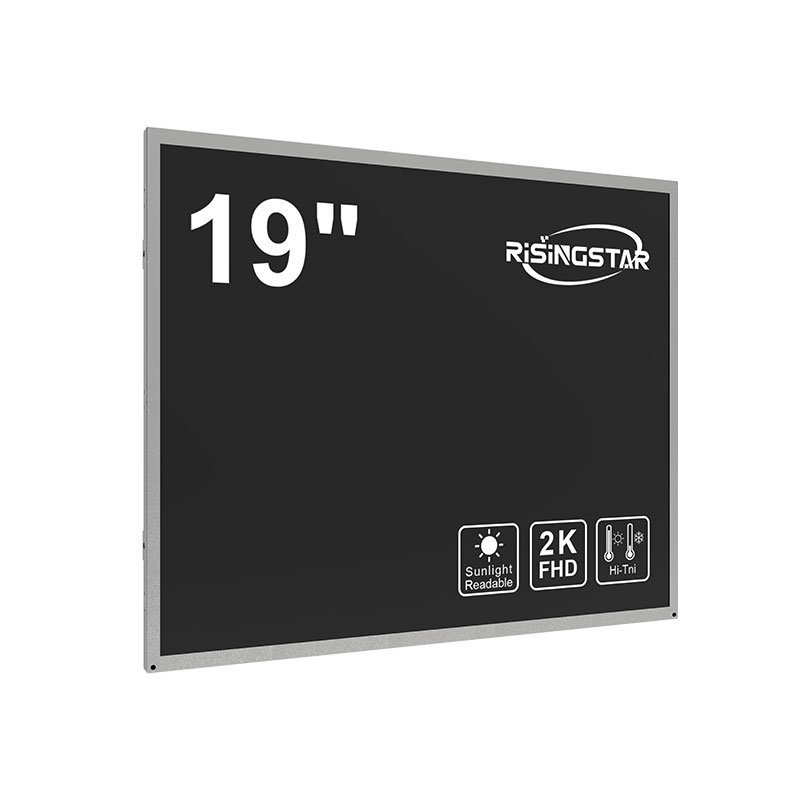

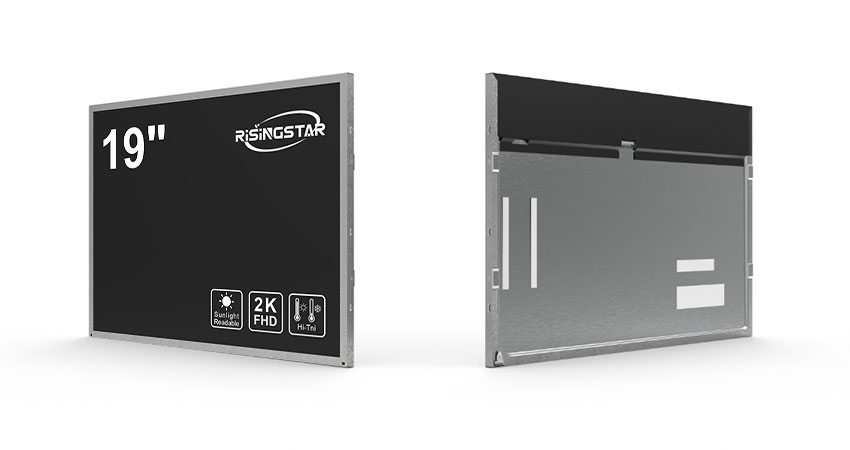

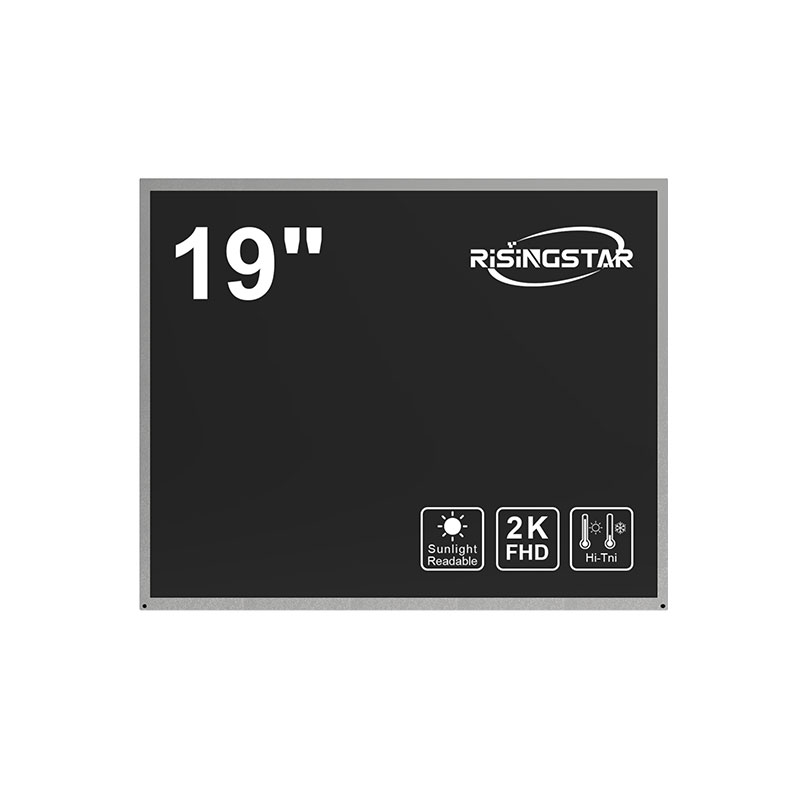

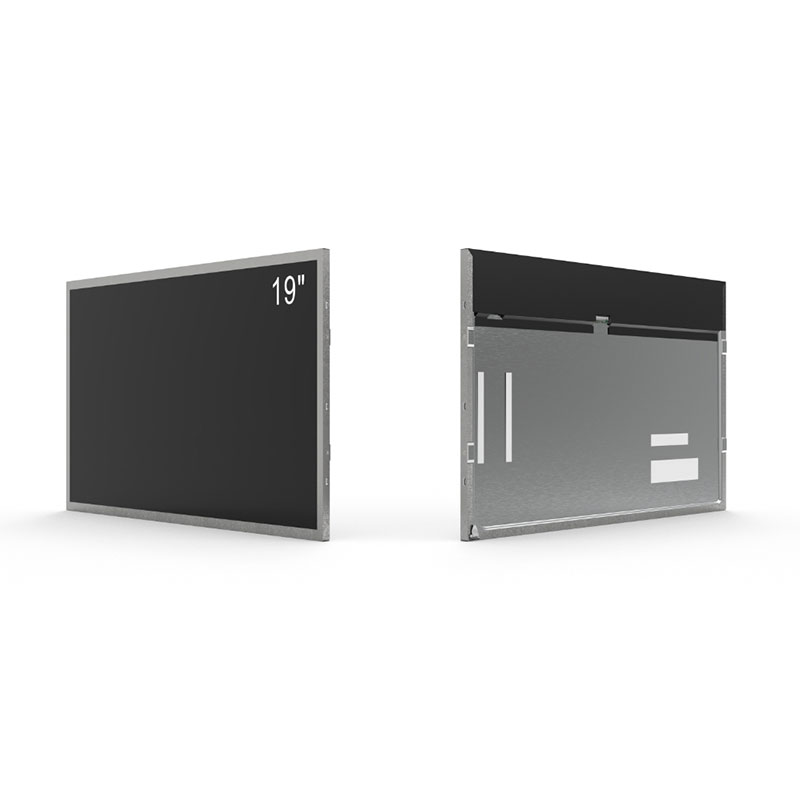

19" Industrial Ultra High Brightness 4:3 LCD Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
19" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS190ENT-GE05 | 500 | 1280×1024 (SXGA) |
| RS190ENT-GE10 | 1000 | 1280×1024 (SXGA) |
| RS190ENT-GE15 | 1500 | 1280×1024 (SXGA) |
19.0-inch TFT-LCD Panel Specification
| Category | Specification |
|---|---|
| Panel Size | 19.0 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA |
| Pixel Density | 86 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 376.32 (W) × 301.056 (H) mm |
| Viewing Area | 378.8 (W) × 303.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness (cd/m²) | 500 ~ 1500 nits |
| Contrast Ratio | 1000:1 (Typ.), Transmissive |
| Viewing Angle | 89/89/89/89 (CR ≥10) Left/Right/Up/Down |
| Optimal Viewing | All View / IPS Mode, Normally Black, Transmissive |
| Optical Mode Details | IPS hard-screen series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA soft-screen series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 14 ms (Typ., G-to-G) |
| Color Depth | 16.7M (72% NTSC) |
| Backlight Type | 19S2P WLED, 30,000 hrs, Driver not included |
| Weight | 1.46 / 1.54 kg (Typ./Max.) |
| Recommended Applications | Desktop Monitor, Industrial Display |
| Refresh Rate | 75 Hz 120 Hz (with built-in MEMC @60Hz input) 120 Hz + 120 Hz (panel + backlight) 240 Hz (60 Hz input) |
| Signal Interface | LVDS (2ch, 8-bit), 30-pin connector |
| Power Supply Voltage | 5.0V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
Description
This 19-inch a-Si TFT-LCD module is designed for high-performance industrial and commercial applications that require stable visibility and long-term reliability. Featuring an SXGA resolution of 1280×1024 and a wide viewing IPS mode, the panel delivers consistent color accuracy and excellent image clarity from all viewing angles (89/89/89/89).
With an ultra-wide brightness range from 500 to 1500 nits, this display is suitable for both indoor and high-brightness environments. The anti-glare 3H hard coating enhances durability and protects the surface from scratches, making it ideal for harsh-use scenarios.
The module supports multiple refresh options—including 75 Hz, 120 Hz MEMC, and even 240 Hz simulation mode—delivering smooth motion performance for dynamic content. With a long-life WLED backlight (30,000 hours), robust operating temperatures, and an LVDS interface, the panel is engineered for compatibility and long-term industrial stability.
Applications
This 19-inch high-brightness TFT-LCD is widely used in:
Industrial control systems
Factory automation (HMI panels)
Desktop monitors & POS terminals
Transportation information displays
Medical imaging equipment
Outdoor or semi-outdoor kiosks (high-brightness versions)
Test instruments and server monitoring systems
Its wide temperature tolerance, strong brightness capability, and IPS all-view optical mode make it a reliable choice for demanding professional environments.
| Category | Specification |
|---|---|
| Panel Size | 19.0 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1280 (RGB) × 1024, SXGA |
| Pixel Density | 86 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 376.32 (W) × 301.056 (H) mm |
| Viewing Area | 378.8 (W) × 303.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 25%), Hard Coating (3H) |
| Brightness (cd/m²) | 500 ~ 1500 nits |
| Contrast Ratio | 1000:1 (Typ.), Transmissive |
| Viewing Angle | 89/89/89/89 (CR ≥10) Left/Right/Up/Down |
| Optimal Viewing | All View / IPS Mode, Normally Black, Transmissive |
| Optical Mode Details | IPS hard-screen series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA soft-screen series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 14 ms (Typ., G-to-G) |
| Color Depth | 16.7M (72% NTSC) |
| Backlight Type | 19S2P WLED, 30,000 hrs, Driver not included |
| Weight | 1.46 / 1.54 kg (Typ./Max.) |
| Recommended Applications | Desktop Monitor, Industrial Display |
| Refresh Rate | 75 Hz 120 Hz (with built-in MEMC @60Hz input) 120 Hz + 120 Hz (panel + backlight) 240 Hz (60 Hz input) |
| Signal Interface | LVDS (2ch, 8-bit), 30-pin connector |
| Power Supply Voltage | 5.0V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
