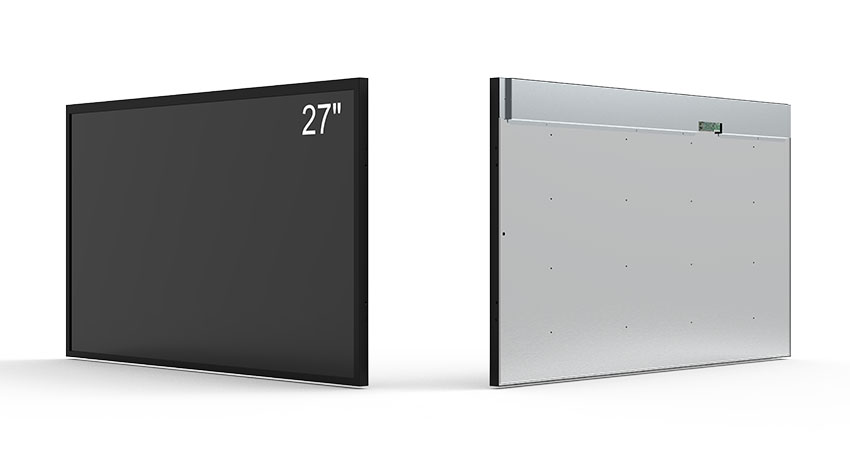

27" Industrial Ultra High Brightness LCD Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
27" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS270ENT-GE05 | 500 | 1920×1080 (FHD), 81 PPI |
| RS270ENT-GE10 | 1000 | 1920×1080 (FHD), 81 PPI |
| RS270ENT-GE15 | 1500 | 1920×1080 (FHD), 81 PPI |
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS270ENT-GD20 | 2000 | 1920×1080 (FHD), 81 PPI |
| RS270ENT-GD25 | 2500 | 1920×1080 (FHD), 81 PPI |
27.0" a-Si TFT-LCD Module Specifications
| Item | Specification |
|---|---|
| Panel Size | 27.0 inches |
| Panel Type | a-Si TFT-LCD (LCM) |
| Resolution | 1920 (RGB) × 1080, FHD, 81 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 597.888 (W) × 336.312 (H) mm |
| Viewing Area | 601.5 (W) × 339.95 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness (cd/m²) | 500 ~ 2500 |
| Contrast Ratio | 1000:1 (Typ.) [Transmissive] |
| Optical Mode | IPS, Normally Black, Transmissive |
| Screen Technology Series | IPS hard screen series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA soft screen series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Response Time | 14 ms (Typ., G to G) |
| Color Depth | 16.7M, 72% NTSC |
| Backlight Type | 17S4P WLED, 30K hours, No Driver |
| Weight | 2.89 / 3.04 kg (Typ./Max.) |
| Recommended Applications | Computer Monitor, Digital Signage |
| Refresh Rate | 75Hz 120Hz (60Hz input) via built-in MEMC 120Hz + 120Hz (Panel + Backlight) 240Hz (60Hz input) |
| Signal Interface | LVDS (2ch, 8-bit), 30-pin connector |
| Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Explanation
This 27-inch a-Si TFT-LCD module is designed for high-performance industrial and commercial display applications. Featuring FHD resolution, IPS wide-viewing technology, and ultra-high brightness options up to 2500 nits, it delivers excellent visibility under both indoor and outdoor environments.
The IPS normally-black optical mode ensures high contrast and accurate color reproduction even at off-axis viewing angles. With 75–240Hz refresh configurations, the panel supports smooth motion display, suitable for dynamic content and multimedia usage.
The module uses a durable anti-glare surface, 30,000-hour WLED backlight, and a robust operating temperature range, making it reliable for long-term industrial use. LVDS interface and 5V supply allow easy integration into existing system designs.
Applications
This display is ideal for:
✔ Computer Monitors
High-quality IPS panel ensures accurate colors
Smooth motion with optional MEMC
Suitable for office, gaming, and commercial desktop setups
✔ Digital Signage
Ultra-high brightness (up to 2500 nits) supports outdoor and semi-outdoor installations
Wide viewing angles enhance public visibility
Robust thermal rating for kiosks, retail signage, transportation displays
Other suitable scenarios include:
Control room displays
Industrial HMI terminals
Information kiosks
Public information displays
27.0" a-Si TFT-LCD Module Specifications
| Item | Specification |
|---|---|
| Panel Size | 27.0 inches |
| Panel Type | a-Si TFT-LCD (LCM) |
| Resolution | 1920 (RGB) × 1080, FHD, 81 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 597.888 (W) × 336.312 (H) mm |
| Viewing Area | 601.5 (W) × 339.95 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness (cd/m²) | 500 ~ 2500 |
| Contrast Ratio | 1000:1 (Typ.) [Transmissive] |
| Optical Mode | IPS, Normally Black, Transmissive |
| Screen Technology Series | IPS hard screen series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA soft screen series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Response Time | 14 ms (Typ., G to G) |
| Color Depth | 16.7M, 72% NTSC |
| Backlight Type | 17S4P WLED, 30K hours, No Driver |
| Weight | 2.89 / 3.04 kg (Typ./Max.) |
| Recommended Applications | Computer Monitor, Digital Signage |
| Refresh Rate | 75Hz 120Hz (60Hz input) via built-in MEMC 120Hz + 120Hz (Panel + Backlight) 240Hz (60Hz input) |
| Signal Interface | LVDS (2ch, 8-bit), 30-pin connector |
| Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
