Industrial LCD display has many advantages over commercial or consumer grade display, they can work under more rugged, such as high temperature, low temperature situation, RisingLCD can offer a series of indistrial LCD panel for you from size 10.1 inch to 98 inch.

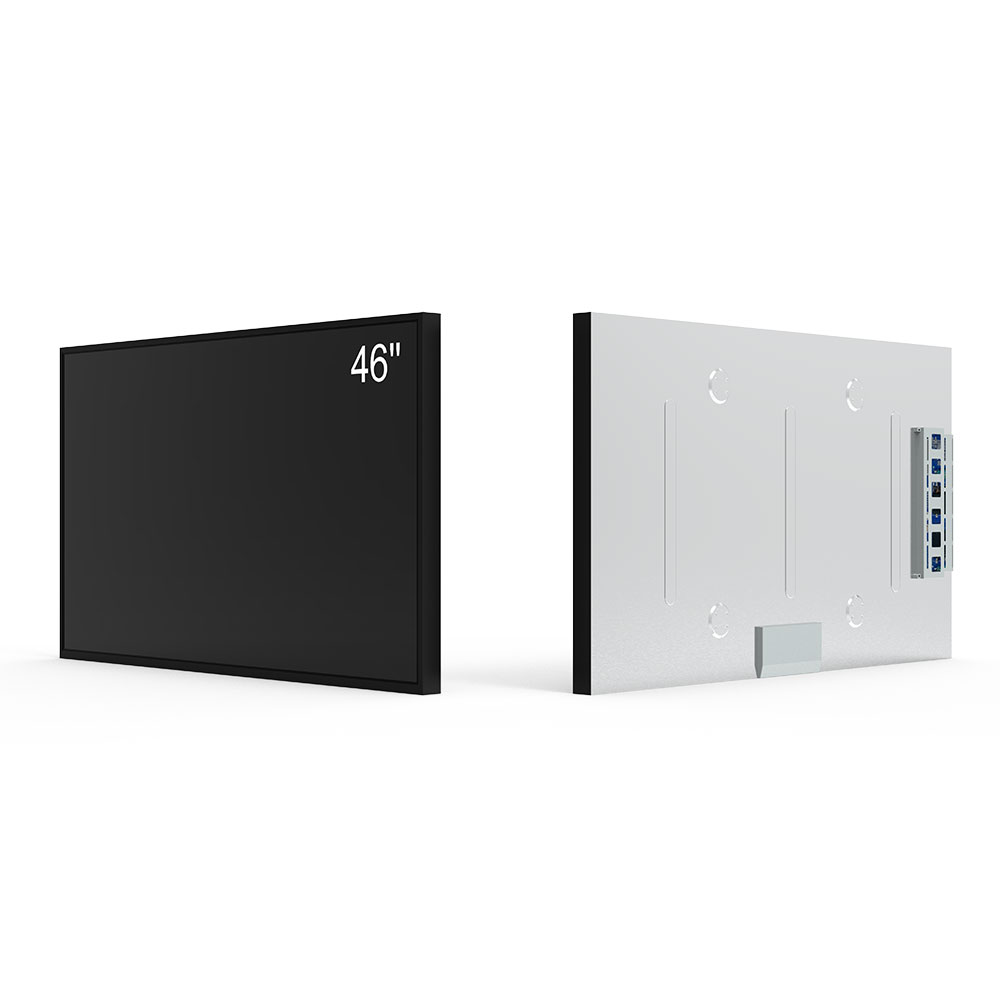

RS460HVN-GD30 is a 46-inch high brightness TFT LCD panel from Risingstar, use the own design backlight structure allowed the brightness reach 3000-nits, which is far higher than the general LCD panels and can be used by other manufacturers such like info kiosk maker, outdoor advertising player maker, outdoor tv maker, etc.
Risingstar LCD panels always has far higher brigthness than most of our competitors, for the specific 46-inches we can reached 4500 nits even much higher, more information please searching our website: www.risinglcd.com
Size (inch) | 32 | 43 | 46 | 49 | 55 |
Model number | RS320FHB-ND20 | RS430FHB-ND30 | RS460HVN-GD30 | RS490FHB-ND20 | RS550FHB-ND45 |
Brightness (cd/m2) | 2000 | 3000 | 3000 | 2000 | 4500 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
Contrast ratio | 1200:1 | 1200:1 | 4000:1 | 1200:1 | 1200:1 |
Operating temperature | 0 ~ 50℃ | 0 ~ 50 ℃ | -20 ~60℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Out of the ordinary: This panel using Hi-Tni panel from AUO directly, which gives it wide temperature range to adapt the extremely environment from -20 ℃ to 60℃, the surface temperature of the panel could reach 100℃ and keep working if necessary.
Top grade Open-cells: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.

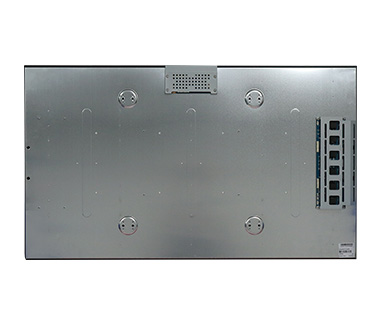

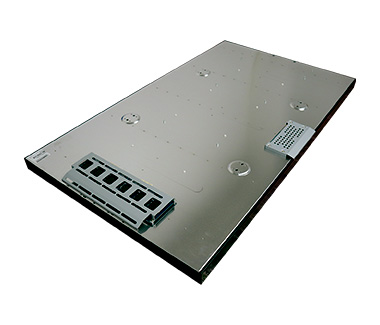

Full aluminum customize housing: All the LCD panel from Risingstar are using our own design housing with strength structure to protect the inner parts, it also means the screw holes on the housing can be customized by the requirements.
Direct-LED backlight structure: Risingstar own design LED bubble is directly under the open-cells of this panel, which allowed the LCD panel reached maximum brightness, for the specific 43-inch panel, it can reached 4000-nits.
High Tni LCD panel: The basic Risingstar LCD panel can keep working from 0 to 50℃ environmental temperature, which is enough for most of our customers; we also offered industrial level LCD panels which could keep working from -20 to 60℃ environmental temperature; Some of the Risingstar panels able to afford 110℃ surface temperature for a while, more details and data please contact with us.
Ultra wide viewing angle: Most of the Risingstar LCD panels using IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.

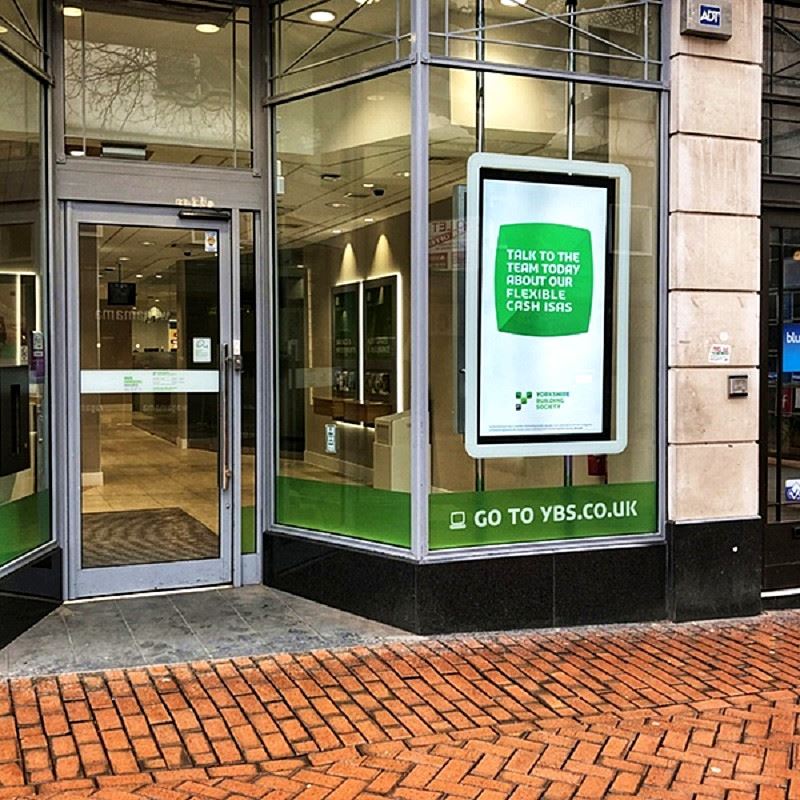

Window facing display series:
RS430LNX01P01, lower brightness but full waterproof indoor display, special product for low light environment such like Museum/Aquarium...
RS430HNX02D05, much thincker and heavier type, but lower consumption and unique outer shell, all these for "Mute"...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display
| Screen Diagonal | 46 inch |
| Brand | RisingLCD |
| Model No | RS460HVN-GD30 |
| Active Area | 1018.08(W)×572.67(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 47PPI |
| Physical Size | 1050.6*610.3*60.3mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 4000:1 |
| White Luminance ( Center ) | 3000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 6.5 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 9.0kgs(Typ.) |
| Interface Type | LVDS (2 ch, 8/10-bit) , 51 pins |
| Support Color | 16.7M/1.07B , 75% NTSC |
| Surface Treatment | Antiglare (Haze 44%) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
| High temperature LC(-20℃~110℃) |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
