65 inch high brightness open frame TFT LCD monitor

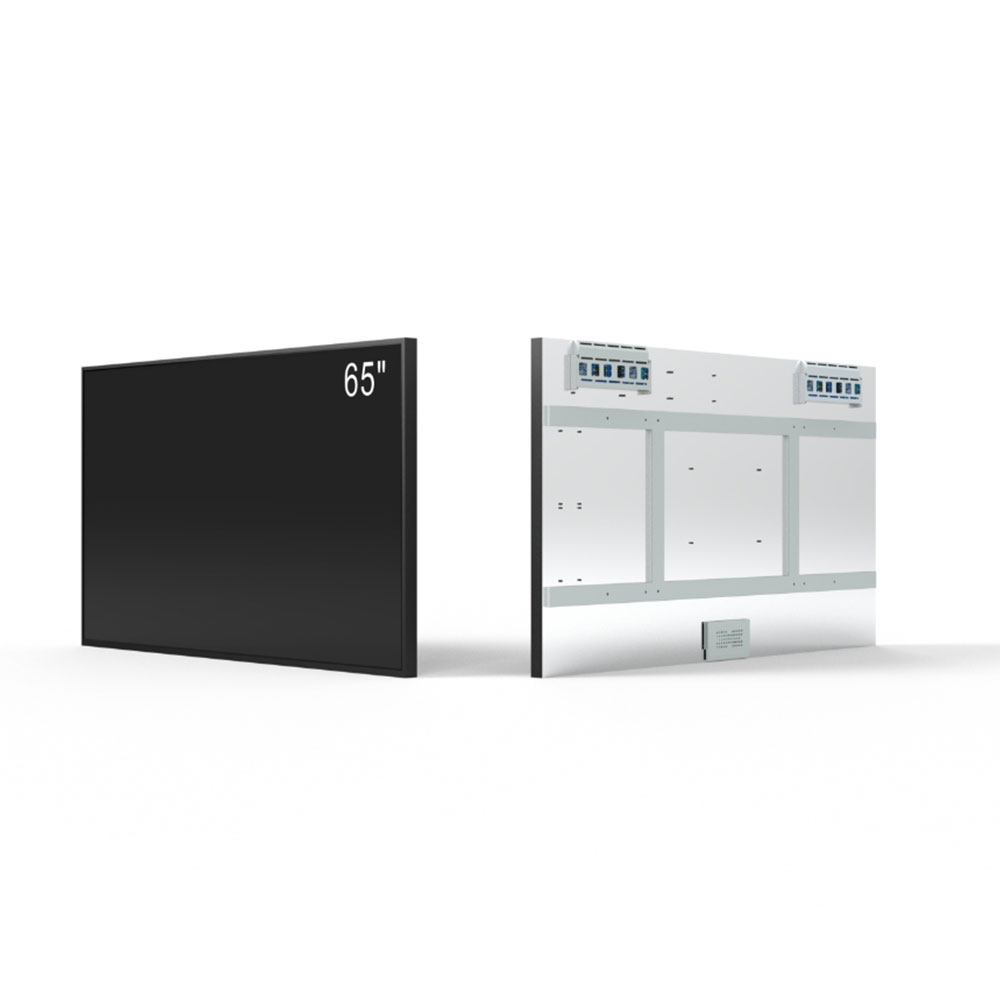

65" Open Frame Monitor
Key Features
High brightness 2000 nits
Sunlight Readable
LED Backlight
Wide Viewing Angle of 178°(H), 178°(V)
Wide Operating Temperature (-20˚C ~ 60˚C)
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: 50,000 hours
Intelligent temperature control system, active heat dissipation
Specifications
| Item | Description |
|---|---|
| Model Name | RS650FNX01D01 |
| Screen Size | 65" |
| Display Area (mm) | 1428.48(H) × 803.52(V) |
| Brightness | 2000 cd/m² |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.372(H) × 0.372(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time | 8 ms (Typ., Tr/Td) |
| Input Interface | USB ×1, HDMI ×2, AC IN ×1 |
| OSD Key | INPUT / MENU / VOL- / VOL+ / CH- / CH+ / POWER / IR Remote Control |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | 530W |
| Radiator System | N/A |
| Dimensions (mm) | 1461 × 843.1 × 86 |
| Mounting | N/A |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Support & Shipping
01 / Warranty Policy
Complete System
3 Years Full Warranty for the complete machine assembly. 1 Year Warranty for the original LCD module. Optional extended warranty programs available.
02 / Field Support
Remote & On-site
24/7 technical support and configuration guidance via video link or remote access. Local on-site installation available for large deployments.
03 / Production Timeline
Scalable Manufacturing
Verification and custom prototype delivery within 10 Working Days. Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable Logistics
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS). Cost-optimized bulk shipping in 30 - 45 Days for major ports.
