15.6 Inch Sunlight Readable Display Outdoor and Industrial Display Solutions

The 15.6-inch form factor has become a preferred choice for outdoor and industrial display applications. At 344 × 194 millimeters of active area with a 16:9 widescreen ratio, it offers sufficient space for complex interfaces while fitting into compact enclosure designs. The format aligns with standard UI frameworks, reducing software adaptation costs during hardware migration. Power consumption is moderate compared to larger panels—a relevant consideration for solar-powered kiosks and battery-backup systems.

Deploying displays in outdoor and harsh environments requires more than selecting a bright panel. Sunlight readability, thermal stability, touch reliability, and environmental sealing must all be addressed to deliver continuous operation over the product lifecycle. This article outlines the technical considerations and product configurations for 15.6 inch sunlight readable displays across common application scenarios.

Technical Challenges and Engineering Solutions

Outdoor and semi-outdoor installations expose displays to conditions that standard consumer-grade panels cannot withstand.

Ambient Light and Glare: Outdoor ambient light levels routinely exceed 10,000 lux under direct sun. A standard 300–500 nit panel appears washed out or unreadable in these conditions. High-brightness backlights—ranging from 500 to 1,500 cd/m² in our 15.6-inch series—address this directly. Anti-glare matte finish combined with a 3H hard coating further reduces surface reflections.

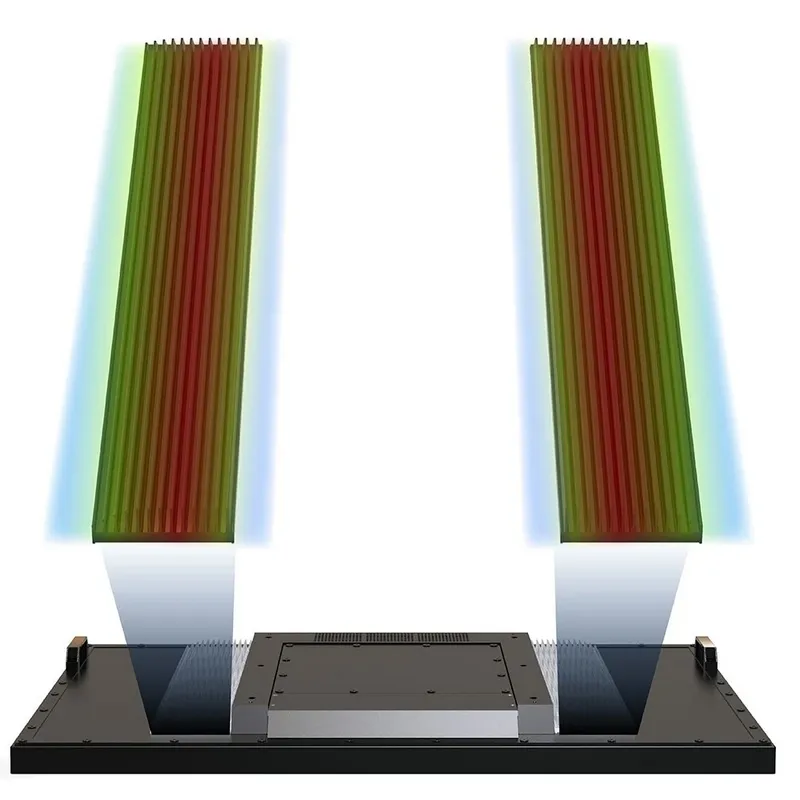

Thermal Load: Direct solar exposure can raise screen surface temperatures above 100°C. Standard liquid crystal materials begin to degrade at 60–70°C, leading to thermal blackening. Hi-Tni (High-Temperature transition) materials remain stable up to 110°C, preventing this failure mode in extreme climates.

Touch Reliability: Capacitive touch controllers for outdoor use must handle rain, condensation, and gloved operation. Water-rejection algorithms prevent false touches from droplets. Glove-detection sensitivity is calibrated for common work glove materials.

Environmental Sealing: IP65/IP66 ratings keep dust and water out. Conformal coating on PCBs and connectors prevents corrosion from salt spray, humidity, and industrial chemicals.

Backlight Longevity: WLED backlights rated up to 50,000 hours (approximately 5.7 years of continuous operation) ensure the display maintains brightness over its intended lifespan. PWM dimming (5%–100%) enables automatic brightness adjustment based on ambient light, extending backlight life and reducing power consumption.

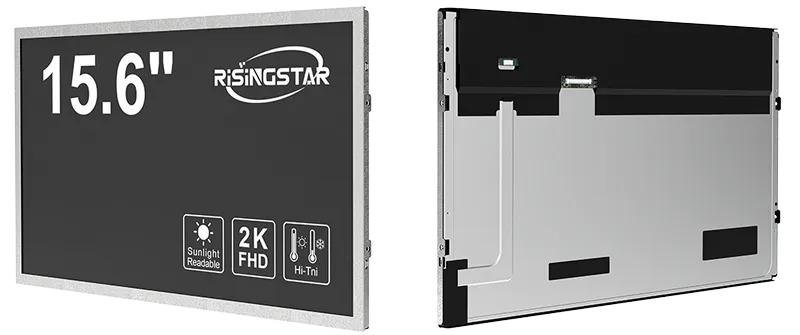

Product Series Overview

Our 15.6-inch sunlight readable display series covers a range of brightness levels and panel technologies to match different application requirements.

Resolution Choices

WXGA (1366×768) delivers a cost-effective solution for applications where ultra-high resolution is not critical. TN mode provides fast response (8ms) and lower cost. Suitable for parking lot displays, outdoor digital signage, bus stop displays, and industrial status monitors.

FHD (1920×1080) offers full HD clarity with IPS mode for wider viewing angles (89° all directions) and better color accuracy (16.7M colors, 8-bit). Suitable for applications requiring detailed graphics or multi-line text: EV charging interfaces, interactive kiosks, medical terminals, security displays, and high-end industrial HMI.

Brightness Options

The series provides multiple luminance tiers to match environmental conditions:

(Explore our 15.6 inch sunlight readable display solutions)

Hi-Tni Wide-Temperature Options

For installations exposed to sustained solar heating, Hi-Tni versions (RS156HCE series) provide enhanced thermal resilience. These panels maintain image integrity at surface temperatures that would cause standard LC materials to blacken. Recommended for outdoor enclosures without active cooling, desert climates, and applications with continuous sun exposure.

Application Configurations

EV Charging Stations

Displays at EV charging stations must be readable in direct sun and operable in all weather conditions. The payment interface, pricing display, and charging status must be clearly visible to users approaching from various angles.

Recommended configuration: FHD resolution for clear text and icons; 1000–1500 cd/m² for direct sun readability; IPS panel for wide viewing angles; PCAP touch with water rejection and glove detection; IP65 sealing for weather protection. Hi-Tni version recommended for unshaded installations.

Suitable models: RS156HCE-GE10 (1000 nit, Hi-Tni) or RS156HCE-GE15 (1500 nit, Hi-Tni) for extreme sun; RS156HAN-GE10 for shaded locations.

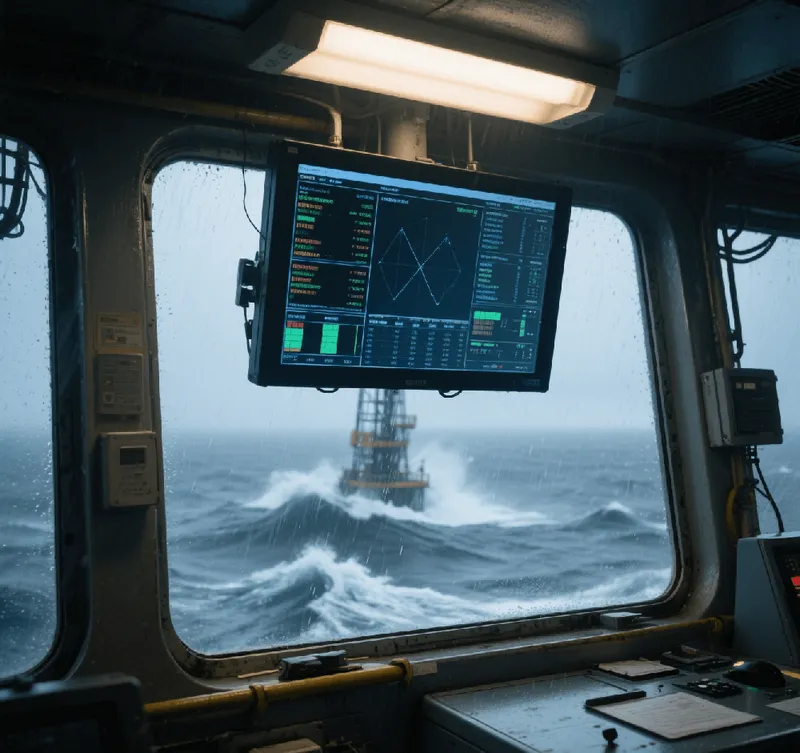

Marine Navigation

Bridge consoles and chartplotter displays face salt spray, high humidity, and reflected glare from water. Space constraints require compact panels that remain legible from typical viewing distances.

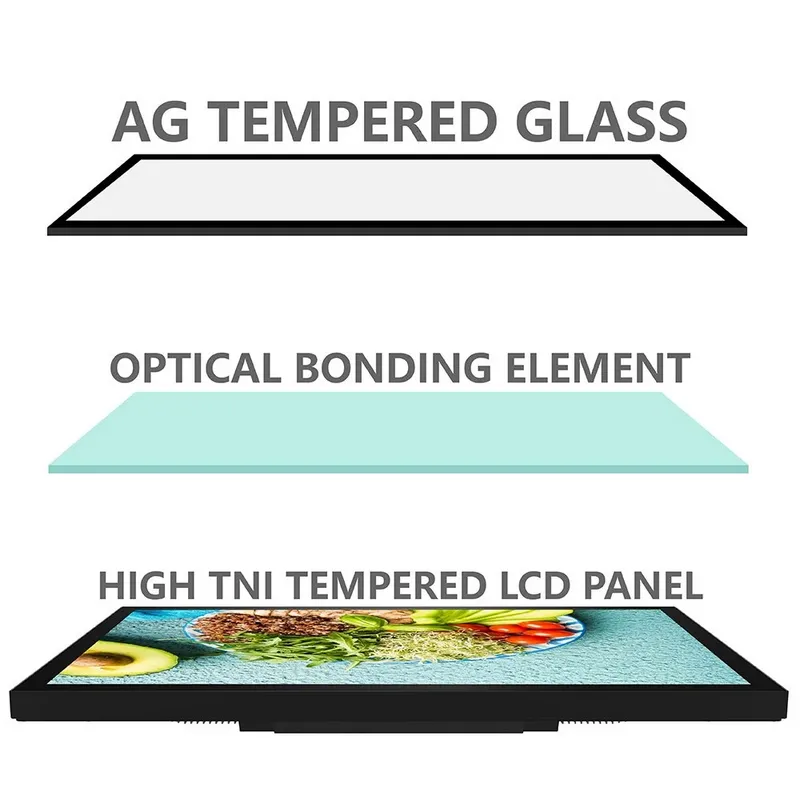

Recommended configuration: FHD resolution for chart detail; 1000–1500 cd/m² to cut through water glare; IPS panel for consistent color at off-axis viewing positions; optical bonding to prevent internal fogging; IP66 rating and salt-spray-resistant coating.

Suitable models: RS156HCE-GE10 or RS156HCE-GE15 with optical bonding option.

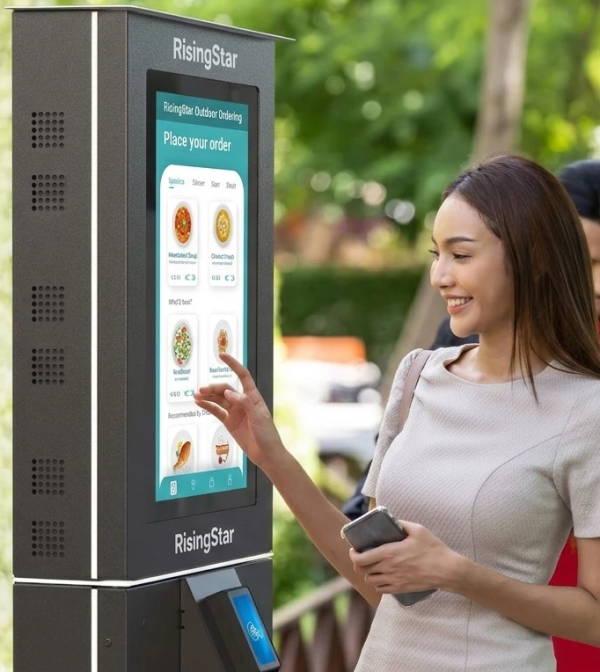

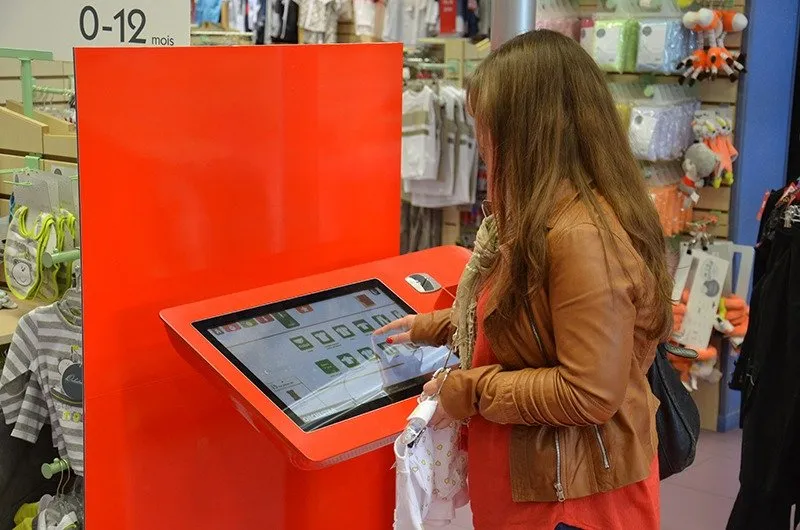

Outdoor Kiosks and Self-Service Terminals

Public-facing terminals require vandal resistance, UV stability, and clear visibility in varying light conditions. The 15.6-inch format fits standard kiosk enclosure designs while providing adequate space for interactive content.

Recommended configuration: 1000–1500 cd/m² depending on installation angle and shading; anti-vandal tempered glass; UV-resistant front surface; open-frame design for enclosure integration.

Suitable models: RS156XW-NE10 or RS156XW-NE15 for cost-sensitive applications with acceptable TN viewing angles; RS156HCE series for premium installations requiring IPS color accuracy.

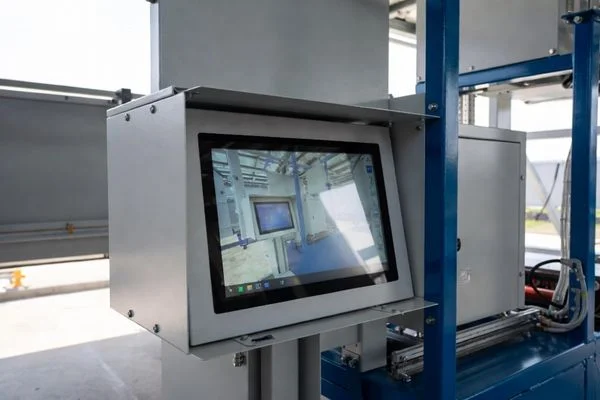

Industrial HMI Panels

Factory floor HMI displays often operate in controlled lighting where excessive brightness causes eye strain during long shifts. Glove operation is common in manufacturing, food processing, and mining environments.

Recommended configuration: 500–800 cd/m² sufficient for most indoor industrial lighting; glove-touch capable PCAP; wide operating temperature range (-20°C to 70°C for cold storage to foundry environments); conformal coating for dust and chemical resistance.

Suitable models: RS156XW-NE05 or RS156XW-NE07 for basic status displays; RS156HAN-GE05 or RS156HCE-GE08 for applications requiring IPS color accuracy.

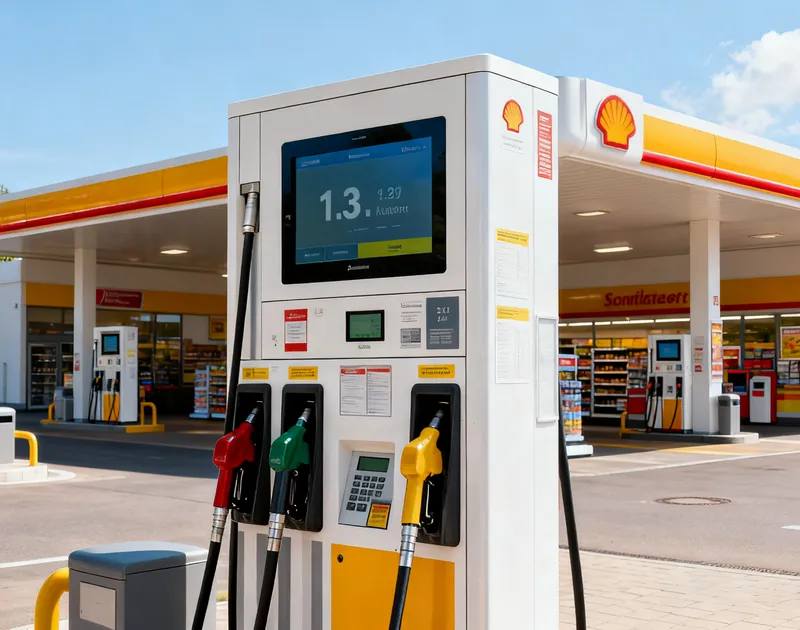

Fuel Dispensers and Retail Pumps

Displays at fueling stations face UV exposure, fuel vapor, temperature cycling, and users who may not remove gloves. The 15.6-inch format fits standard pump bezels.

Recommended configuration: 1000–1500 cd/m² for visibility from inside vehicles; UV-resistant cover glass; vapor-sealed enclosure; glove-capable touch. (See our 15.6" Gas Pump Touch Monitor)

Suitable models: RS156HCE-GE10 with ruggedized touch option.

Model Selection Guide

Interface and Integration

LVDS (WXGA series): 30-pin LVDS 1ch 8-bit interface, compatible with mainstream industrial motherboards and embedded platforms. No adapter required for most LVDS-equipped systems.

eDP (FHD series): 30-pin eDP 2-lane interface, modern standard for higher-resolution panels. Compatible with current-generation single-board computers and industrial PCs.

Both series feature built-in LED drivers supporting PWM dimming (5%–100%) for automatic brightness control via ambient light sensors.

Mechanical dimensions (363.8 × 215.9 × ~17 mm) are consistent across the series, enabling enclosure designs that accommodate multiple panel options without rework.

Quality and Support

We operates a 4,000 m² ISO 9001-certified facility in Shenzhen with Class 10,000 cleanrooms. Panel materials are sourced from Tier-1 suppliers including LG Display, AUO, and BOE. Each unit undergoes a 72-hour high-temperature burn-in test to verify thermal stability and touch accuracy. Standard warranty is 3 years for all industrial display products.

Backlight life is rated up to 50,000 hours, enabling 5+ years of continuous 24/7 operation under normal conditions.
