In the current bidding competition for self-service ticket machine equipment projects, purchasers have put forward higher requirements for the technical standards of terminal equipment, especially in terms of screen display. A display screen with high definition, high brightness and all-weather visibility can not only significantly improve the user experience, but also become an important basis for purchasers to evaluate brand strength and technical level. A clear, stable and sun-readable screen is often the key weight for companies to increase their bid winning rate.

  display solution provider specializing in the self-service ticket terminal industry, RisingStar provides customized 27-inch sunlight-readable displays for self-service ticket machine equipment manufacturers. It has been successfully used in public transportation hubs, scenic spot entrances and business districts in many places, helping equipment manufacturers win trust and stand out in high-standard projects.

What RisingStar does for self-service ticket machine equipment manufacturers

1. Provide a variety of sizes and brightness options

From 10.1" to 110", it fully covers standard 16:9, 4:3 and bar screen sizes to meet the design requirements of different self-service terminal equipment. The brightness can reach up to 5000nits, and it is still clearly visible in complex environments such as strong light and outdoors. It is especially suitable for scenes such as bus stations, self-service ticket machines, and parking terminals.

2. Industrial-grade high-stability products

All products are designed according to industrial standards, with high contrast, low energy consumption, low heat generation, and long life (≥50,000 hours). Adopting direct backlight technology and all-aluminum alloy frame structure, the whole machine is lightweight and has good heat dissipation performance, which is suitable for all-weather continuous operation.

3. High reliability factory test process

Each shipped equipment must pass an 8-hour -20℃ to 60℃ extreme temperature cycle test, and conduct a 24-48-hour uninterrupted aging operation test to effectively eliminate early faults and ensure the stability of project site deployment.

4. Comprehensive coverage of module and whole machine solutions

We not only provide LCD modules, but also one-stop display solutions such as open display, fully waterproof whole machine, and front waterproof whole machine to reduce the whole machine development cycle and speed up product landing.

5. Common module models are available in stock

Including AA121TD02, LD270EUY-SPN2, DV430FHB-R00, LD550EGY-SSA1 and other popular models, ensuring a stable supply chain and quick response to customer project needs.

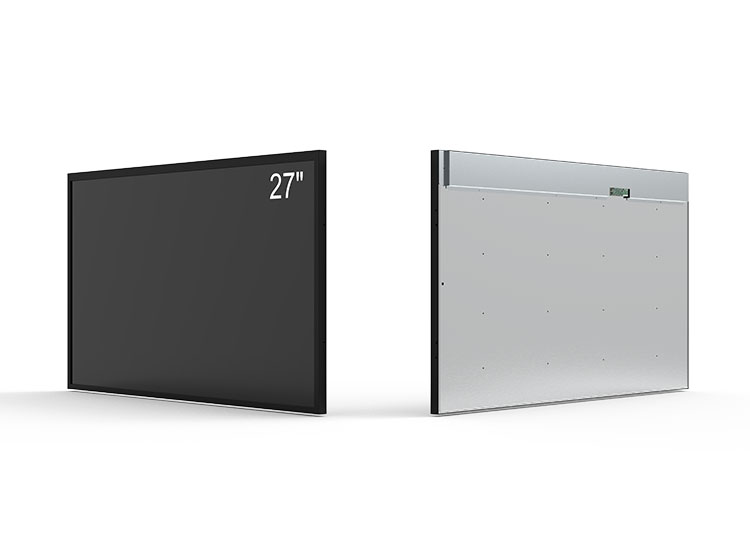

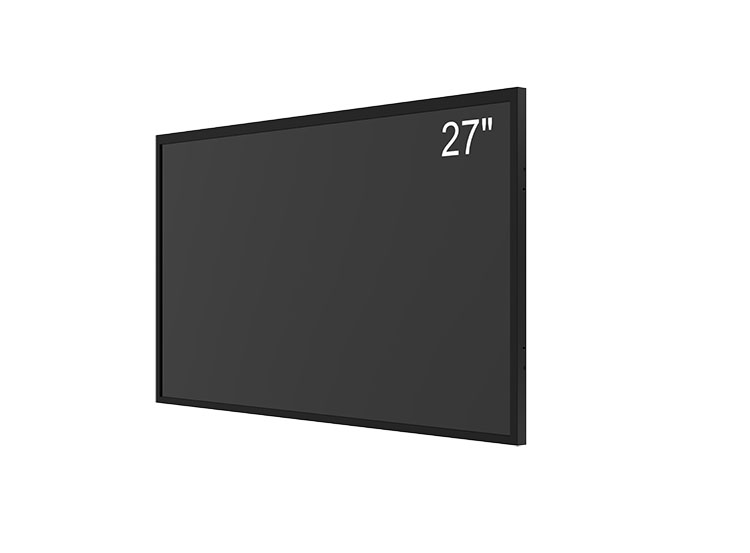

RisingStar 27 inch high brightness display - the reliable core of self-service terminals and digital signage

RisingStar focuses on providing high-performance display solutions for self-service ticket machines, industrial control terminals, smart interactive devices, etc. Our 27-inch industrial-grade high-brightness display integrates advanced TFT-LCD technology and industrial-grade structural design to provide equipment manufacturers with a stable, clear, and all-weather readable display experience. It is an ideal choice to meet the high standards of current public information systems and self-service terminal projects.

Panel size: 27.0 inches, 16:9 standard widescreen

Resolution: 1920×1080 (FHD), pixel density: 81PPI

Display area: 597.888(W) × 336.312(H) mm

Brightness: 300 nits (customizable to 1000/1500/2000+ nits)

Contrast ratio: 1000:1 (typical value)

Viewing angle: 178° wide viewing angle (IPS technology), clear and visible in all directions

Response time: 14ms (Typ., G to G)

Backlight: 17S4P WLED array, life span 30,000 hours

Operating temperature range: 0 \~ 50°C, storage temperature: -20 \~ 60°C

Interface type: LVDS (2 ch, 8-bit), 30 pins

Surface treatment: anti-glare matte + hard coating (3H)

1. High brightness sunlight readable, strong adaptability to outdoor environment

Although the standard brightness is 300 nits, RisingStar can customize a high brightness version for terminal manufacturers, supporting up to 1000 to 1500 nits, ensuring that the content is still clear and readable in strong sunlight or bright outdoor environments. It is the preferred solution for public areas such as bus stops, self-service ticket purchases, and self-service parking payments.

2. IPS full-viewing angle hard screen technology, high-definition restoration of every detail

Adopting IPS wide-viewing angle hard screen, providing a 178° viewing angle up, down, left, and right, combined with the normally black display mode, it can maintain consistent color and brightness at any angle, adapting to public scenes where multiple users watch at the same time, without obvious color cast or color change.

3. Industrial-grade structural design, stable operation and more durable

Supports 7×24 hours of continuous operation, suitable for all-weather open scenes

The backlight life is up to 30,000 hours, ensuring long-term trouble-free use

The screen structure is thin and light, only 14mm thick, which is easy to embed into various terminal shells

The all-aluminum metal backplane structure improves the overall strength and reduces the weight, and the heat dissipation performance is better than the traditional iron shell structure

4. Strict testing process to ensure the quality of shipment

RisingStar implements a strict quality assurance process for each shipped product, including:

-20°C to 60°C extreme temperature cycle test, up to 8 hours, to ensure adaptation to extreme climates

24\~48 hours of uninterrupted aging operation test to troubleshoot early faults and ensure the stability of on-site deployment

Optional IP-level waterproof design whole machine solution, adapted to the needs of outdoor self-service equipment

RisingStar 27-inch high-brightness industrial-grade LCD screen, combined with high-brightness display, wide viewing angle experience, industrial-grade stability and flexible customization capabilities, is the ideal core display component in current public information display and self-service terminal projects. We not only provide modules, but also provide complete machine support solutions to help terminal equipment manufacturers respond to the market quickly and win tenders steadily.
