| Item | Specification |
|---|---|
| Screen Diagonal | 14.1 inch |
| Brand | RisingStar |
| Model No. | RS140XTM-GE12 |
| Active Area | 344.218(W) × 98.604(H) mm |
| Resolution | 1440(RGB)×900, WXGA+, 120PPI |
| Physical Size | 360(W) × 122.95(H) × 8.7(D) mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio | 1200:1 |
| White Luminance (Center) | 500 ~ 5000 nits |
| Optical Response Time | 6 ms (Typ., G→G) |
| Nominal Input Voltage | 12V (Typ.) |
| Viewing Angle | 89/89/89/89° (Min., CR ≥ 10) |
| Weight | 550 g (Typ./Max.) |
| Interface Type | eDP (2 Lanes), eDP1.3, HBR2 (5.4 Gbps/lane), 30 pins |
| Support Color | 16.7M (72% NTSC) |
| Surface Treatment | Matte |
| RoHS Compliance | Yes |
| Operating Temperature | -20 ~ 70°C |
| Storage Temperature | -20 ~ 65°C |
The RisingStar RS140XTM-GE12 is a 14.1-inch high-brightness TFT-LCD display designed for industrial and professional applications. With 283 PPI high pixel density and a wide brightness range of 500–5000 nits, it ensures excellent visibility even under direct sunlight.
The display features 1200:1 contrast ratio, 6ms response time, and 72% NTSC color gamut, delivering sharp and vibrant images. Its matte surface treatment reduces glare, and the wide viewing angles (89/89/89/89°) ensure consistent image quality from multiple perspectives.
The lightweight design (550g) combined with a wide operating temperature range makes it ideal for demanding industrial environments. The high-speed eDP1.3 HBR2 interface ensures smooth data transmission, compatible with a variety of embedded and industrial systems.

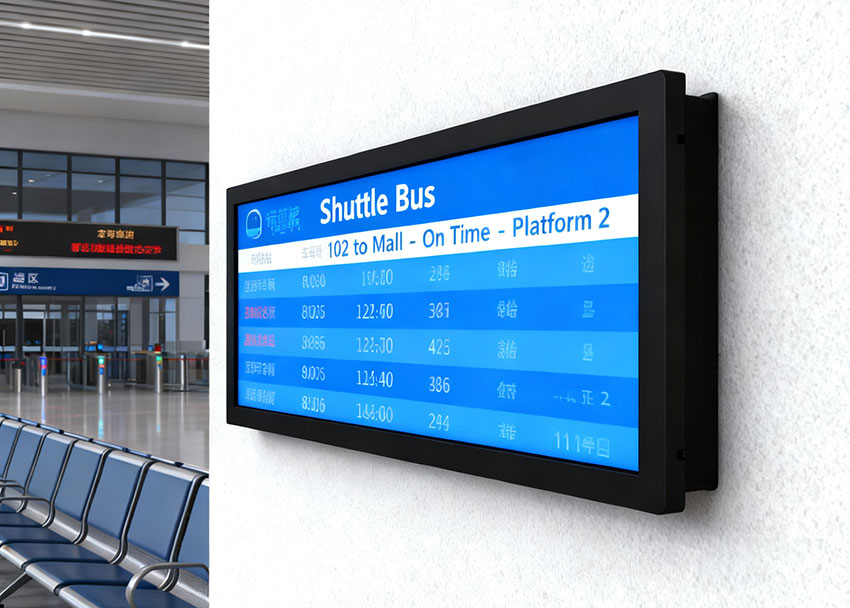

1. Passenger Information Display (Transportation)
Perfect for trains, metros, and buses.
Especially suitable for elongated UI layouts (3840 × 1100 resolution).
2. Outdoor and Semi-Outdoor Digital Signage
With up to 5000 nits brightness, readable under direct sunlight.
Applications: outdoor advertisement bars, EV charging stations, fuel dispensers, smart city wayfinding screens.
3. Industrial Control and Equipment Display
Stable performance under wide temperature ranges.
Low power consumption and long lifespan suitable for industrial control panels, factory automation, and precision equipment.
4. Retail and Commercial Display
Slim, elongated form factor ideal for shelf displays, product information bars, and mall guidance screens.
| Screen Diagonal | 14.1 inch |
| Brand | Risingstar |
| Model No | RS140XTM-GE12 |
| Active Area | 344.218(W)×98.604(H) mm |
| Resolution | 1440(RGB)×900, WXGA+, 120PPI |
| Physical Size | 360(W)×122.95(H)×8.7(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1200:1 |
| White Luminance ( Center ) | 500~5000nits |
| Optical Response Time | 6 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Weight [kg] | 550g (Typ./Max.) |
| Interface Type | eDP (2 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 30 pins |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Matte |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~60 °C |
| Storage (Non-Operating) | -20 ~ 65 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
