RisingStar's 23.8 inch outdoor sunlight readable LCD display is engineered for high-performance visibility in harsh, high-ambient-light environments. Featuring a native Full HD resolution of 1920×1080 with 92PPI, this a-Si TFT-LCD module delivers crisp, detailed visuals across a generous display area of 527.04(W) × 296.46(H) mm. With an ultra-brightness range from 1000 to 5000 nits, it ensures exceptional readability under direct sunlight, making it ideal for outdoor kiosks, industrial control systems, and healthcare equipment.
Utilizing advanced AHVA (IPS-like) optical technology, this display offers true wide viewing angles of 89° in all directions and a high contrast ratio of 1000:1 for vivid image reproduction. The anti-glare surface with a hard coating (3H) enhances durability and clarity, while the panel supports 16.7 million colors with 75% NTSC coverage for accurate color representation.
Built with a robust WLED backlight rated for 30,000 hours, the module supports a 60Hz refresh rate with optional MEMC upgrades for smoother motion handling. Its slim profile (543×317.4×11.65 mm) and light weight (approx. 2.28 kg) allow for easy integration into outdoor enclosures. With wide operating temperatures (-20°C ~ 70°C) and a storage range down to -20°C, this industrial-grade LCD is ready for demanding field applications. Signal input is via LVDS (2 channel, 8-bit, 30-pin), and the unit operates on a 5.0V power supply.

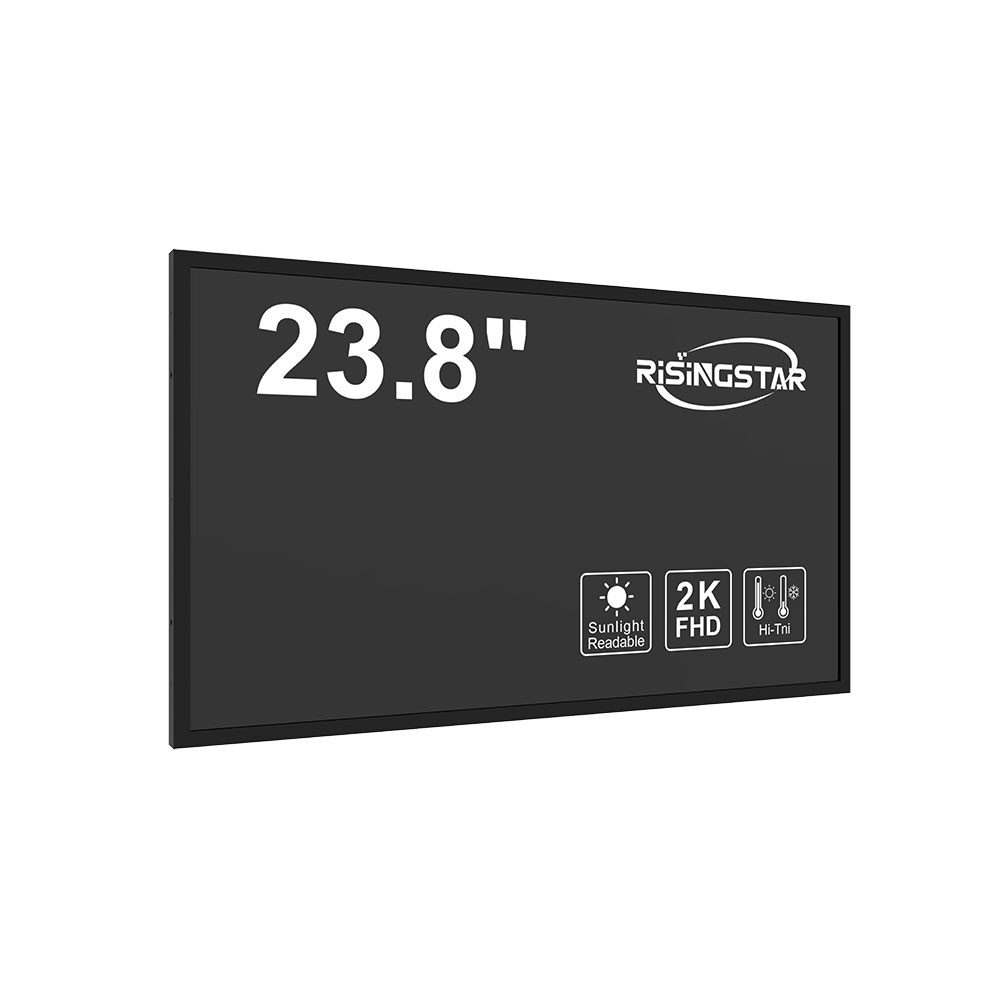

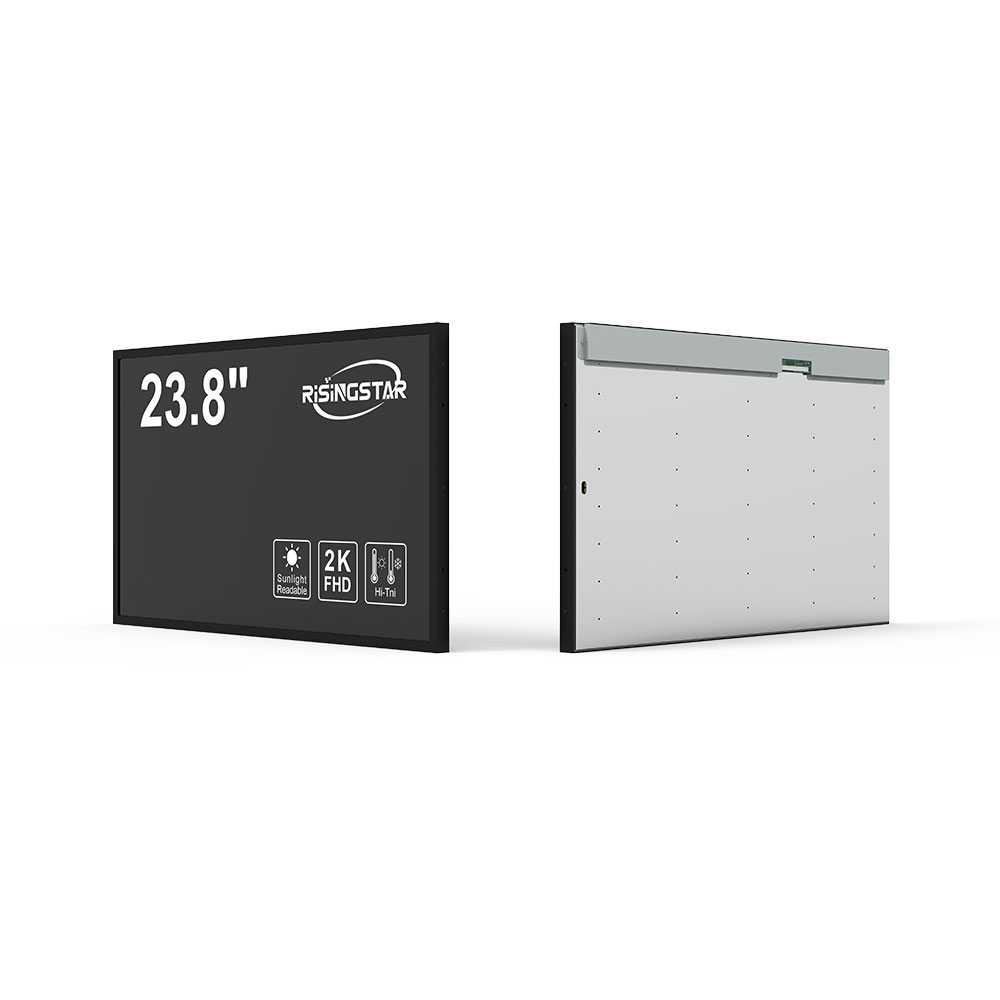

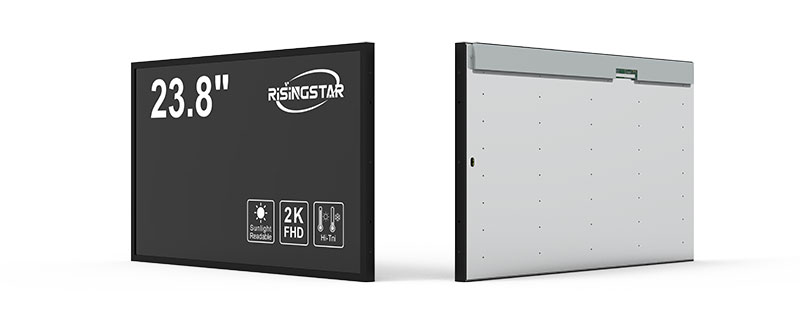

Physical product

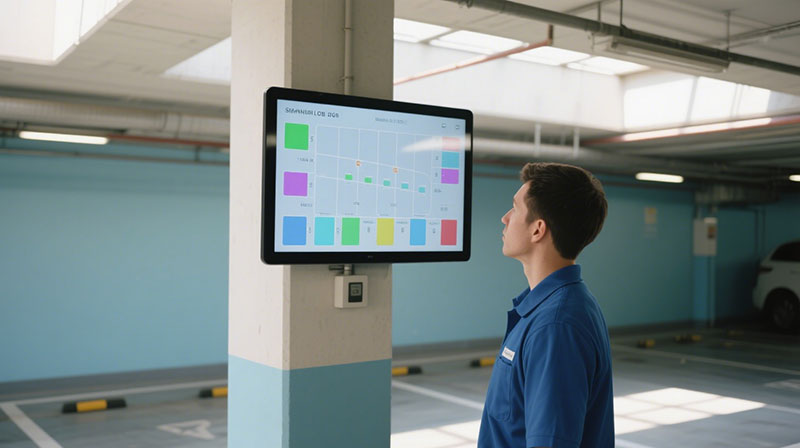

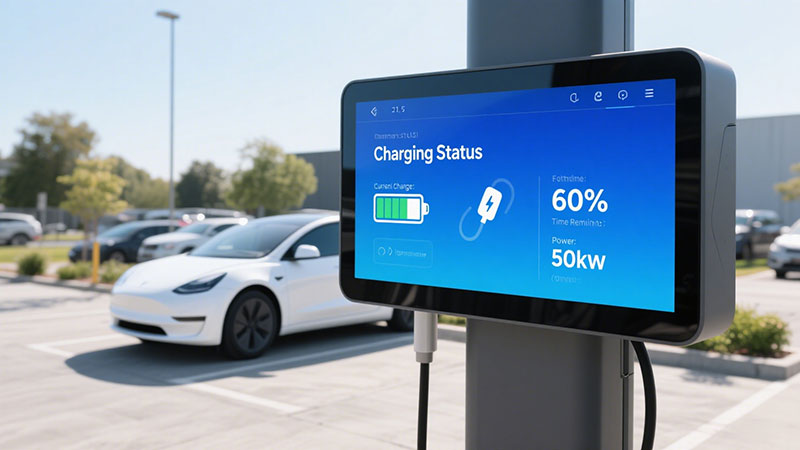

Application examples
Technical Specifications of 23.8 Inch Outdoor Sunlight Readable LCD Display
| Specification | Details |
|---|---|
| Screen Size | 23.8 inch |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1920 (RGB) × 1080 (FHD), 92 PPI |
| Display Area | 527.04 (W) × 296.46 (H) mm |
| Outline Dimensions | 543 (W) × 317.4 (H) × 11.65 (D) mm |
| Active Viewing Area | 530.2 (W) × 299.6 (H) mm |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 1000:1 (Typical, Transmissive) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR≥10) |
| Optical Mode | AHVA (IPS-like), Transmissive, Black Normally |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Color Depth | 16.7M Colors, 75% NTSC |
| Response Time | 14 ms (Typ., G to G) |
| Backlight Type | 17S4P WLED, 30,000 hours, Driverless |
| Touch Function | None |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Power Supply | 5.0V (Typical) |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -20°C ~ 70°C |
| Weight | 2.28 ± 0.08 kg |
| Refresh Rate | 60Hz (Optional: 120Hz with MEMC, up to 240Hz input support) |
| Application Fields | Outdoor Kiosks, Industrial Control |
Ultra High Brightness: 1000–5000 nits for clear outdoor visibility in direct sunlight.
Wide Viewing Angles: 89° horizontal and vertical, ensuring consistent image quality.
Durable Design: Anti-glare surface with hard coating (3H) for maximum protection.
Long Lifespan: WLED backlight rated for 30,000 hours.
Rugged & Reliable: Operating temperature from -20°C to 70°C, perfect for diverse environments.
Flexible Integration: Multiple interface options (HDMI, LVDS, DisplayPort) and mounting solutions.
Outdoor Digital Signage – advertising kiosks, retail displays, and public information boards.
Industrial Control Systems – factory floors, energy sites, and transportation hubs.
Interactive Kiosks & Terminals – ATM-like devices, ticketing machines, and self-service stations.
| Environment | Recommended Brightness | Example Applications |
|---|---|---|
| Indoor bright areas | 1000–1500 nits | Retail displays, malls |
| Semi-outdoor / shaded | ~2000 nits | Bus shelters, transport hubs |
| Direct sunlight | 2500–5000 nits | Outdoor digital signage, energy & industrial sites |
Years of experience in industrial high-brightness LCD manufacturing.
Strict quality control and reliability testing.
ISO-certified production and compliance with CE/RoHS standards.
2-year warranty with lifetime technical support.
Customizable options: brightness, interfaces, touch capabilities, and mounting.
“The 23.8″ display performs flawlessly outdoors. Even in direct sunlight, all content is vivid and readable.” – John Doe, Marketing Manager
“Installed in a harsh industrial site, this display has proven reliable for over a year with no performance issues.” – Energy Equipment Integrator
Experience the performance of RisingStar’s 23.8″ Sunlight Readable LCD Display in your application. Contact us today for samples, technical guidance, or a custom solution.
📞 Tel/WhatsApp: +86-158-8946-9208
📧 Email: ai@risinglcd.com
| Specification | Details |
|---|---|
| Screen Size | 23.8 inch |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1920 (RGB) × 1080 (FHD), 92 PPI |
| Display Area | 527.04 (W) × 296.46 (H) mm |
| Outline Dimensions | 543 (W) × 317.4 (H) × 11.65 (D) mm |
| Active Viewing Area | 530.2 (W) × 299.6 (H) mm |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 1000:1 (Typical, Transmissive) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR≥10) |
| Optical Mode | AHVA (IPS-like), Transmissive, Black Normally |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Color Depth | 16.7M Colors, 75% NTSC |
| Response Time | 14 ms (Typ., G to G) |
| Backlight Type | 17S4P WLED, 30,000 hours, Driverless |
| Touch Function | None |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Power Supply | 5.0V (Typical) |
| Operating Temperature | -20 ~ 70°C |
| Storage Temperature | -20 ~ 70°C |
| Weight | 2.28 ± 0.08 kg |
| Refresh Rate | 60Hz (Optional: 120Hz with MEMC, up to 240Hz input support) |
| Application Fields | Outdoor Kiosks, Industrial Control |
