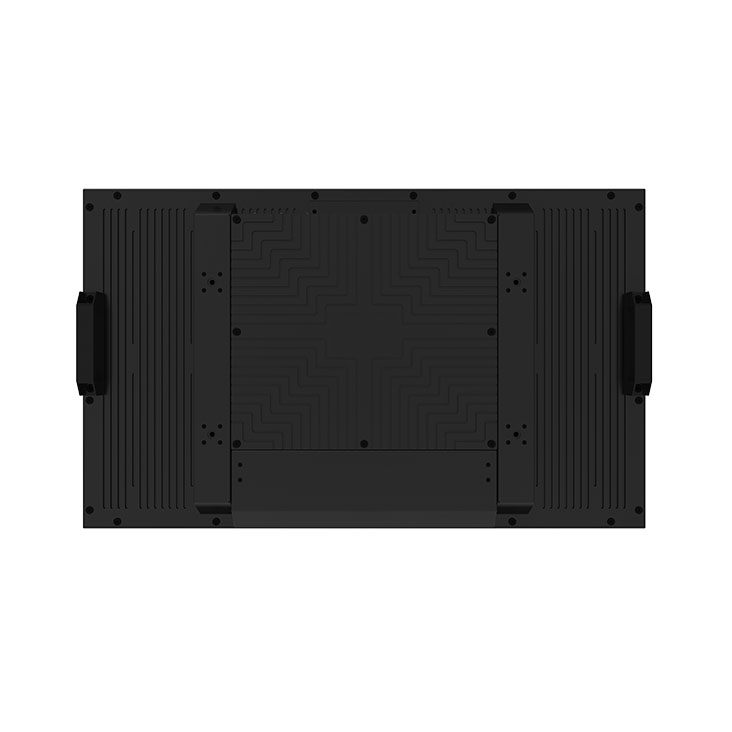

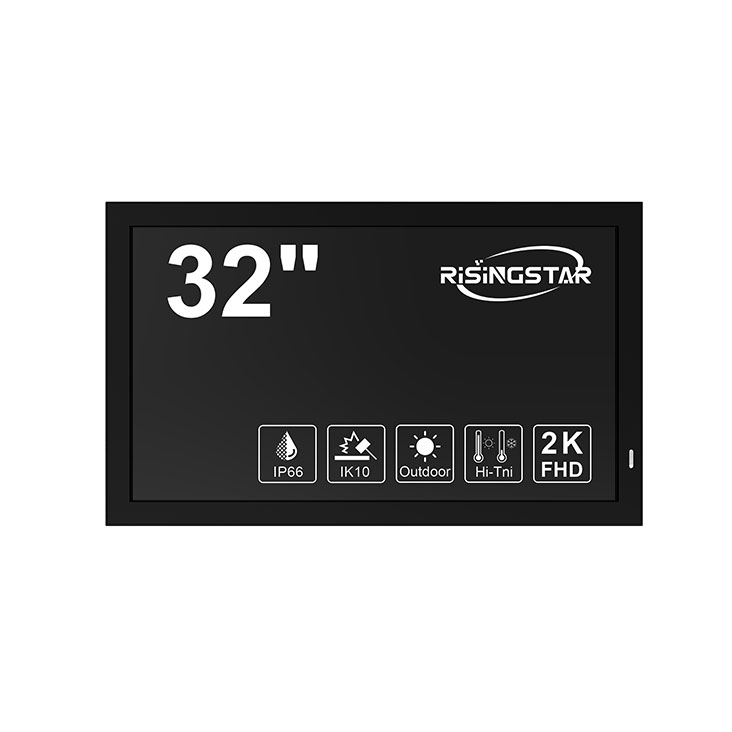

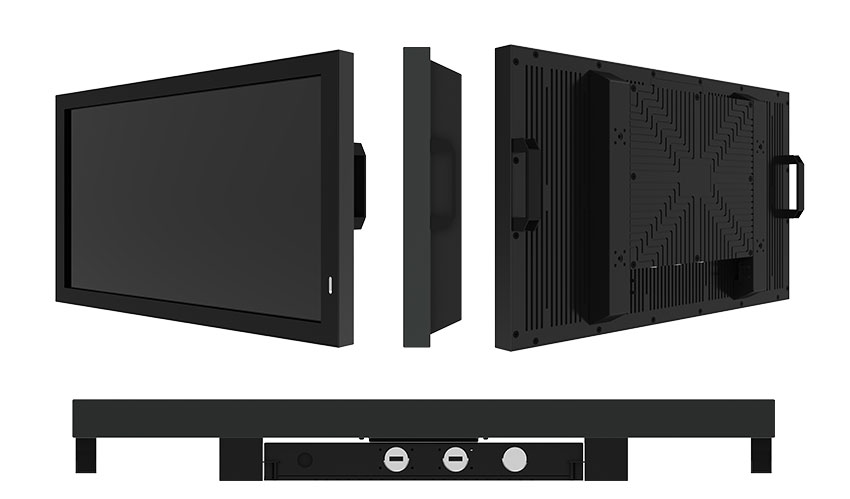

32 Inch Maintenance Free Outdoor Digital Display
RisingStar® 32 inch RS320HNX01-A01-BK sunlight readable. 2000 nits, Hi-Tni for 24/7 outdoor.
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Sample Order
1 Unit MOQ
Bulk Order
10+ Units
Tiered Discounts
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Key Features
High Brightness 2500 nits
LED Backlight
Sunlight Readable
Automatic Brightness Adjustment via Light Sensor
LCD Blacking Defect Free
Low Power Consumption
Backlight MTBF: 50,000 hours
Specifications
| Item | Details |
|---|---|
| Model Name | RS320HNX01-A01-BK |
| Screen Size | 32" |
| Display Area (mm) | 698.4(W) × 392.6(H) mm |
| Brightness | 2500 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Response Time (Typical) | 10 ms (Tr/Td) |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Display Colors | 16.7M |
| Operating System | Android 11 (Optional) |
| RAM | 4G (Optional) |
| ROM | 32G (Optional) |
| Speaker | 5W × 1 |
| Glass | 5 mm Anti-Reflection Glass, IK10 |
| Touch Type | Capacitive Touch, 10-point (Optional) |
| Network | Optional (WiFi / Ethernet / 4G) |
| Input Power | AC 100–240V |
| Power Consumption | <150W |
| Cooling System | Passive Heat Dissipation (Fanless) |

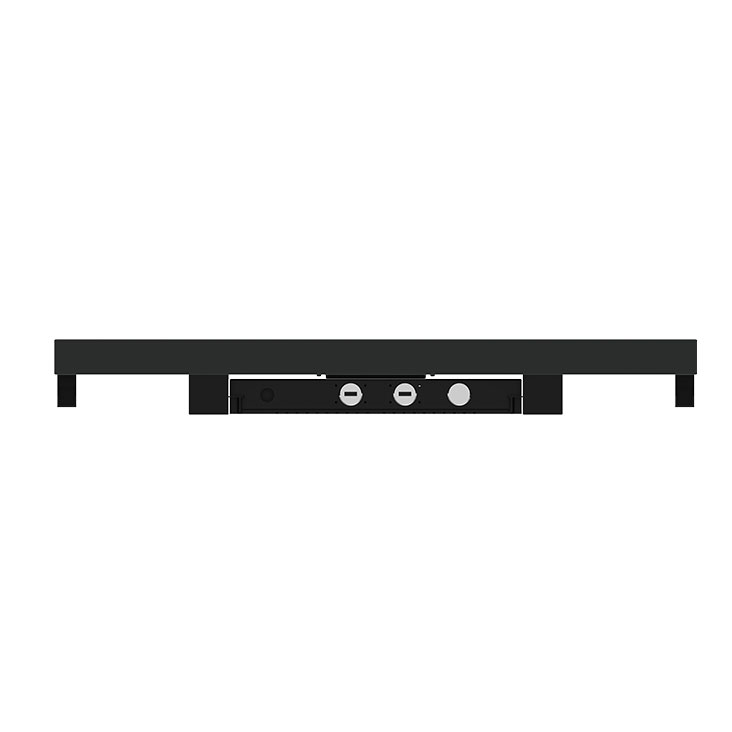

| Input Interface | Optional (HDMI ×1, RJ45 ×1, USB ×2, AC ×1) |
| Dimensions (mm) | 770.5 × 465.5 × 90 mm |
| Mounting | 400 × 200 mm, 4-M8, Max Depth 15 mm |
| Weight (Net) | TBD |
| Ingress Protection | IP66 |
| Shell Color | Black |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Specifications
| Item | Details |
|---|---|
| Model Name | RS320HNX01-A01-BK |
| Screen Size | 32" |
| Display Area (mm) | 698.4(W) × 392.6(H) mm |
| Brightness | 2500 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Response Time (Typical) | 10 ms (Tr/Td) |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Display Colors | 16.7M |
| Operating System | Android 11 (Optional) |
| RAM | 4G (Optional) |
| ROM | 32G (Optional) |
| Speaker | 5W × 1 |
| Glass | 5 mm Anti-Reflection Glass, IK10 |
| Touch Type | Capacitive Touch, 10-point (Optional) |
| Network | Optional (WiFi / Ethernet / 4G) |
| Input Power | AC 100–240V |
| Power Consumption | <150W |
| Cooling System | Passive Heat Dissipation (Fanless) |
| Input Interface | Optional (HDMI ×1, RJ45 ×1, USB ×2, AC ×1) |
| Dimensions (mm) | 770.5 × 465.5 × 90 mm |
| Mounting | 400 × 200 mm, 4-M8, Max Depth 15 mm |
| Weight (Net) | TBD |
| Ingress Protection | IP66 |
| Shell Color | Black |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
RS320HNX01-A01-BK
32 inch high brightness display
32 inch sunlight readable LCD
High brightness display
Sunlight readable display
Outdoor waterproof display
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
