55 Inch High Brightness Digital Signage Window Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Full Specifications
| Item | Description |
|---|---|
| Model Name | RS550MNX02D01-BK |
| Screen Size | 55" |
| Display Area (mm) | 1209.6(W) × 680.4(H) mm |
| Brightness | 3500 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Response Time (Typical) | 6 ms (Tr/Td) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Display Colors | 16.7M |
| OS | N/A |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC100–240V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Input Interface | PC Audio In ×1, Earphone Out ×1, DVI ×1, VGA ×1, HDMI ×1, AC In ×1 |
| Dimensions (mm) | 1234.6 × 705.4 × 50 mm |
| Mounting | 400 × 400 mm, 4-M8 (Max Depth = 10 mm) |
| Weight (Net) | TBD |
| IP (Ingress Protection) | N/A |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
55” 2000 nits High Brightness Window Facing Display
In today’s retail and hospitality sectors, window displays play a crucial role in drawing attention from passers-by. \r\n Yet ordinary screens quickly lose visibility under direct sunlight, making campaigns ineffective during peak hours. \r\n RisingStar’s 55-inch 2000 nits Window Facing Display is engineered to overcome this challenge, delivering \r\n clear, vibrant, and sunlight-readable content that ensures your promotions remain impactful all day long.

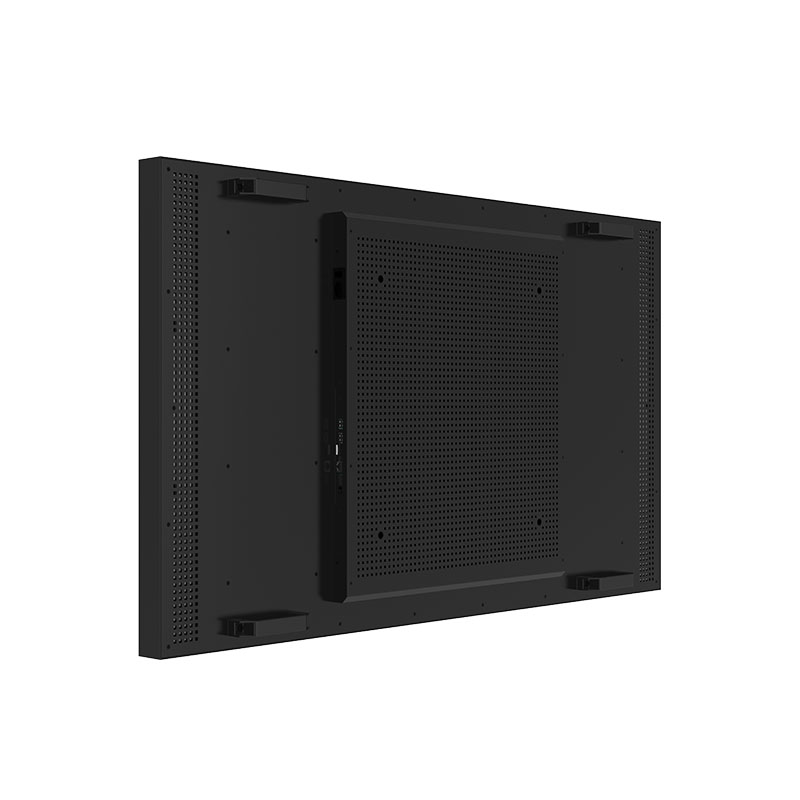

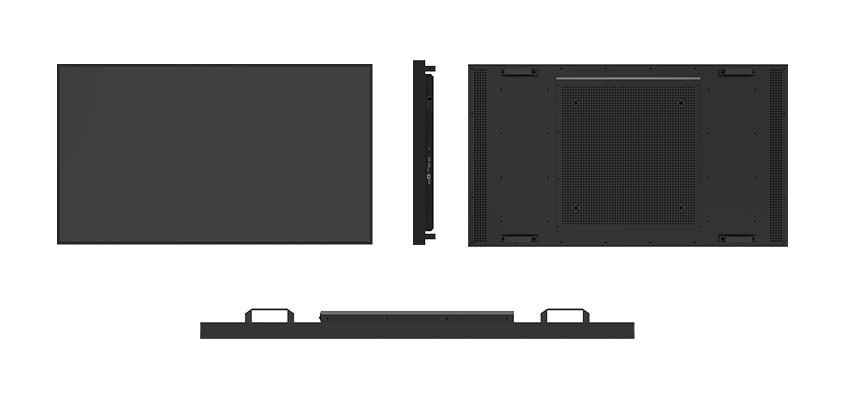

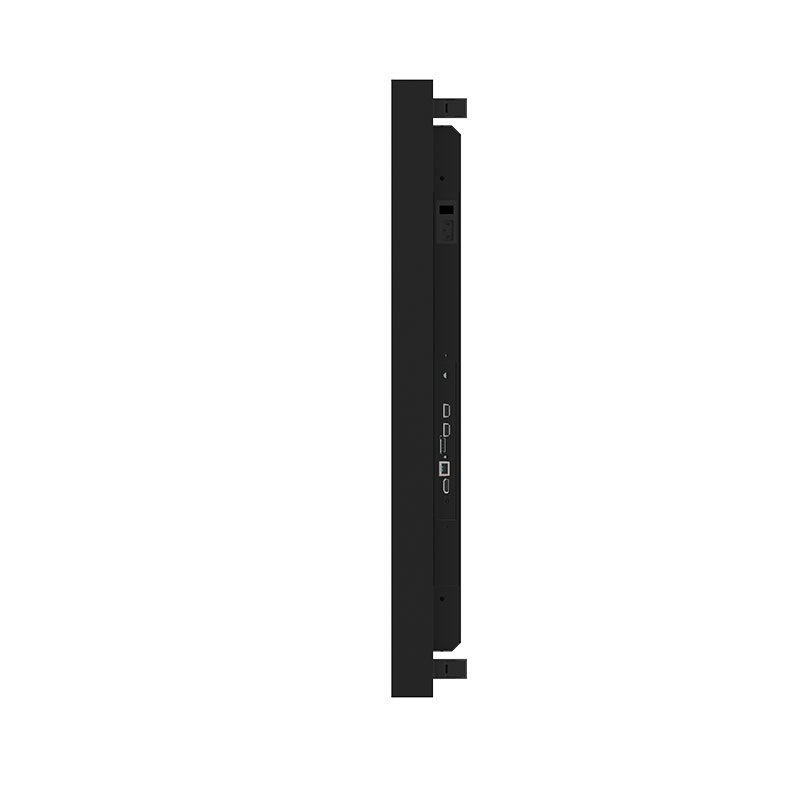

RisingStar product images

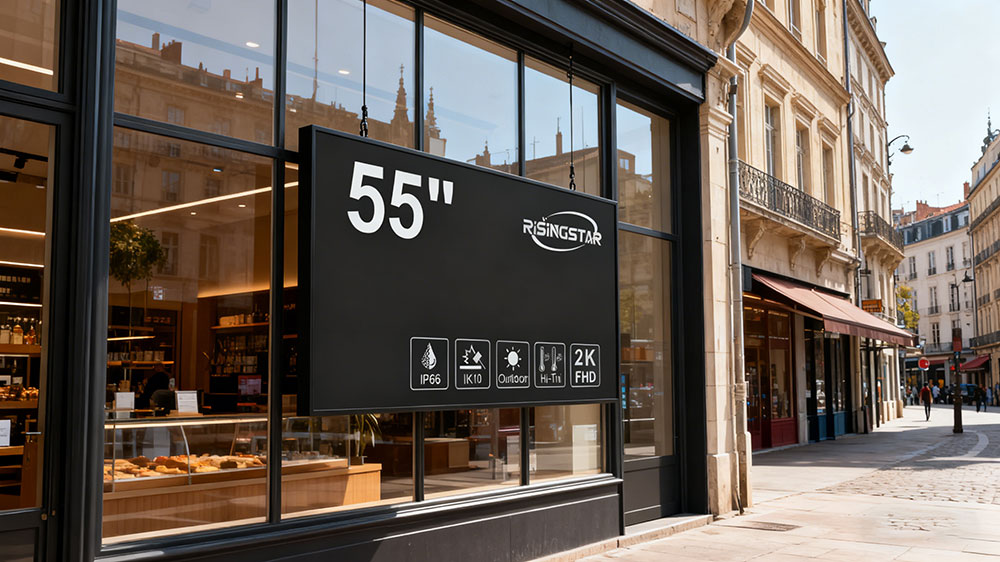

Application examples

Why Choose a Window Facing Display?
Unlike conventional indoor monitors, a window facing display is specifically designed for storefronts and high-ambient \r\n light environments. With 2000 nits brightness, adaptive light sensors, and anti-blackening technology, \r\n it maintains image clarity where traditional displays fail. This technology is widely used in shop windows, car \r\n dealerships, banks, hotels, and showrooms, transforming the window into a powerful digital signage platform.
Core Technology & Engineering
Ultra-High Brightness: 2000 nits ensures content is sunlight readable even at noon under direct exposure.
Anti-Blackening Panel: High-Tni LCD technology prevents panel darkening at surface temperatures up to 110 °C.
Advanced Backlight & Thermal Design: Aluminum structure with optimized heat dissipation keeps long-term brightness stable.
Automatic Brightness Adjustment: Built-in light sensors dynamically balance brightness and power consumption.
Anti-Reflective Coating: Reduces glare from shopfront glass and ensures visibility for viewers wearing polarized sunglasses.
24/7 Reliability: Rated for 50,000+ hours operation, suitable for continuous retail and transportation use.
Applications & Case Examples
Window facing displays are proven to increase customer engagement by up to 60% compared with static posters \r\n (Source: Statista). Retailers worldwide deploy high \r\n brightness signage to showcase promotions, video ads, and brand campaigns directly to street audiences.
Retail: Fashion boutiques and shopping malls use 2000-nits displays to keep visuals striking during sunny hours.
Automotive Showrooms: Enhance car promotions visible from the street to increase foot traffic.
Hospitality: Hotels and restaurants use window screens for events, menus, and branding campaigns.
Banking & Telecom: Promote services and offers through glass facades where customers can’t miss them.
Technical Specifications (Key Data)
High brightness 3500nits
Ultra high contrast: 1000:1
Sunlight Viewable Image
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: 50,000 hours
Specifications
| Item | Description |
|---|---|
| Model Name | RS550MNX02D01-BK |
| Screen Size | 55" |
| Display Area (mm) | 1209.6(W) × 680.4(H) mm |
| Brightness | 3500 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Response Time (Typical) | 6 ms (Tr/Td) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Display Colors | 16.7M |
| OS | N/A |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC100–240V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Input Interface | PC Audio In ×1, Earphone Out ×1, DVI ×1, VGA ×1, HDMI ×1, AC In ×1 |
| Dimensions (mm) | 1234.6 × 705.4 × 50 mm |
| Mounting | 400 × 400 mm, 4-M8 (Max Depth = 10 mm) |
| Weight (Net) | TBD |
| IP (Ingress Protection) | N/A |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Installation & Maintenance Tips
For best results, position the display close to the window glass to minimize light loss. Ensure adequate ventilation \r\n or use the integrated thermal design in enclosed shopfronts. Routine cleaning with non-abrasive materials keeps \r\n the screen crystal clear. The system supports remote management for brightness adjustment and content updates, \r\n reducing maintenance costs.
FAQ – Common Questions
What does 2000 nits mean? – It refers to screen brightness. At 2000 nits, content remains visible in direct sunlight, unlike typical indoor monitors (250–350 nits).
Can this display run 24/7? – Yes. It is engineered for continuous operation with thermal protection and industrial-grade components.
Is dual-side window display available? – Optional models support dual-sided display: outward (2000 nits) and inward (1000 nits).
How is power consumption optimized? – Adaptive light sensors reduce brightness at night, lowering energy use while extending panel life.
What certification is available? – CE, RoHS, and ISO certified for safety and reliability.
Trust & Certifications
RisingStar displays are tested to industrial standards for brightness stability, thermal reliability, \r\n and energy efficiency. With ISO9001 quality management and CE/RoHS compliance, our window facing \r\n solutions are trusted by retailers and integrators across Europe, North America, and Asia.
Related Solutions
Request a Quote
Ready to transform your storefront into a high-impact communication channel? \r\n Contact us today for technical consultation, pricing, or custom solutions.
Tel/WhatsApp: +86 15889469208 | Contact Form
OEM / Customized Services
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
