32" Ultra High Brightness LCD Screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

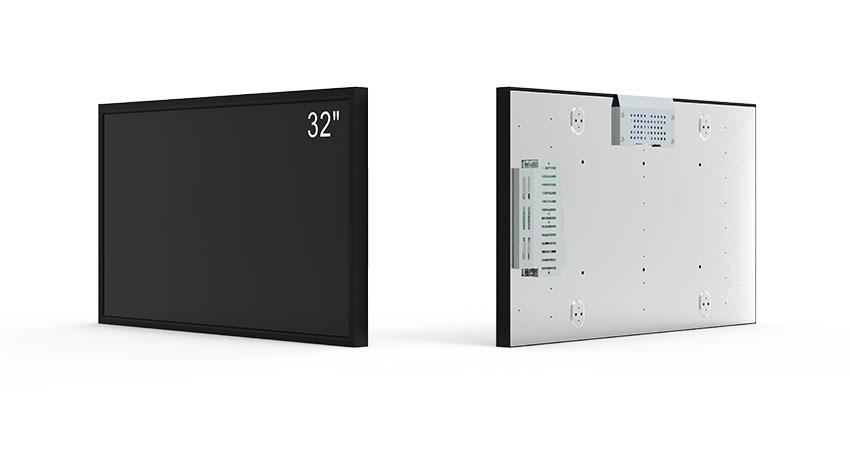

32" High Brightness LCD Display – All Models (RisingStar)
Normal Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS320ENT-ND20 | 2000 | 1920 × 1080/3840 × 2160 |
| RS320ENT-ND25 | 2500 | 1920 × 1080/3840 × 2160 |
| RS320ENT-ND30 | 3000 | 1920 × 1080/3840 × 2160 |
| RS320ENT-ND35 | 3500 | 1920 × 1080/3840 × 2160 |
| RS320ENT-ND40 | 4000 | 1920 × 1080/3840 × 2160 |
| RS320ENT-ND45 | 4500 | 1920 × 1080/3840 × 2160 |
| RS320ENT-ND50 | 5000 | 1920 × 1080/3840 × 2160 |
32" Industrial & Outdoor High-Brightness TFT-LCD Module Specifications
| Specification | Details |
|---|---|
| Panel Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 × 2160, UHD, 137 PPI, RGB Vertical Stripe Pixel Layout |
| Display Area | 708.48 × 398.52 mm |
| Visible Size | 714.48 × 404.52 mm |
| Surface Treatment | Anti-Glare (Matte) |
| Brightness | 2000 ~ 5000 nits |
| Contrast Ratio | 1350:1 (Typ.) [Transmissive] |
| Optical Mode | AHVA, Normally Black, Transmissive |
| Viewing Angle | 89° / 89° / 89° / 89° (Left/Right/Up/Down, CR≥10) |
| Response Time | 8/10 ms (Typ., Tr/Td) |
| Color Support | 1.07B colors, 100% Adobe RGB |
| Backlight Type | WLED, 30,000 hours, with LED Driver |
| Weight | 4.63 ± 0.46 kg |
| Refresh Rate | 60 Hz (standard) 120 Hz (with MEMC for 60 Hz input) 120 Hz panel + 120 Hz backlight 240 Hz (60 Hz input) |
| Signal Interface | V-by-One, 8 lanes, 51 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Screen Series / Technology | IPS Hard-Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft-Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
Applications
This 32" high-brightness industrial LCD module is ideal for outdoor and industrial applications where strong sunlight readability and high image quality are required, such as:
Outdoor digital signage & billboards
Passenger information displays (bus, metro, railway)
Industrial control panels & monitoring
EV charging stations & fuel dispensers
Outdoor kiosks and interactive terminals
Retail and commercial advertising displays
Its ultra-high brightness, wide viewing angle, full Adobe RGB color coverage, and robust WLED backlight make it perfect for environments demanding durability and high visibility.
| Specification | Details |
|---|---|
| Panel Size | 32.0" |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 × 2160, UHD, 137 PPI, RGB Vertical Stripe Pixel Layout |
| Display Area | 708.48 × 398.52 mm |
| Visible Size | 714.48 × 404.52 mm |
| Surface Treatment | Anti-Glare (Matte) |
| Brightness | 2000 – 5000 nits |
| Contrast Ratio | 1350:1 (Typ.) [Transmissive] |
| Optical Mode | AHVA, Normally Black, Transmissive |
| Viewing Angle | 89° / 89° / 89° / 89° (Left/Right/Up/Down, CR≥10) |
| Response Time | 8/10 ms (Typ., Tr/Td) |
| Color Support | 1.07B colors, 100% Adobe RGB |
| Backlight Type | WLED, 30,000 hours, with LED Driver |
| Weight | 4.63 ± 0.46 kg |
| Refresh Rate | 60 Hz (standard) 120 Hz (with MEMC for 60 Hz input) 120 Hz panel + 120 Hz backlight 240 Hz (60 Hz input) |
| Signal Interface | V-by-One, 8 lanes, 51 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
