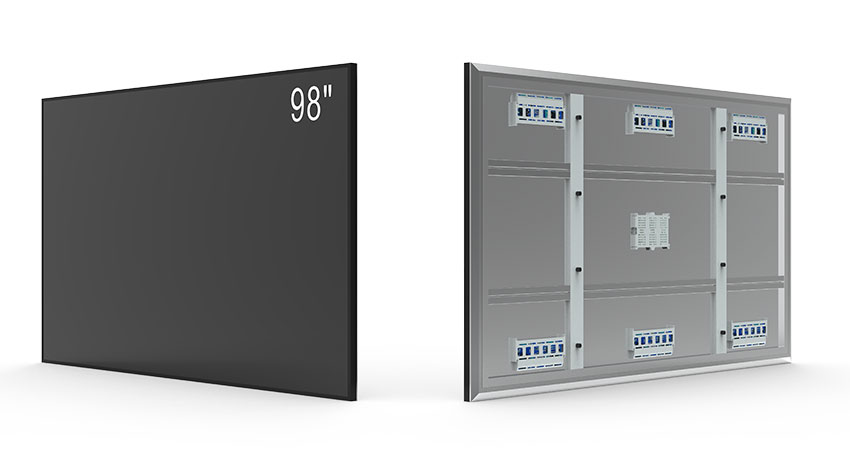

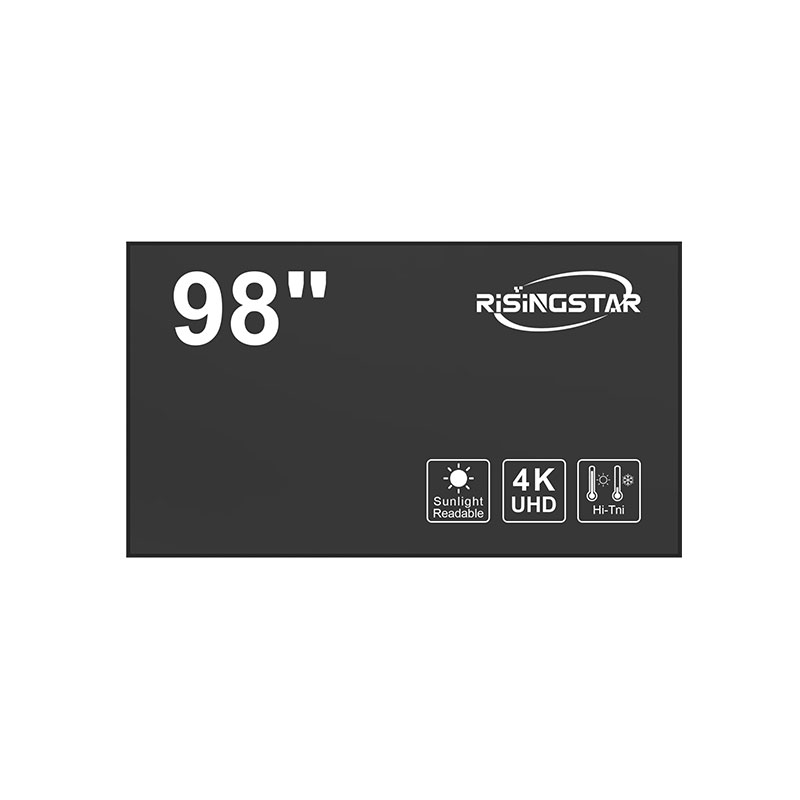

98" Ultra High Brightness TFT/IPS LCD Screen
| Brand | RisingStar |
| Model name | RS980ENT-ND50 |
| Screen size | 98" |
| Screen type | Ultra High Brightness |
| Resolution | 3840 (RGB) × 2160, UHD, 45 PPI, RGB Vertical Stripe |
| Brightness | Brightness can be customized from 2000 to 5000. |
98" High Brightness LCD Display – All Models (RisingStar)
Normal Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS980ENT-ND20 | 2000 | 3840×2160 |
| RS980ENT-ND25 | 2500 | 3840×2160 |
| RS980ENT-ND30 | 3000 | 3840×2160 |
| RS980ENT-ND35 | 3500 | 3840×2160 |
| RS980ENT-ND40 | 4000 | 3840×2160 |
| RS980ENT-ND45 | 4500 | 3840×2160 |
| RS980ENT-ND50 | 5000 | 3840×2160 |
98-Inch a-Si TFT-LCD Panel Specifications
| Feature | Specification |
|---|---|
| Panel Size | 98" |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD, 45 PPI, RGB Vertical Stripe |
| Display Area | 2158.85 (W) × 1214.35 (H) mm |
| Viewable Area | - |
| Surface Treatment | Anti-Glare / Matte (Haze 25%) |
| Brightness | 2000 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 89°/89°/89°/89° (Left/Right/Top/Bottom, Typ., CR ≥ 10) |
| Viewing Direction | Full Viewing Angle |
| Response Time | 8 ms (G to G, Typ.) |
| Color Depth | 1.07B, 74% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED driver |
| Operation Frequency | 60Hz (Built-in MEMC supports 120Hz or 240Hz input modes) |
| Signal Interface | V-by-One, 8 lanes, 51 pins |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Panel Weight | 61.0 kg (Typ.) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Panel Applications | Digital Signage |
Notes:
Panel Technology: This panel uses ADS (Advanced Super Dimension Switch) technology from the IPS hard-screen family, offering full viewing angles and stable color reproduction. It supports various IPS-type modes (AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich).
High Brightness: With brightness up to 5000 nits, it is suitable for sunlight-readable applications.
Long Lifespan: WLED backlight ensures up to 50,000 hours of reliable operation.
Wide Viewing Angles: 89° in all directions ensures consistent image quality from multiple viewing positions.
Typical Applications

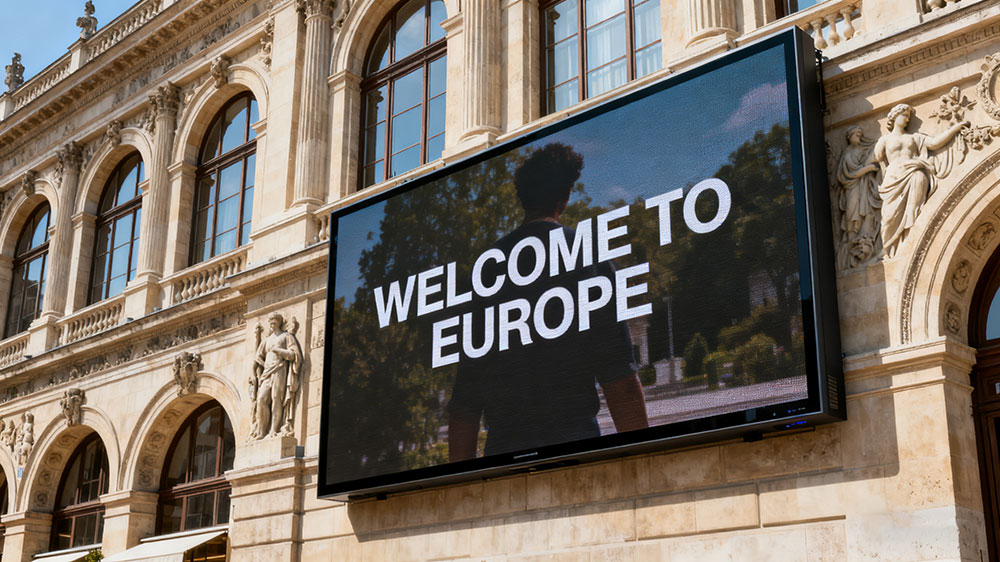

Outdoor and indoor digital signage for malls, airports, and public transportation hubs.
Large-format window-facing displays for retail storefront advertising.
Control rooms and command centers requiring high-resolution, high-brightness panels.
Information kiosks in stations or exhibition centers.
Interactive displays for public spaces when paired with touch or interactive overlays.
98-Inch a-Si TFT-LCD Panel Specifications
| Feature | Specification |
|---|---|
| Panel Size | 98" |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD, 45 PPI, RGB Vertical Stripe |
| Display Area | 2158.85 (W) × 1214.35 (H) mm |
| Viewable Area | - |
| Surface Treatment | Anti-Glare / Matte (Haze 25%) |
| Brightness | 2000 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 89°/89°/89°/89° (Left/Right/Top/Bottom, Typ., CR ≥ 10) |
| Viewing Direction | Full Viewing Angle |
| Response Time | 8 ms (G to G, Typ.) |
| Color Depth | 1.07B, 74% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED driver |
| Operation Frequency | 60Hz (Built-in MEMC supports 120Hz or 240Hz input modes) |
| Signal Interface | V-by-One, 8 lanes, 51 pins |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Panel Weight | 61.0 kg (Typ.) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Panel Applications | Digital Signage |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
