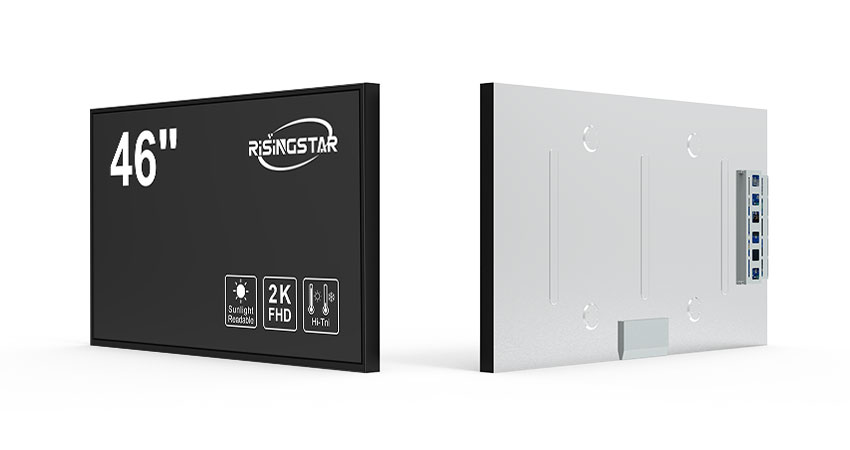

46" Industrial Ultra High Brightness LCD Display Panel
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
46" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS460ENT-GD20 | 2000 | 1920×1080 / 3840×2160 |
| RS460ENT-GD25 | 2500 | 1920×1080 / 3840×2160 |
| RS460ENT-GD30 | 3000 | 1920×1080 / 3840×2160 |
| RS460ENT-GD35 | 3500 | 1920×1080 / 3840×2160 |
| RS460ENT-GD40 | 4000 | 1920×1080 / 3840×2160 |
| RS460ENT-GD45 | 4500 | 1920×1080 / 3840×2160 |
| RS460ENT-GD50 | 5000 | 1920×1080 / 3840×2160 |
Specification
| Parameter | Specification |
|---|---|
| Panel Size | 46.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 47 PPI, RGB vertical stripe |
| Active Area (W×H) | 1018.08 × 572.67 mm |
| Visible Area (W×H) | 1024.5 × 579.1 mm |
| Brightness | 2000 ~ 5000 nits |
| Viewing Angle (Typ., CR≥10) | 85/85/85/85 (Left/Right/Up/Down) |
| Viewing Direction | Full View Angle |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Refresh Rate | 60Hz 120Hz (60Hz input, built-in MEMC) 120Hz+120Hz (panel+backlight) 240Hz (60Hz input, built-in MEMC) |
| Weight (Typ.) | 11.0 kg |
| Surface Treatment | Anti-glare (Haze 28%) |
| Contrast Ratio (Typ., Transmissive) | 4000:1 |
| Operating Mode | AMVA3, normally black, transmissive IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time (Typ., G to G) | 8 ms |
| Backlight Type | WLED, 50,000 hrs, with LED driver |
| Touch Screen | Optional |
| Application | Digital Signage, Outdoor High-Brightness Displays |
| Signal Interface | LVDS (2 ch, 8/10-bit), 51 pins, terminal |
| Driving Voltage (Typ.) | 12.0 V |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Explanation and Application
Explanation:
This 46-inch a-Si TFT-LCD module offers full HD resolution with high brightness up to 5000 nits, making it suitable for both indoor and outdoor applications. The wide viewing angle ensures consistent image quality from all directions, while AMVA3 technology provides deep contrast (4000:1 typical) and vibrant colors (16.7M/1.07B colors, 72% NTSC). The panel supports multiple refresh rates including 120Hz and MEMC features for smoother motion display. Its anti-glare coating (Haze 28%) reduces reflections under bright sunlight. WLED backlight ensures long lifespan (50,000 hrs) and energy efficiency.
Applications:
Outdoor digital signage and advertising displays
High-brightness monitors for transportation hubs (bus stations, metro stations)
Information displays for retail or commercial areas
Interactive kiosks or touch-enabled displays
Industrial and professional visual solutions requiring wide viewing angles and high contrast
| Parameter | Specification |
|---|---|
| Panel Size | 46.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 47 PPI, RGB vertical stripe |
| Active Area (W×H) | 1018.08 × 572.67 mm |
| Visible Area (W×H) | 1024.5 × 579.1 mm |
| Brightness | 2000 ~ 5000 nits |
| Viewing Angle (Typ., CR≥10) | 85/85/85/85 (Left/Right/Up/Down) |
| Viewing Direction | Full View Angle |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Refresh Rate | 60Hz 120Hz (60Hz input, built-in MEMC) 120Hz+120Hz (panel+backlight) 240Hz (60Hz input, built-in MEMC) |
| Weight (Typ.) | 11.0 kg |
| Surface Treatment | Anti-glare (Haze 28%) |
| Contrast Ratio (Typ., Transmissive) | 4000:1 |
| Operating Mode | AMVA3, normally black, transmissive IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time (Typ., G to G) | 8 ms |
| Backlight Type | WLED, 50,000 hrs, with LED driver |
| Touch Screen | Optional |
| Application | Digital Signage, Outdoor High-Brightness Displays |
| Signal Interface | LVDS (2 ch, 8/10-bit), 51 pins, terminal |
| Driving Voltage (Typ.) | 12.0 V |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
