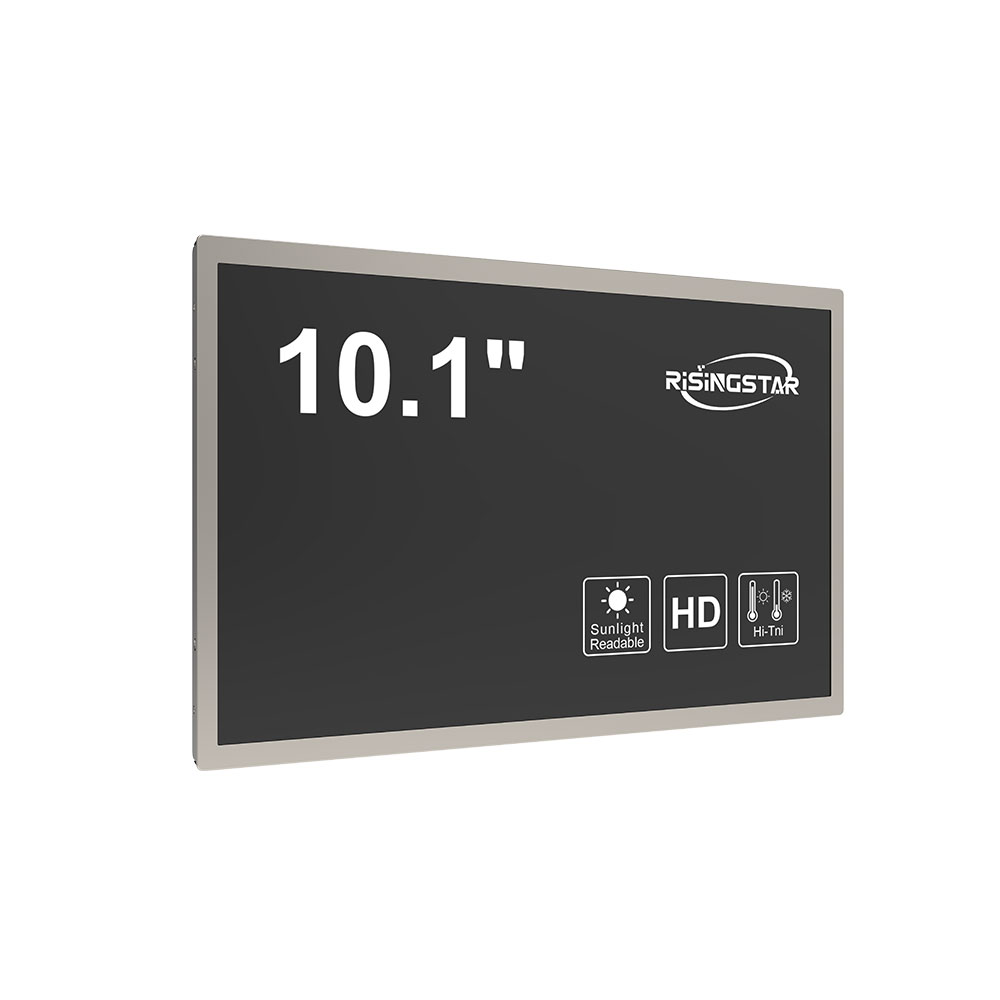

10.1 Inch 1000nits Tft High Brightness Screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
10.1 Inch Ultra Bright 1000nits Tft Color High Brightness Screen 1000 Nits Lcd Monitor Display
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: OEM/ODM are available based on your requirements.
B:In order to support different customers, we are able to supply:
(1) Bare LCD panel: panel with LVDS interface
(2) Open frame LCD monitor: Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI, USB...)
(3) Complete monitor: Panel+PSU+AD board+network board(optional)+fan system+temperature control board+housing
(4)Complete outdoor digital signage: customized. eg: touch function, optical bonding, IP55/IP65 etc.
4. Q: What brand of screen do you use?
A: Original LG/SAMSUNG/AUO/BOE screen, we can guarantee each display will pass through strict quality inspection.
5.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
6.Q: When will you delivery?
A: High brightness outdoor lcd panel sample order shipped in 3days, bulk order shipped within 2 weeks.
Size | 10.1 inch |
Panel type | a-Si TFT-LCD |
View area | 220.36 × 139.1 mm(H*V) |
Dispaly area | 216.96 × 135.6 mm(H*V) |
Outline size | 229.46 × 149.2 × 4.96 mm (H*V*D) |
Dispaly mode | IPS,Normally black,Transmissive |
Drive-screen Voltage | 3.3V (Typ) |
Resolution | 1280*800 , WXGA |
Display ratio | 16:9 |
Display brightness | 500- 5000cd/m2 |
Constrast Ratio | 1200:1 |
View angle | 89/89/89/89 |
Display color | 6.7M ,72% |
Working freqyency | 60Hz |
Surface Treatment | Haze ,Hard coating(3H) |
Light source type | WLED |
Backlight lifetime | up to 50,000 hoursrs |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
