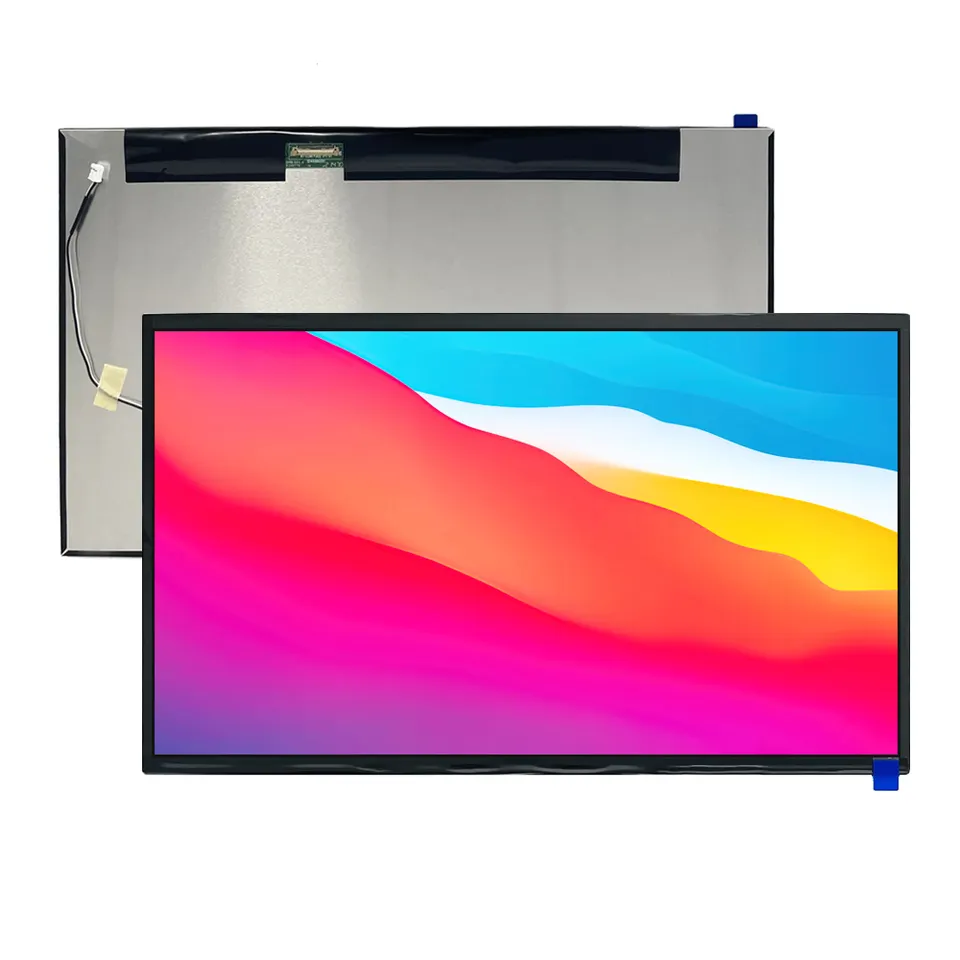

RS133HAN-GE10 is a 13.3" diagonal a-Si TFT-LCD display panel product , 1000 nits high brightness,It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C, this model be applied to Industrial, Medical Imaging, Gaming, outdoor and indoor using.
RS133HAN-GE10 is a 13.3" diagonal a-Si TFT-LCD display panel product , 1000 nits high brightness, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C, this model be applied to Industrial, Medical Imaging, Gaming, outdoor and indoor using.
Ultra High-brightness and durable design, the best tool for real-time publicity, 1000 nits brightness
High bright outdoor display panel, the image is still vivid and clear in direct sunlight. According to the environmental space, it can be used vertically or horizontally, meeting multiple needs such as product promotion, advertising and real-time convenience at one time. With the characteristics of sturdiness, durability, high efficiency and stability, it is suitable for various outdoor and semi-outdoor places such as transportation, department store retail, commodity advertising, catering and drive-thru.
Hi-tni Blackening Defect Free, operating temperature range of -20 ~ 110°C
A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged.
Most residential and commercial LCD panel exposed to directly sunlight will blacken or result in isotropic failure. RisingLCD 13.3 inch hi-tni high brightness LCD IS equipped with AUO high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Full viewing angles, 89/89/89/89 (Typ.)(CR≥10)
Thanks to using a matrix with IPS/MVA technology, our high brightness display is readable from any angle. There is no gray scale inversion effect which is a normal feature of popular TN matrixes. A decrease in contrast when increasing the viewing angle is also significantly lower. Superior image quality and color depth at 178 degree ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.
|Screen Diagonal||13.3 inch|
|Active Area||293.472(W)×165.078(H) mm|
|Pixels||1920(RGB)×1080, FHD, 166PPI|
|Physical Size||309.7(W)×184.1(H)×10.1(D) mm|
|Pixel Arrangement||R.G.B. Vertical Stripe|
|Display Mode||a-Si TFT-LCD, LCM|
|White Luminance ( Center )||1000 cd/m2 (Typ.) [cd/m2 ]|
|Contrast Ratio||800:1 (Typ.)|
|Optical Response Time||25 (Typ.)(Tr+Td) ms|
|Nominal Input Voltage||3.3V (Typ.)|
|Viewing Angle||89/89/89/89 (Typ.)(CR≥10)|
|Interface Type||LVDS (2 ch, 8/10-bit) , 30 pins Connector|
|Support Color||16.7M/1.07B 100% sRGB|
|Surface Treatment||AHVA, black|
|RoHS Compliance||RoHS Compliance|
|Temperature Range||-20 ~70 °C|
|Storage (Non-Operating)||-20 ~ 70 °C|
Ask a quote for the latest price and one of our team members will respond as soon as possible.
