55 inch 4000 nits high brightness TFT LCD display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

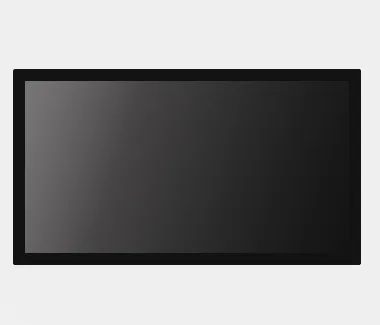

The RS550MNX-02 is 55 inch industrial grade sunlight readable LCD, with high brightness 4000 nits, it produces sharp images, crisp text and lifelike colors.
The LED backlight technology ensures high reliability and low power consumption, blacking defect free, with these specification they are suitable for outdoor application, kiosk, digital signage in retail stores,conference rooms, broadcast studios, public information.
Key Features
** High brightness 4000nits
** Sunlight Readable
** LED Backlight
** Wide Viewing Angle of 178°(H), 178°(V)
** Wide Operation Temperature (-20 ˚C~60˚C)
** LCD Blacking Defect Free (H-Tni 105 ˚C)
** Ultra thinner bezel, 10.5mm thinner.
**BL MTBF: 100,000 hours
Model Name | RS550MNX-02 |
Screen Size | 55” |
Display Area (mm) | 1209.6(H) x 680.4(V) |
Brightness | 4000 cd/m2 |
Resolution | 1920x1080 |
brightness control | Light sensitive dimming, control range 40%-100% |
Aspect Ratio | 16 : 9 |
Contrast Ratio | 1000 : 1 |
Pixel Pitch (mm) | 0.630(H) x 0.630(V) |
Viewing Angle | 178°(H),178°(V) |
Color Saturation (NTSC) | 70% |
Display Colors | 16.7M |
Response Time (Typical) | 14 (Typ.)(Tr/Td) (ms) |
HDMI*1 VGA*1 AUDIO IN*1 HDMI*1DVI*1 DCIN*1 Light Sensation IN*1 | |
shell material | Aluminum profiles, sheet metal black fine sand spraying |
Input Power | AC100-240V |
Power Consumption | 300W |
Radiator System | Intelligent air cooling |
Dimensions (mm) | 1235*705.8 |
Mounting | M8-400x400mm |
Weight (Net) | TBD |
Operating Temperature | -20 ˚C ~ 60 ˚C |
Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
